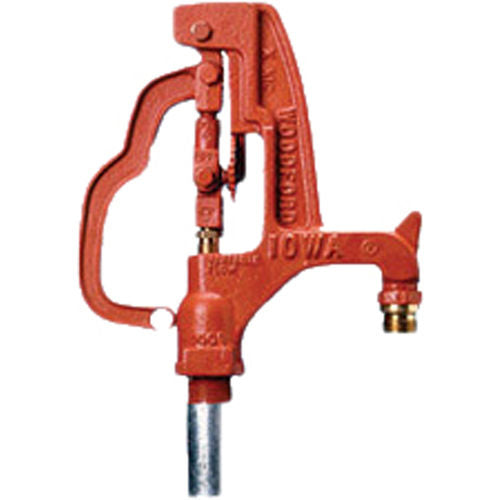

Woodford Y34-7 Freezeless Iowa Yard Hydrant (3/4 in FNPT)

Product Description

The Woodford Y34-7 is a freezeless Iowa yard hydrant designed for outdoor water use including irrigation, filling field spray equipment, cleaning tools, and watering livestock. It has a 7-foot bury depth, a 3/4 in FNPT inlet, and a 1/8 in tapped drain hole below the frost line for automatic draining. The unit includes a corrosion-resistant brass valve body, one-piece cushioned-seal plunger, adjustable lever link, rod guide, graphite packing, and is rated to 125 psi and 120 deg F.

• Freezeless design with 7 ft bury depth and 1/8 in tapped drain hole positioned below the frost line for automatic draining
• 3/4 in FNPT inlet, corrosion-resistant brass valve body, and one-piece variable flow plunger with a cushioned seal
• Steel rod (3/8 in diameter) with rod guide, adjustable link for lever lock tension, graphite packing, flow finder and lock

Product Highlights

Freezeless yard hydrant, 7 ft bury depth, 3/4 in FNPT inlet, automatic drain, 125 psi / 120 deg F rating

Product Information

Standard Information

• Brand: WOODFORD
• Manufacturer Part Number: Y34-7
• Country of Origin: USA

Technical Specifications

• Brand: Woodford
• Manufacturer Part Number: Y34-7
• Model: Y34-7
• Type: Freezeless yard hydrant
• Series: Model Y34
• Bury Depth: 7 ft
• Nominal Size: 3/4 in
• End Style: FNPT
• Inlet: 3/4 in FNPT female
• Pressure Rating: 125 psi
• Temperature Rating: 120 deg F
• Rod Diameter: 3/8 in
• Rod Material: Steel
• Valve Body Material: Brass (corrosion resistant)
• Valve Plunger: One-piece variable flow plunger with cushioned seal
• Drain Hole: 1/8 in tapped national pipe thread (positioned below frost line)
• Packing Material: Graphite packing
• Features: Adjustable link for lever lock tension; rod guide to reduce side pull; flow finder and lock; automatic drain feature
• Country of Origin: USA
• Category: Yard Hydrants
