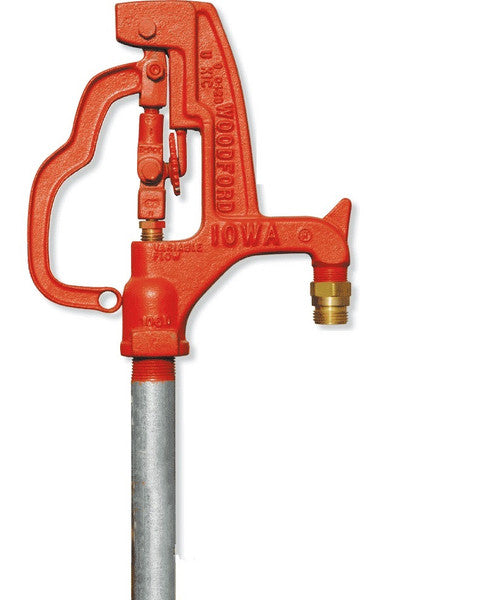

Woodford Y1-6 1x6 FPT Iowa Freezeless Yard Hydrant

Product Description

The Woodford Y1-6 1X6 FPT Iowa Freezeless Yard Hydrant is intended for irrigation purposes and used for filling field spray equipment, cleaning tools and equipment, lawn and garden care, and watering livestock, providing immediate water flow even in sub zero temperatures. It has a 6 ft bury depth and 1 in nominal size with FNPT end style.

• Adjustable link provides easy and positive adjustment of the lever lock tension
• Rod guide eliminates side pull on rod, reduces wear on packing, packing nut and stem
• Flow finder and lock: Simple cam that can be set to automatically obtain the same flow each time or lock against accidental opening

Product Highlights

The Woodford Y1-6 Iowa freezeless yard hydrant features automatic drain to prevent freezing and closes at any flow to prevent wasting water.

Product Information

Standard Information

• Brand: WOODFORD
• Manufacturer Part Number: Y1-6

Technical Specifications

• Bury Depth: 6 ft
• End Style: FNPT
• Nominal Size: 1 in
• Manufacturer: Woodford Manufacturing
• Manufacturer #: Y1-6
• Pressure Rating: 125 psi
• Rod Diameter: 3/8 in
• Rod Material: Steel
• Series: Model Y1
• Temperature Rating: 120 deg F
• Type: Freezeless
• Brand: Woodford Manufacturing
• Domestic/Import: Domestic
