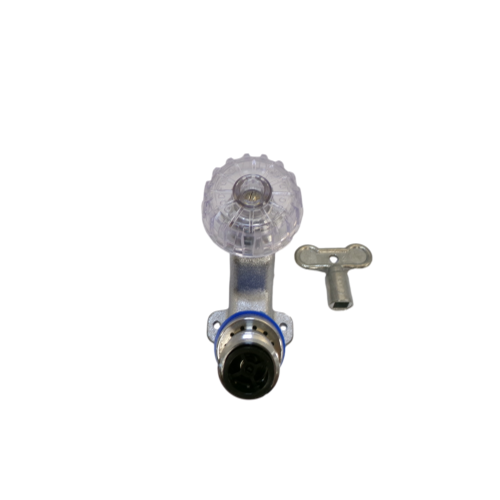

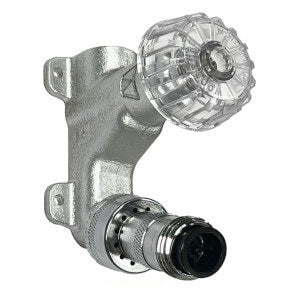

Woodford V26-CH Vert Wall Faucet

Product Description

The WOODFORD V26-CH Vert Wall Faucet is an anti-siphon, vacuum breaker protected wall faucet designed for irrigation purposes in mild climate areas. It mounts directly to a wall or column with a top mount inlet. Designed to blend with modern architecture for installation on or in service stations, custodial services, churches, motels, restaurants, etc.

• EPDM packing prevents leaking.
• Adjustable brass packing nut with deep stem guard.
• Standard “O” size washer valve seat.

Product Highlights

This wall faucet features a chrome finish, ASSE 1052 Model 50HF field-testable backflow preventer, and is suitable for commercial applications.

Product Information

Standard Information

• Brand: WOODFORD
• Manufacturer Part Number: V26-CH
• Country of Origin: USA

Technical Specifications

• Inlet: 1/2"
• Finish: Chrome Plated
• Lead Free: No
• Inlet Type: FNPT
• Anti-Siphon: Yes
• Application: Commercial
• Outlet Size: 3/4"
• Outlet Type: Garden Hose Thread
• Max Temp (F): 120°F
• Max Pressure (PSI): 125
• Inlet Style: 1/2" FPT
• Model: V26
• VACUUM BREAKER - ANTI-SIPHON: NIDEL® Model 50HF with ¾ inch male hose thread ASSE Standard 1052 approved IAPMO® listed
