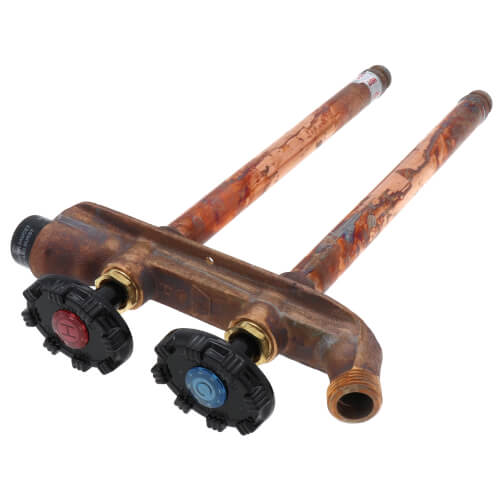

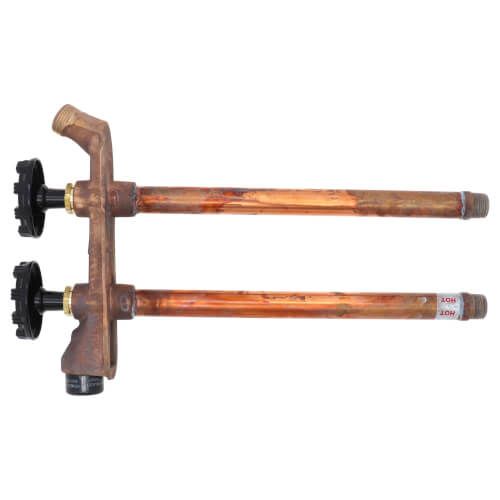

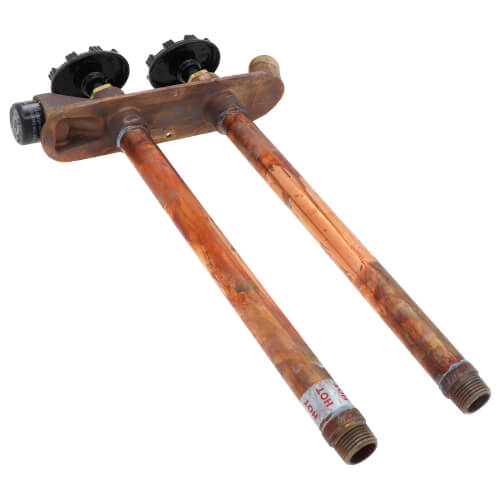

Woodford V22CP-10-BH Model V22 Freezeless Anti-Siphon Hot / Cold Wall Faucet, 1/2 MPT x Sweat Inlet

Product Description

The Woodford V22CP-10-BH is a freezeless anti-siphon hot and cold wall faucet. This faucet is designed for year-round use in outdoor applications. It features separate hot and cold inlet tubes that allow for manual temperature control. The innovative design prevents the faucet from bursting due to freezing temperatures, even if a hose is unintentionally left connected.

• Manufactured for durability with patented pressure relief valves.
• Contains integral backflow protection, eliminating the need for additional vacuum breakers.
• Suitable for residential applications with a maximum temperature of one hundred twenty degrees Fahrenheit.

Product Highlights

This faucet is ideal for irrigation and cleaning needs, functioning effectively regardless of outside temperatures.

Product Information

Standard Information

• Manufacturer: Woodford
• Model: V22CP-10-BH

Technical Specifications

• Inlet Type: Sweat x MNPT
• Max Temperature: 120 degrees Fahrenheit
• Max Pressure: 125 PSI
• Wall Thickness: 10 inches
• Overall Length: 13-3/4 inches
• Weight: 3.5 pounds
• Outlet Size: 3/4 inches
