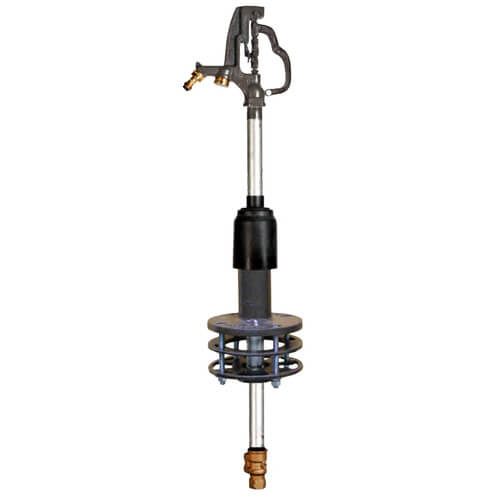

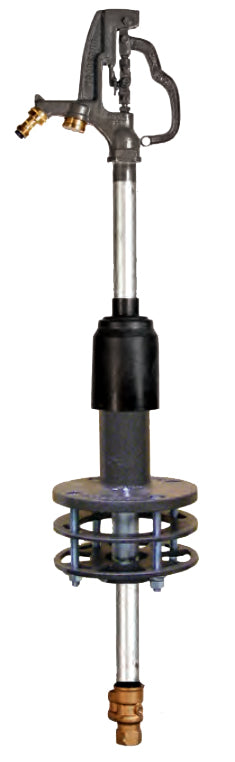

Woodford RHY2-1-MS Model RHY2-MS 1 FPT Non-Freeze Roof Hydrant w/ Dual Check Backflow Preventer 1 Ft. Burial Depth

Product Description

The Woodford RHY2-1-MS is designed for robust irrigation applications on commercial rooftops. This product features a one inch female pipe thread connection and a dual check backflow preventer that protects against backflow during operation. It is suitable for a variety of uses including window washing and cooling tower maintenance.

• Backflow protection with ASSE 1052 double check
• Drainable design helps prevent freezing
• Installation flexibility with a patented mounting system

Product Highlights

This hydrant is equipped with a vented design that allows for easy drainage and installation.

Product Information

Standard Information

• Brand: Woodford
• Category: Roof Hydrants

Technical Specifications

• Hose Connection: Model 50HF with 3/4 hose connection
• Backflow Preventer: ASSE 1052 Listed
• Maximum Working Pressure: 100 PSI
• Maximum Temperature: 120°F
• Inlet Connection: 1 NPT female
• Drain Hole: 1/8 NPT (Must be piped to a drain)
• Overall Length: 48-1/2 inches
• Bury Depth: 1 foot
