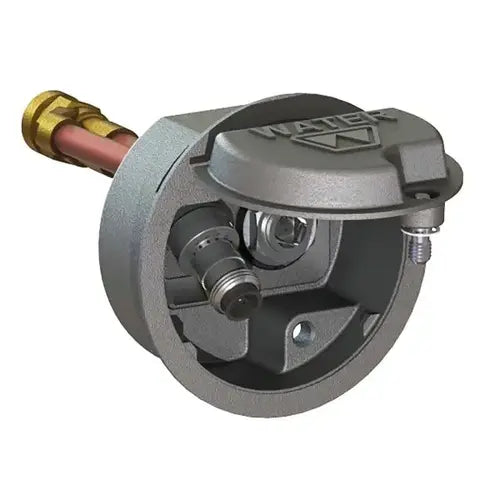

Woodford RB67C-16 Model RB67 16 inches 3/4 inches Copper Water Tube Inlet Freezeless Backflow Preventer Round Box Wall Hydrant

Product Description

The Woodford RB67C-16 Model RB67 is an automatic draining, freezeless wall hydrant with hose connection backflow protection. It is designed for irrigation purposes and blends with modern architecture for installation on various buildings. The hydrant drains as the handle is shut off, even with a hose attached. Overall Length is 20-3/8".

• Features a permanent type brass valve body with hemispherical seating surface.
• Includes a one piece valve plunger that accurately controls both flow and drainage.
• Maximum pressure rating of 125 psi and maximum temperature of 120° F.

Product Highlights

Automatic draining, freezeless wall hydrant with backflow protection for irrigation and commercial applications.

Product Information

Standard Information

• Brand: WOODFORD
• Manufacturer Part Number: RB67C-16
• Country of Origin: USA

Technical Specifications

• ASSE Standard: 1052 approved
• Field Testable: True
• Check Valves: Two Independent Check Valves
• Spray Back: No
• Product Type: Wall Hydrant
• Finish: Chrome
• Wall Thickness: 16"
• Inlet Type: Sweat
• Max Operating Pressure: 125 psi
• Max Temperature: 120°F
• Size: 3/4"
• Lead Free: No
• Anti-Siphon: No
• Application: Commercial
• Manufacturer: Woodford
• Part Number: RB67C-16
• Inlet Style: 3/4” Copper Water Tube
• Additional Information: Model B67, Freezeless Round-Type, 16 in THK Wall
• Body Material: Brass
• Connection Type: Copper
• Dimensions: 6-15/16 in Dia
• Domestic/Import: Domestic
• Lead-Free/Contains Lead: Lead-Free
• Media: Water
• Mounting Type: Wall
• Nominal Size: 3/4 in
• Operator Type: Handle
• Pressure Rating: 125 psi
• Stem Material: Stainless Steel
• Temperature Rating: 120 deg F
• MADE IN THE USA: Yes
• Package Quantity: 1
• UL Listed: No
• Maximum Working Temperature: 120
• AbilityOne: No
• ADA Compliant: No
• UNSPSC: 30181800
• Inlet Size: 3/4 In.
• Material: Brass
• GSA Approved: No
• Maximum Pressure Rating: 125
• TAA/BAA Compliant: Yes
• Length: 16 in.
• Model: RB67
