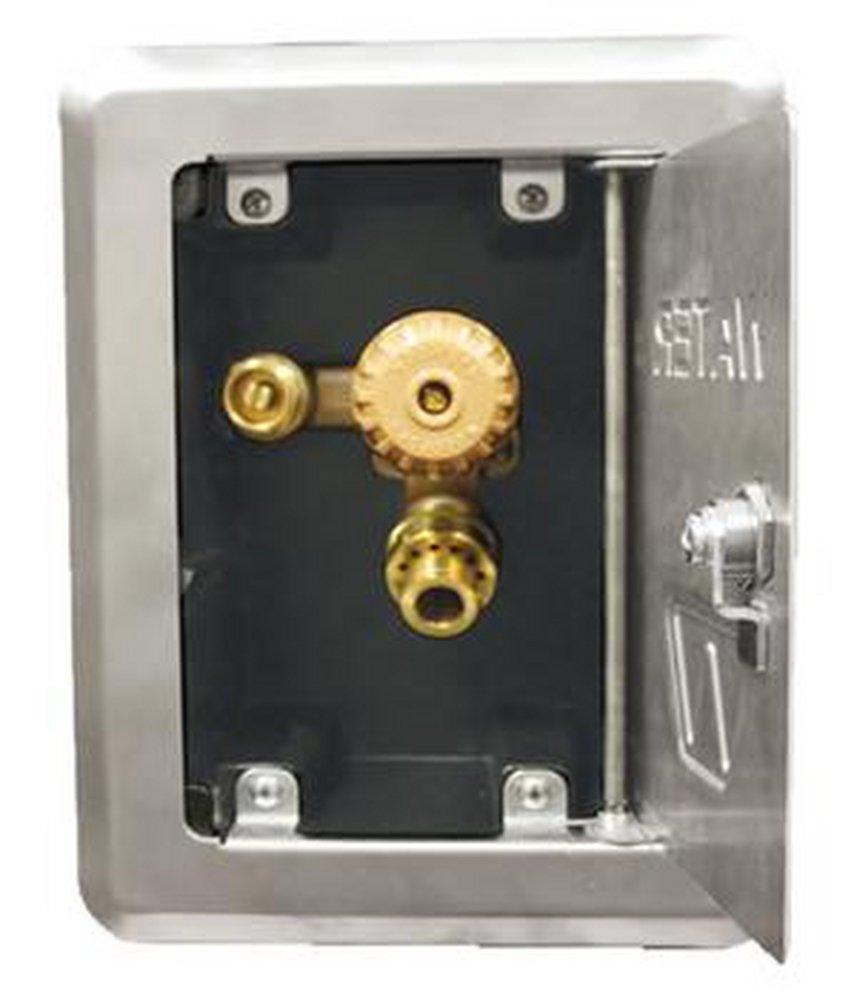

Woodford Manufacturing Company mb224 Mild Climate Integral Water Supply Stop and Modular Box

Product Description

The Woodford MANUFACTURING COMPANY MB224 is a water supply box with an integral water supply stop that allows for servicing of the valve at the hydrant without shutting off the building water supply. It features a modular box system made out of high impact and non-degradable composite material with a replaceable 14 ga 304 stainless steel door & fascia.

• Modular Box System
• Box made out of high impact and non-degradable composite material
• Replaceable 14 Ga 304 Stainless Steel Door & Fascia

Product Highlights

Ideal for irrigation purposes and use in interior or exterior applications where freezing temperatures do not occur. Includes both polycarbonate handle and metal tee key with tamper resistant lock shield.

Product Information

Standard Information

• Brand: WOODFORD MANUFACTURING COMPANY
• Manufacturer Part Number: MB224

Technical Specifications

• Manufacturer: Woodford
• Part Number: MB224
• Inlet: 1/2-14 FPT
• ASSE Standards: ASSE 1011
• Collection: Model MB224
• Color Finish Name: Stainless Steel
• Depth: 3-5/8
• End Connection 1: FPT
• End Connection 2: FPT
• End Connections: FPT
• Handle Material: Polycarbonate
• Height: 10
• IAPMO Listed: Yes
• Lead Law Compliance Level: Not Compliant, Approved for Non-Potable Water Applications
• Material: Red Brass, Composite, Stainless Steel
• Material Type: 304
• Maximum Temperature: 120
• NSF Certified: No
• Pressure - Maximum: 125 psi
• Recommended Valve Application: Commercial, Irrigation, Water
• Sillcock Type: Anti-siphon
• UL Listed: No
• UPC: 671090006304
• Valve Body Material: Red Brass
• Valve Operator: Loose Tee Key
• Valve Seat Material: EPDM
• Valve Size: 1/2 in
• Width: 7-3/4
• Brand: Woodford
• Model: MB224
