Woodford Manufacturing Company 67P-6 Model 67 Freezeless Wall Hydrant

Product Description

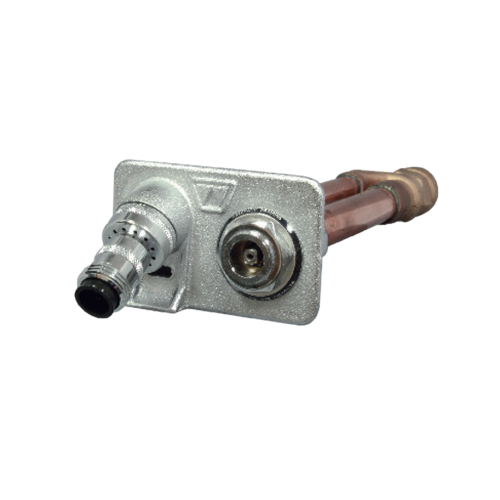

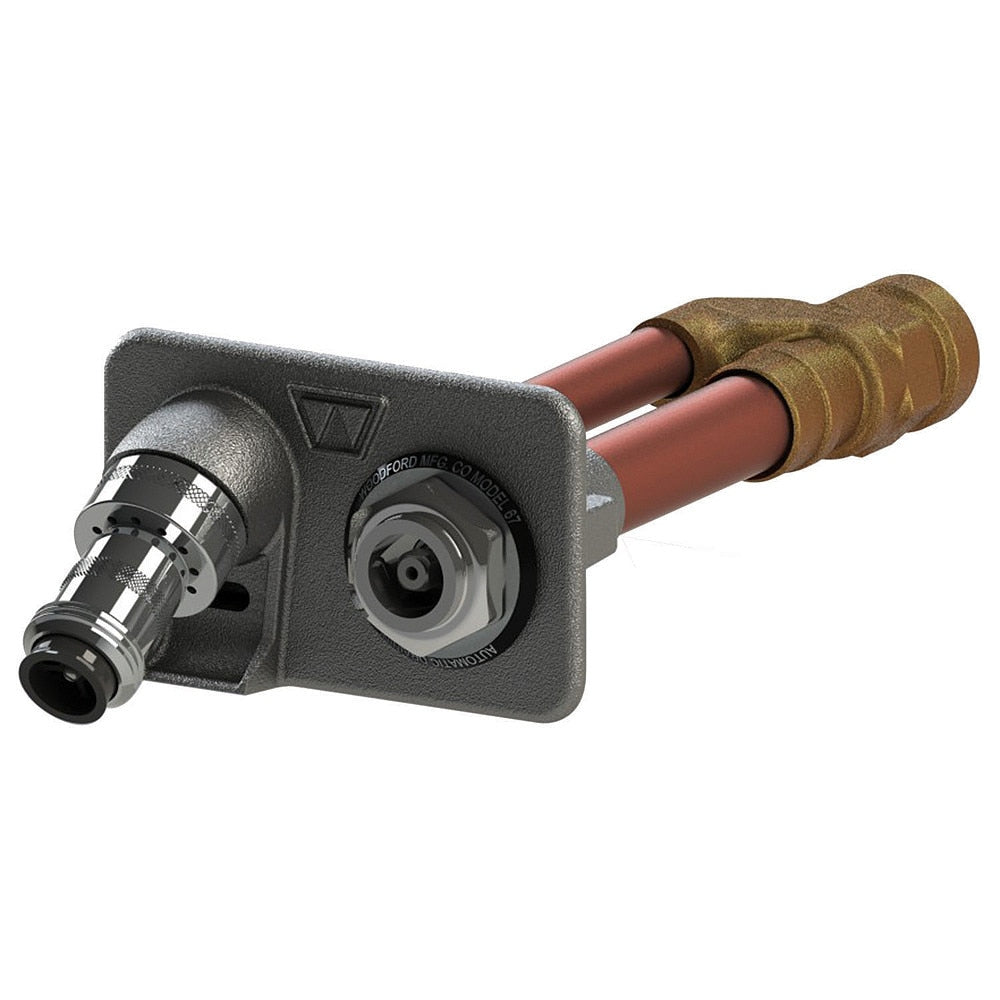

The Woodford Manufacturing Company 67P-6 is a Model 67 freezeless wall hydrant ideal for irrigation and installation on commercial buildings. It features automatic drainage even while a hose is connected, preventing any potential freezing. The design includes a brass valve body with a hemispherical seating surface and a one-piece valve plunger for effective flow and drainage control. The hydrant efficiently drains underneath the nozzle, ensuring safety for the operator.

• Permanent brass valve body enhances durability.
• Includes hardened stainless steel stem for increased resistance.
• Equipped with backflow protection for added safety.

Product Highlights

This hydrant is designed to blend well with modern architecture while providing essential functionality for tasks in restaurants, schools, and other commercial facilities.

Product Information

Standard Information

• Model: 67
• Type: Wall Hydrant

Technical Specifications

• Inlet Style: 3/4 FPT
• Outlet Style: 1/2 FIP
• Inlet Size: 3/4 MIP
• Outlet Size: 1/2 FIP
• Length: 6 inches
• Wall Thickness: 6 inches
• Max Pressure: 125 p.s.i.
• Max Temperature: 120 degrees F
• Finish: Rough Brass
• Weight: 4.6 pounds
• Features: Freezeless, Automatic Draining
