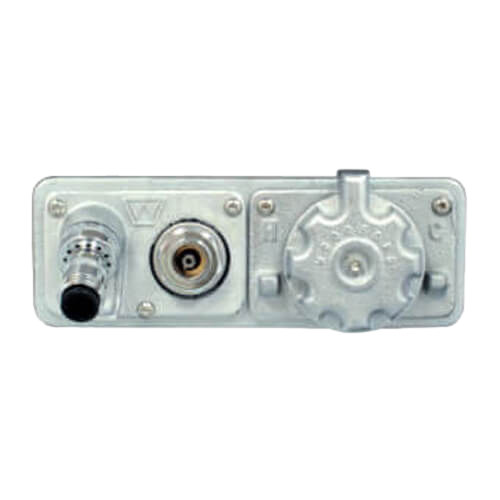

Woodford HC67-CC Hot & Cold Wall Hydrant Mixer Close Coupled

Product Description

The Woodford HC67-CC Hot & Cold Wall Hydrant Mixer is designed for outdoor plumbing in commercial settings. This model features a freezeless design, allowing it to drain automatically when shut off, even with a hose attached. It is suitable for areas where both hot and cold water are required.

• Brass valve body with hemispherical seating.
• Single valve plunger for easy flow and drainage control.
• Water drains away from operator for safety.

Product Highlights

This hydrant offers reliable service for outdoor applications, ensuring smooth operation and safe use.

Product Information

Standard Information

• Product Type: Wall Hydrant
• Wall Thickness: Close Coupled

Technical Specifications

• Inlet Type: FNPT
• Overall Size: 6-11/16 inches
• Max Operating Pressure: 125 psi
• Max Temperature: 120 degrees F
• Size: 3/4 inches
• Lead Free: No
• Finish: Chrome Plated
• Application: Commercial
• ASSE Standard: 1052 approved
• Field Testable: Two Independent Check Valves
• Hot & Cold Inlets: 3/4 inch FPT
• Model: HC67
• Manufacturer: Woodford
• Part Number: HC67-CC
