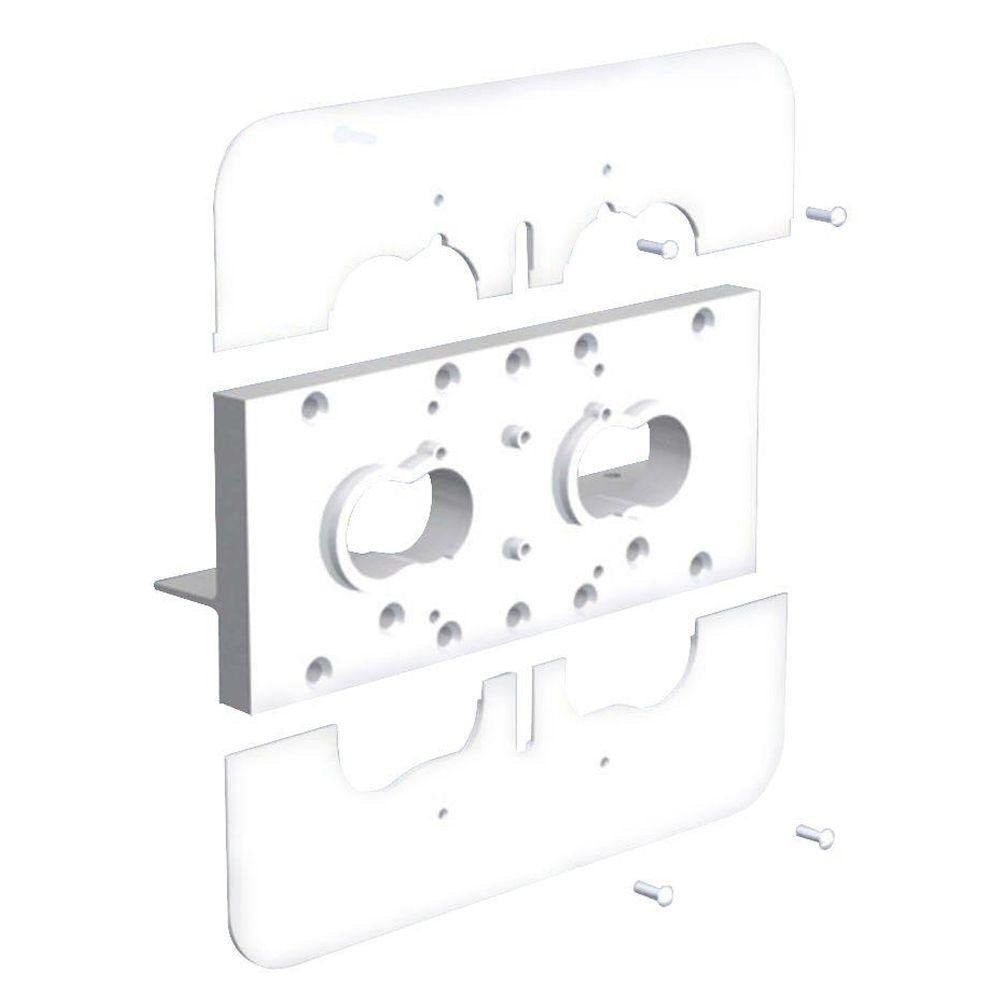

Woodford DMP Model 22 Drywall Mounting Plate 13-piece

Product Description

The WOODFORD DMP is a drywall mounting plate designed for use with the Woodford Model 22 wall hydrant. This 13-piece set provides the hardware needed to properly secure and finish the wall hydrant installation through drywall assemblies. Made from plastic, the plate bridges the gap between the hydrant body and the finished wall surface, giving the installation a clean, professional appearance. Plumbers and pipefitters working on residential or light commercial projects will find this plate essential when installing the Model 22 in new construction or retrofit applications where drywall is the finish wall material.

This mounting plate set is intended for use during the rough-in and finish stages of a Model 22 wall hydrant installation. It is suited for residential and light commercial projects where the hydrant penetrates a drywall wall assembly. The 13-piece configuration provides all necessary plate components in a single package, reducing the need for field fabrication or sourcing individual parts.

Key Features

• 13-piece set covers a complete drywall mounting installation
• Plastic construction resists corrosion in exterior wall environments
• Designed specifically for the Woodford Model 22 wall hydrant
• Compact profile at 0.98 inches depth minimizes wall intrusion
• Measures 5.00 inches by 7.01 inches for standard drywall opening coverage

Compatibility

Designed as an OEM-style mounting accessory for the Woodford Model 22 wall hydrant installed in drywall wall assemblies.

Installation Notes

Installation is typically performed by a licensed plumber during rough-in or finish trim-out of a wall hydrant. Shut off the water supply to the hydrant circuit before beginning any work. Ensure the wall opening is sized correctly for the plate dimensions prior to securing. Follow local plumbing code requirements, including applicable IPC provisions, for exterior wall hydrant installations.
