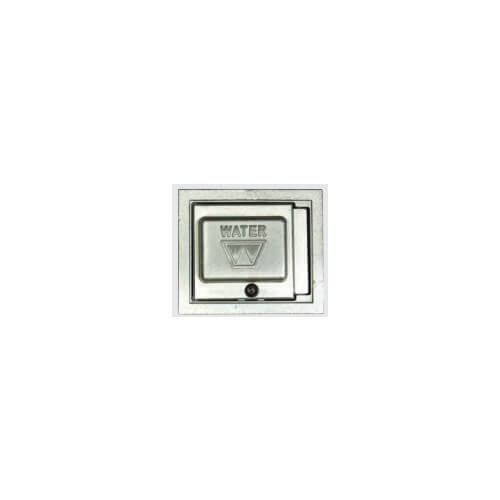

Woodford B67C-CC-BR Model B67 Close Coupled Freezeless Backflow Preventer Box Wall Hydrant

Product Description

The Woodford B67C-CC-BR Model B67 is a freezeless wall hydrant with backflow protection designed for irrigation. This model features automatic draining, allowing it to remain freezeless even in cold conditions. The hydrant drains water as the handle is shut off, ensuring no water is retained in the body. The overall length of this unit is seven and three eighths inches.

• Permanent brass valve body with hemispherical seating.
• One-piece valve plunger for precise flow control.
• Water is diverted away from the building during drainage.

Product Highlights

This model integrates well with different architectural designs, providing practical irrigation solutions without compromising aesthetics.

Product Information

Standard Information

• ASSE Standard: 1052 approved
• Field Testable: Yes

Technical Specifications

• Two Independent Check Valves: Yes
• No Spray Back: Yes
• Max Pressure: 125 p.s.i.
• Max Temperature: 120 degrees Fahrenheit
• Operating Rod: 3/8 inch solid brass
