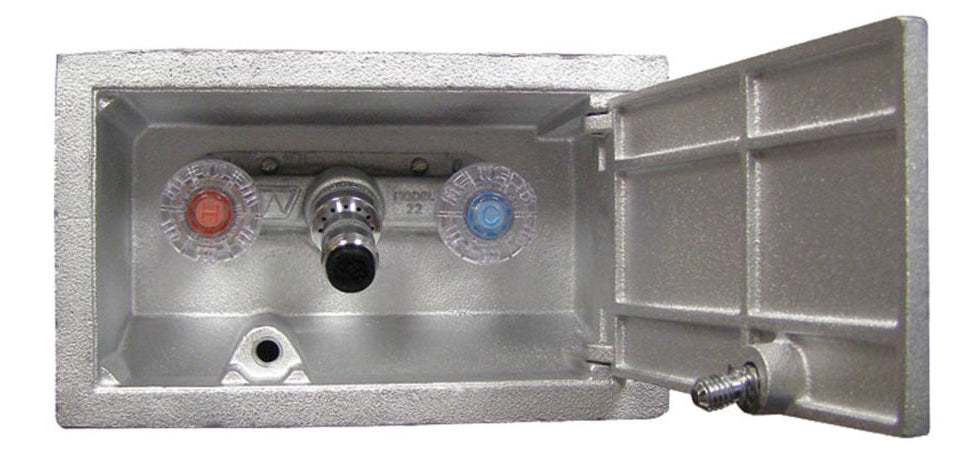

Woodford B22C-10 Model B22 10 Inches Hot & Cold Box Anti-Siphon Faucet

Product Description

The Woodford B22C-10 is a chrome plated commercial wall faucet designed for irrigation. It provides hot and cold water service throughout the year, regardless of outside temperature conditions. This faucet features separate hot and cold inlet tubes and operating handles for manual water temperature control. It includes backflow protection, bursting protection, and meets ASSE 1052 standards as well as being listed by IAPMO.

• Internal resetting pressure relief valve prevents bursting in freezing conditions.
• Automatic drainage when hose is removed.
• Permanently installed stainless steel seat prevents wire drawing.

Product Highlights

Product Information

Standard Information

• Brand: Woodford
• MPN: B22C-10

Technical Specifications

• ASSE 1052 Approved: Yes
• Listed by IAPMO: Yes
• Field Testable: Yes
• Independent Check Valves: Yes
• Drains Automatically: Yes
• Size: 1/2 inches x 3/4 inches
• Finish: Chrome Plated
• Lead Free: No
• Inlet Type: Sweat
• Anti-Siphon: Yes
• Application: Commercial
• Outlet Size: 3/4 inches
• Outlet Type: Garden Hose Thread
• Maximum Temperature: 120 degrees F
• Product Type: Wall Hydrant
• Wall Thickness: 10 inches
• Length: 11-5/8 inches
• Maximum Pressure: 125 PSI
