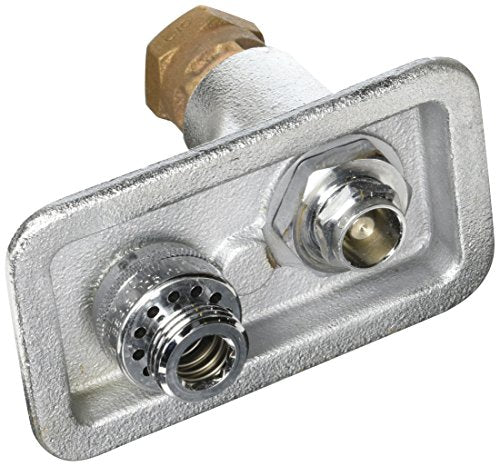

Woodford 74P Model 74 Wall Hydrant, P Inlet

Product Description

The Woodford 74P Model 74 Wall Hydrant is an anti-siphon protected wall hydrant designed for irrigation purposes in mild climate areas or within temperature controlled malls and plazas. It features a permanent type brass valve body with hemispherical seating surface. The hydrant is designed to blend in with modern architecture.

• Hardened stainless steel stem resists damage
• Loose key operates hydrant
• Maximum working pressure: 125 psi, maximum temperature: 120° F

Product Highlights

The Woodford 74P is a close-coupled wall hydrant with an angled outlet, ideal for installation in homes, service stations, churches, motels and drive-in restaurants.

Product Information

Standard Information

• Brand: WOODFORD
• Manufacturer Part Number: 74P
• Country of Origin: USA

Technical Specifications

• Valve seat: Permanent type brass valve body with hemispherical seating surface
• Stem: Hardened stainless steel stem resists damage
• Tee key: Loose key operates hydrant
• Max pressure: 125 psi
• Max temperature: 120°F
• VACUUM BREAKER - ANTI-SIPHON: NIDEL Model 34HF with 3/4 inch male hose thread, approved under ASSE Standard 1011, Canadian Standards Association and listed by IAPMO
• Manufacturer: Woodford
• Part Number: 74P
• Inlet: 3/4" FPT
• Inlet Style: 3/4" FPT
• Length: Close Couple
• Model: 74
