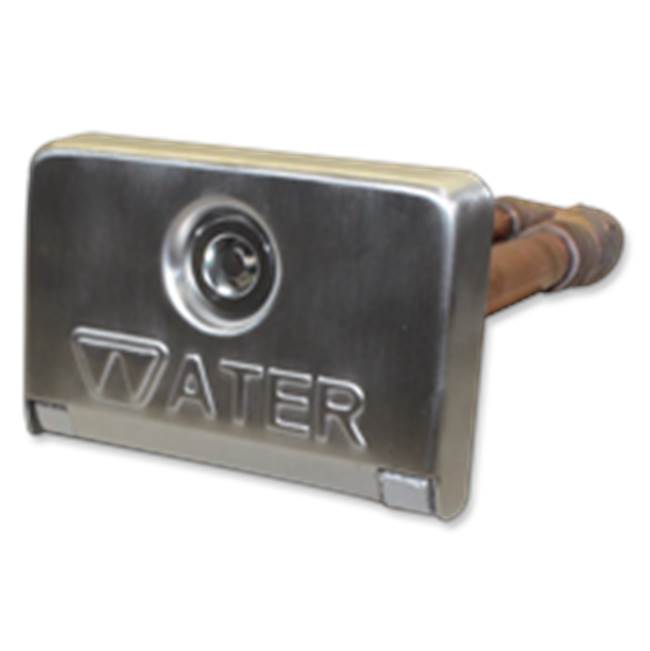

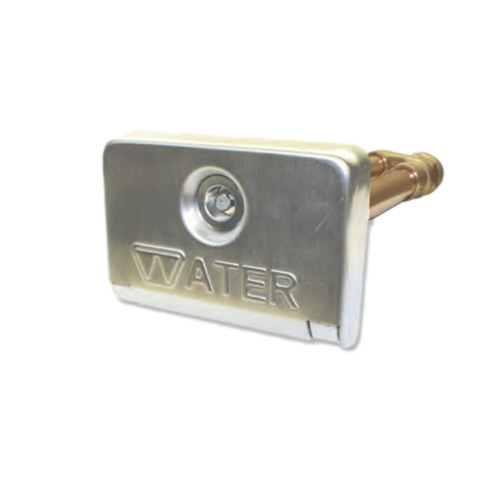

Woodford 68C-CC Model 68 Close Couple Undercover Freezeless Wall Hydrant

Product Description

The WOODFORD 68C-CC Model 68 Close Couple Undercover Freezeless Wall Hydrant is an automatic draining, freezeless wall hydrant designed for irrigation. It features a hose connection with backflow protection and a unique, integral, locking head cover. This hydrant is intended for installation on various commercial and institutional buildings, blending with modern architecture. It operates effectively up to 125 p.s.i. and a maximum temperature of 120° F, making it suitable for diverse outdoor watering needs.

• Automatically drains, even with a hose attached, preventing freezing.
• Features a solid 3/8" brass operating rod and hardened 3/8" stainless steel operating stem for durability.
• Includes a one-piece plunger that controls both flow and drain functions.

Product Highlights

This freezeless wall hydrant offers automatic draining and backflow protection, featuring a locking head cover for security and a design that integrates seamlessly with modern building aesthetics.

Product Information

Standard Information

• Brand: WOODFORD
• Manufacturer Part Number: 68C-CC

Technical Specifications

• Manufacturer Part Number: 68C-CC
• Inlet Style: 3/4” Copper SWT
• Wall Thickness: Close Couple
• Model: 68
• Pressure Rating: Up to 125 p.s.i.
• Maximum Temperature: 120° F
• Product Type: Wall Hydrant
