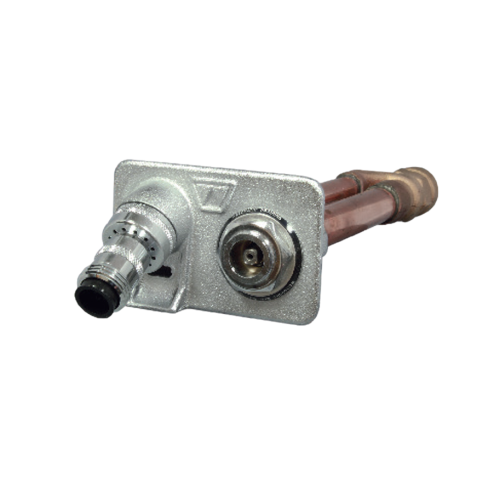

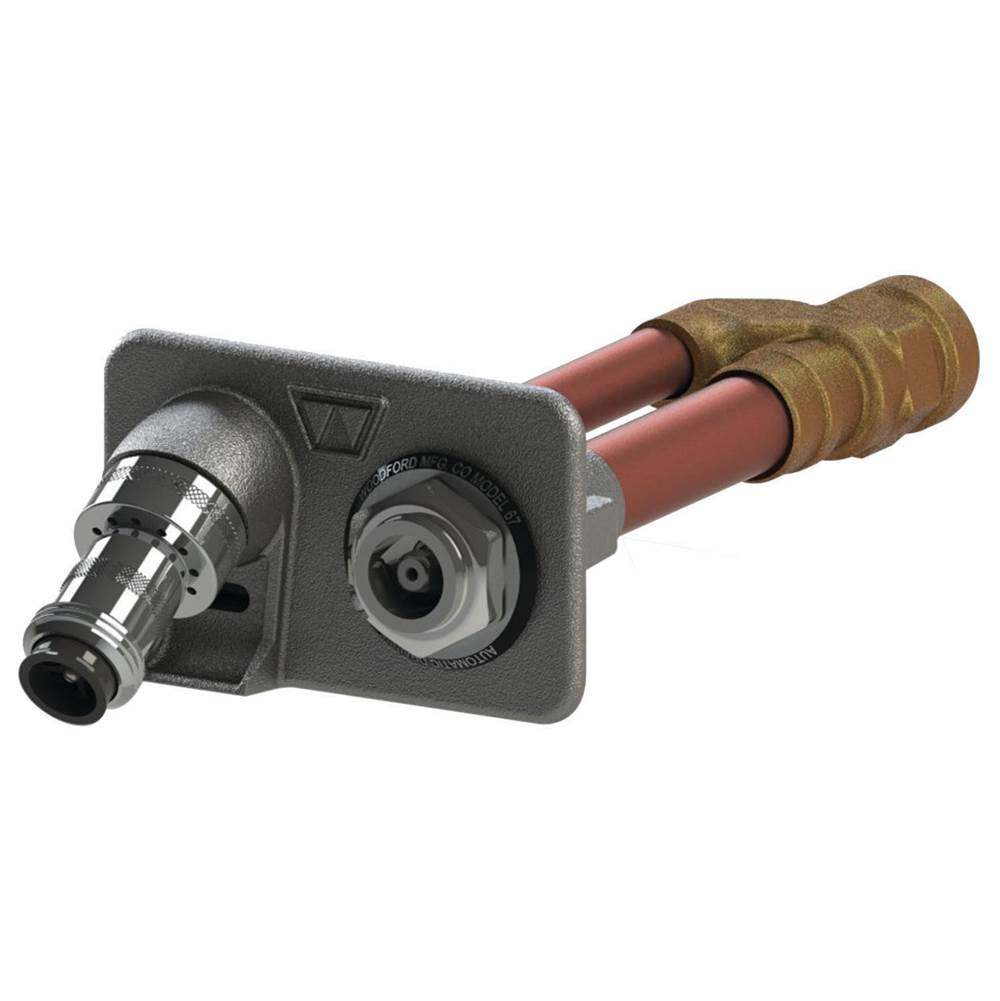

Woodford 67C-20 Model 67 Freezeless Backflow Preventer Wall Hydrant 20 in

Product Description

The WOODFORD 67C-20 Model 67 is an automatic draining, freezeless wall hydrant with hose connection backflow protection. It drains as the handle is shut off, even if a hose is attached. Intended for irrigation purposes, it blends with modern architecture for installation on various buildings. The overall length is 24".

• Permanent type brass valve body with hemispherical seating surface.
• One piece valve plunger accurately controls both flow and drainage.
• Drains under nozzle away from hands of operator.

Product Highlights

Automatic draining, freezeless wall hydrant with hose connection backflow protection. Ideal for irrigation purposes.

Product Information

Standard Information

• Brand: WOODFORD
• Manufacturer Part Number: 67C-20

Technical Specifications

• ASSE Standard: 1052 approved
• Field Testable: True
• Two Independent Check Valves: True
• No spray back: True
• Max Pressure: 125 p.s.i.
• Max Temperature: 120° F
• Product Type: Wall Hydrant
• Wall Thickness: 20 in
• Inlet Type: Sweat
• Max Operating Pressure: 125 psi
• Max Temp (F): 120°F
• Size: 3/4"
• Lead Free: No
• Anti-Siphon: No
• Application: Commercial
• Brand: Woodford Manufacturing
• Domestic/Import: Domestic
• Pressure Rating: 125 psi
• Temperature Rating: 120 deg F
• End Style: Copper Water Tube
• Handle Type: Tee Key
• Nominal Size: 3/4 in
• Series: Model 67
• Type: Freezeless
• Inlet Style: 3/4” Copper SWT
• Model: 67
• Width: 6.00"
• Height: 4.00"
