Woodford 50HF-BR Backflow Preventer 3/4 inch

Product Description

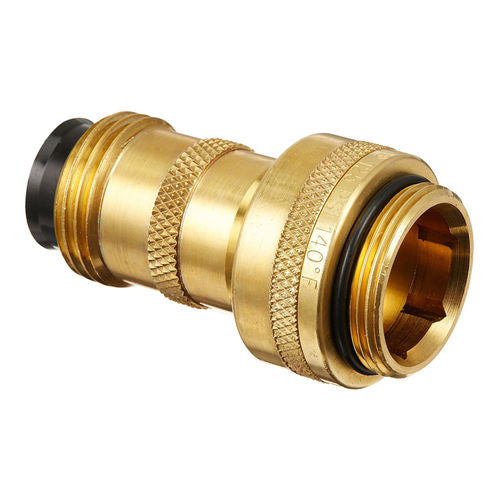

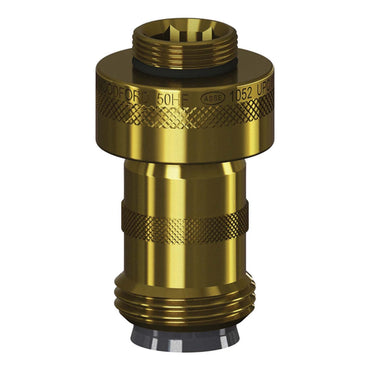

The WOODFORD 50HF-BR Backflow Preventer is a patented NIDEL Model 50H high flow double check device designed for irrigation purposes. It protects hose connections from backflow contamination in both freezing and non-freezing conditions. This replacement part automatically drains when the hose is removed, preventing freezing, and can be field tested for reliability. It features a 3/4 inch female inlet hose thread and a 3/4 inch male outer nozzle hose thread, with a maximum pressure of 125 PSI.

• Features two check valves with molded rubber diaphragms for reliable operation.
• Automatically drains when the hose is removed, preventing freezing.
• Designed for irrigation, protecting hose connections from backflow contamination.

Product Highlights

This ASSE 1052 approved, brass construction backflow preventer is suitable for various applications including outside hose bibbs and wash racks.

Product Information

Standard Information

• Brand: WOODFORD
• Manufacturer Part Number: 50HF-BR
• Country of Origin: United States

Technical Specifications

• Finish: Brass
• Application: Commercial
• Product Type: Replacement Part
• Maximum Pressure: 125 PSI
• Female Inlet Hose Thread: 3/4 inch
• Male Outer Nozzle Hose Thread: 3/4 inch
• Material: Brass
• Number of Ports: 2
• Thread Size: 1-1/8 inches
• Backflow Preventer Type: Double-Check
• Maximum Temperature: 120°F
• Certifications: ASSE 1052
