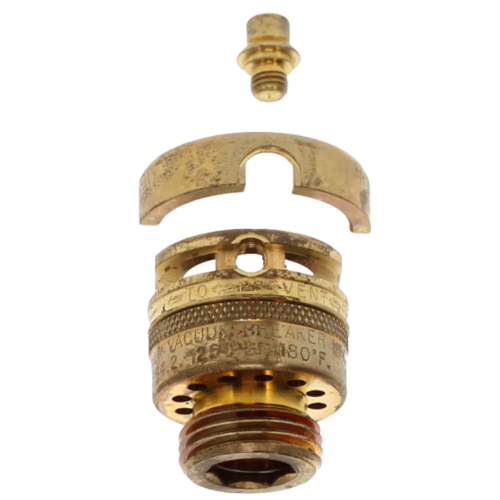

Woodford 34HD-BR 34 HD Vacuum Breaker Brass

Product Description

The Woodford 34HD-BR anti-siphon vacuum breaker is intended for irrigation purposes and designed to protect hose connections from contamination where temperatures do not go below freezing. It is designed for freezing conditions and includes manual draining for cold weather. It is a direct replacement manufactured by Woodford.

• Genuine Woodford Manufacturing Product
• Anti-siphon vacuum breaker
• Theft Resistant: Stainless steel stop collar and stop screw. (Model 34HD)

Product Highlights

The Woodford 34HD-BR vacuum breaker protects hose connections from contamination and is designed for use in freezing conditions. It features manual draining for cold weather.

Product Information

Standard Information

• Brand: WOODFORD
• Manufacturer Part Number: 34HD-BRASS

Technical Specifications

• ASSE 1011 Approved: Yes
• Listed by IAPMO: Yes
• Approved by Canadian Standards Association: Yes
• Check Valve: Molded rubber diaphragm
• Construction: Brass and Stainless Steel
• Exterior Finish: Brass(BR).Optional:ChromePlated(CH)
• Inlet: 3/4? female hose thread
• Outlet Nozzle: 3/4? male hose thread
• Max Pressure: 125 p.s.i.
• Max Temperature: 120 DEG F
• Brand: Woodford
• MPN: 34-HD-BR
• Body Material: Brass
• Suitable Media: Non-Potable Water
• Vacuum Breaker Type: Rough Brass Vacuum Breaker
• Maximum Pressure: 125 psi
• Manufacturer Part Number: 34HD-BR
• Finish: Brass
• APPLICATION: OUTSIDE SERVICE, FREEZING AREA
• MODEL: 34HD
• END CONNECTION: FEMALE HOSE THREADED X MALE HOSE THREADED
• TYPE: ANTI-SIPHON
• NOMINAL SIZE: 3/4 INCH
• APPLICABLE STANDARD: CSA, UPC, ASSE 1011, IAPMO
• TEMPERATURE RATING: 120 DEG F
• PRESSURE RATING: 125 PSI
• INCLUSIONS/FEATURES: MOLDED RUBBER DIAPHRAGM, STAINLESS STEEL STOP COLLAR AND STOP SCREW
• Material: Brass
• PRODUCT_TYPE: PLBG
• Manufacturer: Woodford
