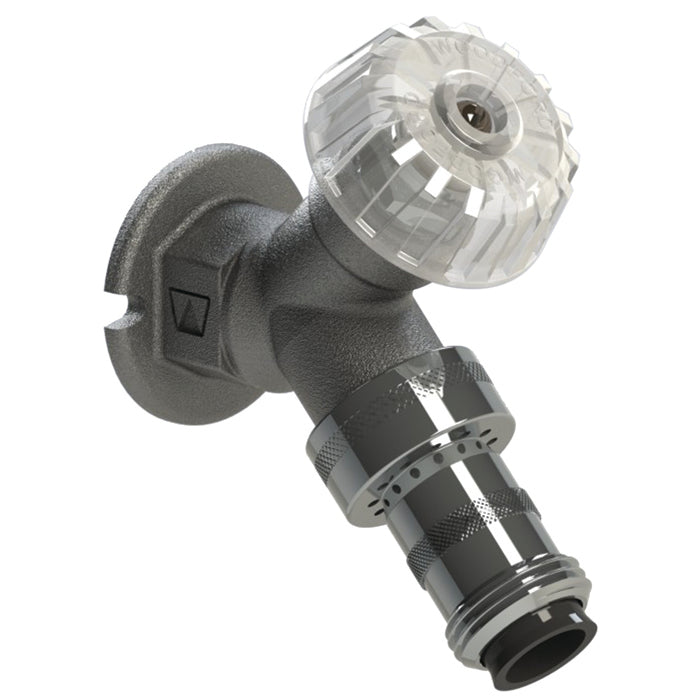

Woodford 26CP Model 26 1/2 inches MPT x Sweat Inlet Automatic Draining Mild Climate Wall Faucet

Product Description

The WOODFORD 26CP Model 26 is an automatic draining wall faucet designed for irrigation in mild climate areas. This field-testable, backflow-protected unit features a 1/2" MPT x Sweat inlet and a 3/4" garden hose thread outlet. Suitable for installation on homes, service stations, and other commercial buildings, it operates up to 120°F and 125 PSI. The faucet drains automatically when the hose is removed and is intended for non-potable water applications only, without anti-siphon protection.

• Field testable and backflow protected, approved by ASSE 1052 and listed by IAPMO.
• Features EPDM packing to prevent leaks and an adjustable brass packing nut with deep stem guard.
• Equipped with a polycarbonate wheel handle and loose tee key for operation.

Product Highlights

Automatic draining wall faucet for mild climates, featuring backflow protection and non-potable water use.

Product Information

Standard Information

• Brand: WOODFORD
• Manufacturer Part Number: 26CP
• Country of Origin: USA

Technical Specifications

• Inlet Type: Sweat x MNPT
• Outlet Size: 3/4"
• Outlet Type: Garden Hose Thread
• Maximum Temperature: 120°F
• Maximum Pressure: 125 PSI
• Anti-Siphon: No
• Application: Residential
• Lead Free: No
• Certifications: ASSE 1052 Approved, IAPMO Listed, UL Listed: No
• Testability: Field Testable
• Check Valves: Two Independent
• Drainage: Automatic when hose is removed
• Spray Back: None
• Exterior Finish: Standard Chrome
• ADA Compliant: No
