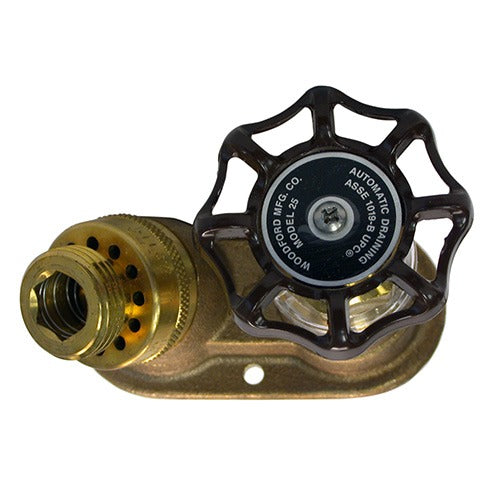

Woodford 25P-06 Wall Hydrant 6 Inch 1/2 Fip X 3/4 Mip

Product Description

The WOODFORD 25P-06 is a wall hydrant with a 6-inch bury depth designed for residential and light commercial plumbing installations. It features a 1/2-inch FIP inlet connection and a 3/4-inch MIP outlet connection, allowing it to integrate with standard supply lines and hose bibb configurations. The hydrant is intended for through-wall mounting where a frost-free or non-freeze exterior water supply point is needed. Licensed plumbers and experienced pipe fitters are the typical installers for this type of fitting.

Wall hydrants of this type are commonly installed in exterior walls of homes, commercial buildings, and utility structures where a controlled outdoor water source is required. The 6-inch length suits walls of standard framing depth. The 1/2 FIP inlet connects to the interior supply line, while the 3/4 MIP outlet provides a standard hose-thread-compatible connection point on the exterior face of the wall.

Key Features

• 6-inch bury depth for through-wall installation in standard framed walls
• 1/2-inch FIP inlet for connection to interior supply piping
• 3/4-inch MIP outlet for exterior hose or fixture connection
• Wall hydrant design provides a dedicated exterior water supply point
• Suited for residential and light commercial applications

Compatibility

Designed as an OEM-style replacement or new-installation wall hydrant compatible with standard 1/2-inch FIP supply lines and 3/4-inch MIP outlet fittings in through-wall plumbing configurations.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and depressurize the line before beginning work. Apply thread sealant tape or pipe dope to all threaded connections per standard practice. Ensure proper slope toward the outlet to allow drainage and prevent freeze damage where applicable.

Technical Specifications

• Bury Depth: 6 inches
• Inlet Connection: 1/2 inch FIP
• Outlet Connection: 3/4 inch MIP

Standard Information

• Brand: WOODFORD
• Manufacturer Part Number: 25P-06
