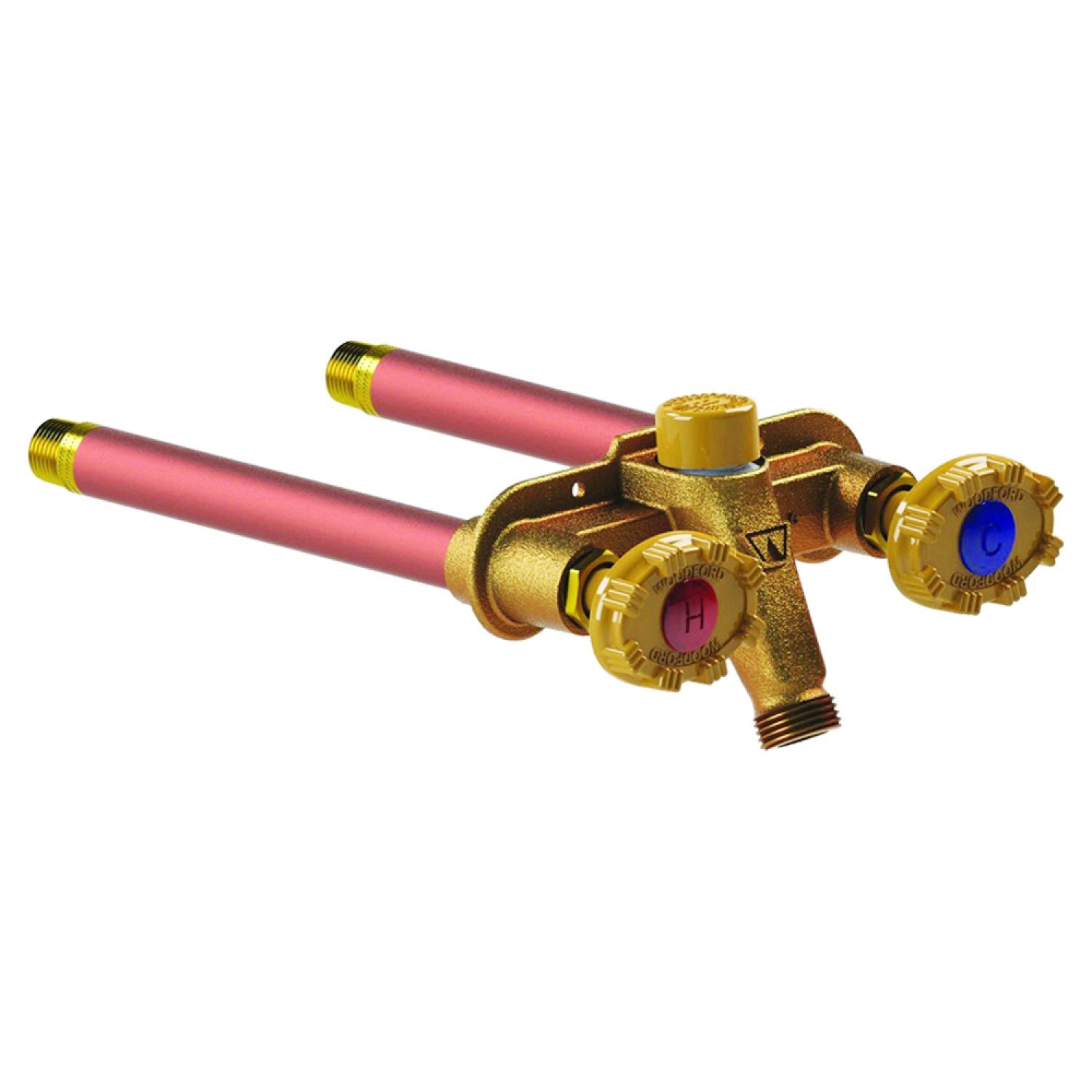

Woodford 22PX-12-PH Model 22PX Freezeless Hot & Cold Wall Faucet 12 Inch

Product Description

The Woodford 22PX-12-PH Model 22PX Freezeless Hot & Cold Wall Faucet is designed for year-round hot and cold water access, regardless of outside temperature. Separate hot and cold inlet tubes allow for manually operated temperature control with cross contamination protection. Contains patented pressure relief valves to prevent bursting in freezing weather. Features an integral backflow protection device.

• Patented resetting pressure relief valve prevents bursting in freezing conditions.
• Built-In Vent Float style Vacuum Breaker.
• Faucet drains automatically when hose is removed.

Product Highlights

The Woodford 22PX-12-PH Freezeless Hot & Cold Wall Faucet is perfect for outside tasks throughout the year, even in freezing conditions. Made in USA.

Product Information

Standard Information

• Brand: WOODFORD
• Manufacturer Part Number: 22PX-12-PH
• Country of Origin: USA

Technical Specifications

• ASSE: 1019 Listed
• Approvals: CSA, UPC, cUPC Approved
• Intended Use: Not intended for continuous use
• MAX PRESSURE: 125 p.s.i.
• MAX TEMPERATURE: 120° F
• Manufacturer: Woodford
• Product: Hose Bibb
• Material: Brass
• Type: Hot and Cold
• Style: Horizontal
• Mount Type: In-wall
• Faucet Handle Type: Oval Handle
• Number of Handles: Two Handle
• Connection Type: Pex
• Connection Size: 1/2"
• Pressure Rating: 125 PSI
• Temperature Rating: 120° F
• Wall Thickness: 12in
• Mpn #: 22PX-12-PH
• Product Type: Hot And Cold Frost Free Wall Hydrant
• Width: 8.00"
• Height: 3.00"
