Woodford 22PX-12-MH Model 22 12 inches Hot & Cold Anti-Siphon Wall Faucet w/ Metal Handle

Product Description

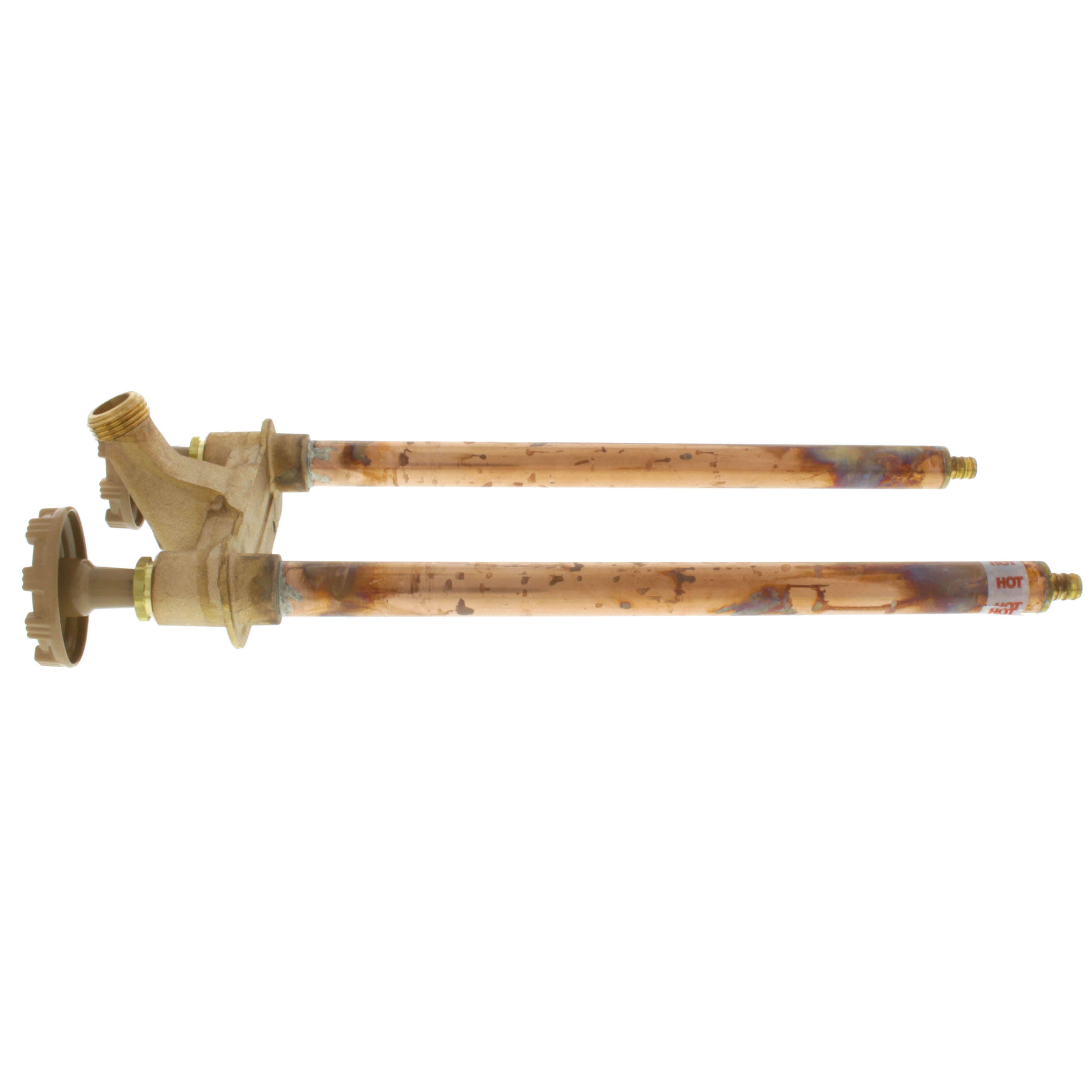

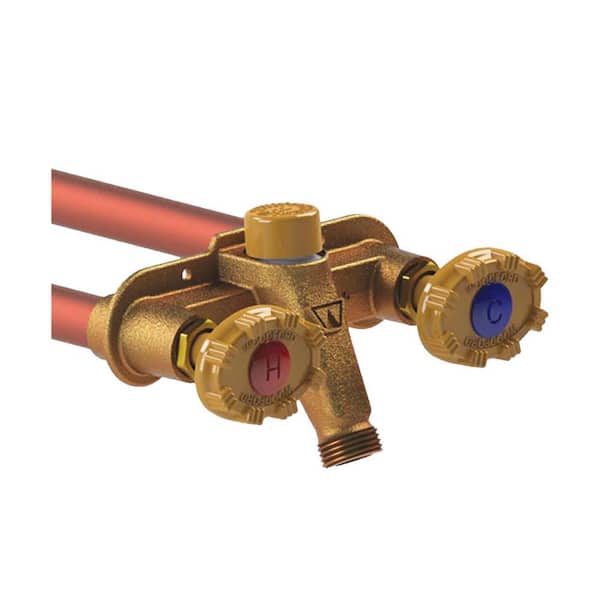

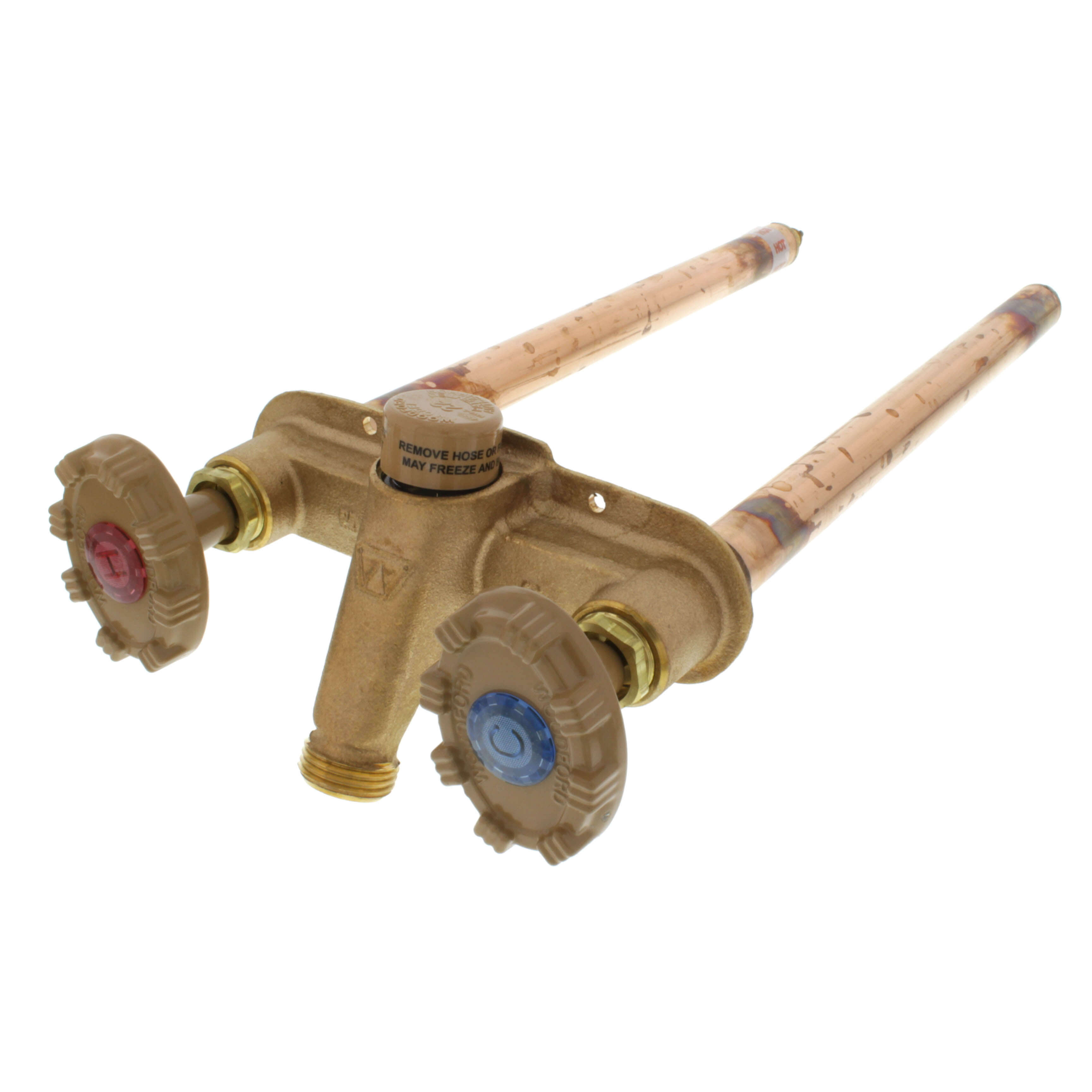

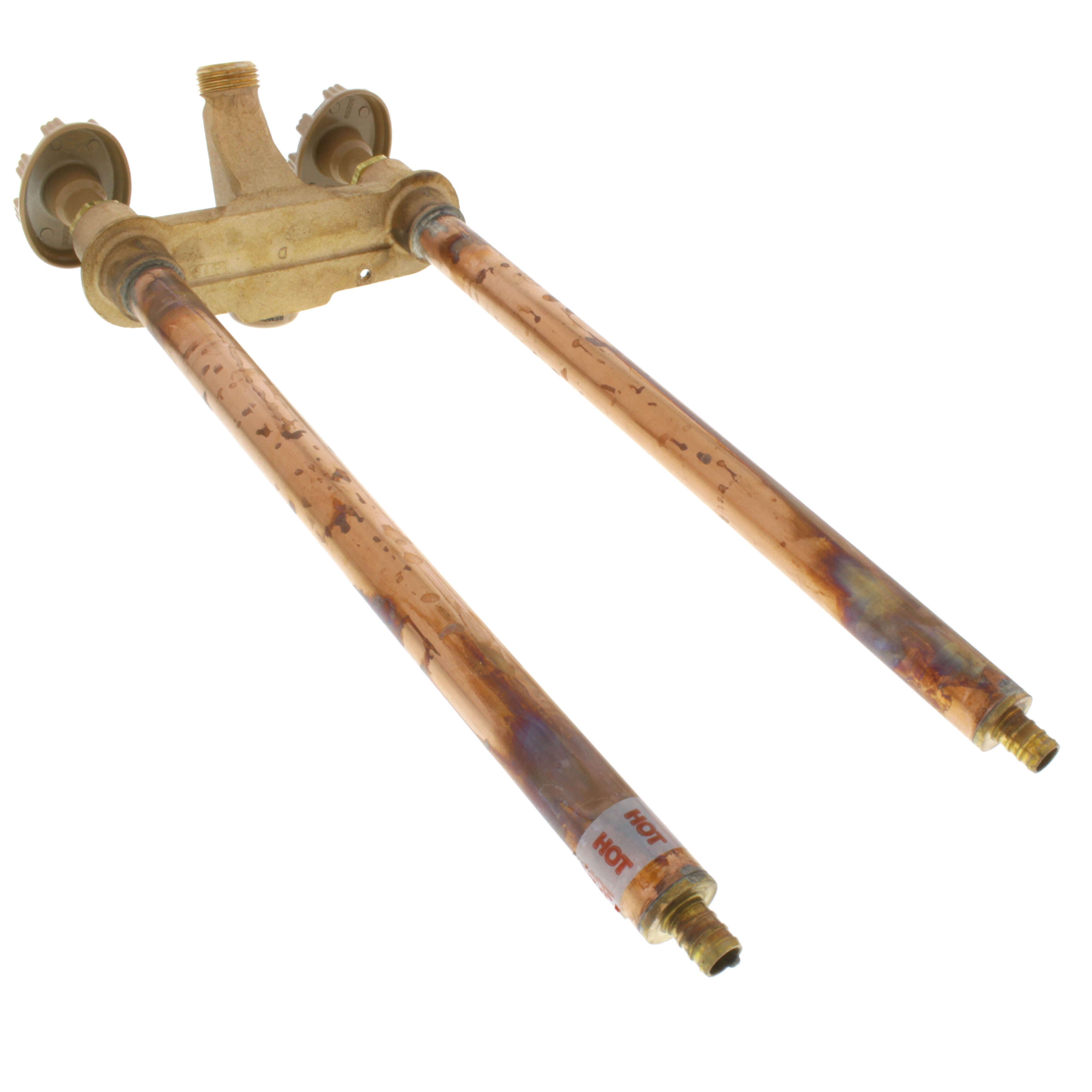

The WOODFORD 22PX-12-MH Model 22 hot and cold faucet is designed for year-round irrigation and cleaning, regardless of outside temperature. Separate hot and cold inlet tubes allow manual temperature control with cross-contamination protection. This faucet features a patented pressure relief valve to prevent bursting in freezing weather and contains an integral backflow protection device.

• Patented resetting pressure relief valve prevents the faucet tube from bursting in freezing conditions.
• Built-In Vent Float style Vacuum Breaker
• Faucet drains automatically when hose is removed

Product Highlights

The faucet has separate hot and cold inlet tubes for manual temperature control and includes a backflow protection device.

Product Information

Standard Information

• Brand: WOODFORD
• Manufacturer Part Number: 22PX-12-MH
• Country of Origin: United States

Technical Specifications

• ASSE 1019 Listed: Yes
• CSA, UPC, cUPC Approved: Yes
• Not intended for continuous use: Yes
• Inlet Type: PEX Crimp
• Size: 1/2"
• Wall Thickness: 12"
• Max Pressure (PSI): 125
• Max Temp (F): 120 F
• Inlet Diameter (In.): 1/2
• Manufactured under one or more of the following patents: 3,208,715; 3,278,201; 5,590,679; 5,632,303; 6,142,172; 6,532,986 and patents pending
• Model: Woodford Freezeless
• Number of Faucet Handles: 2
• Material: Metal
• Country of Origin: United States
• UPC: 671090003907
