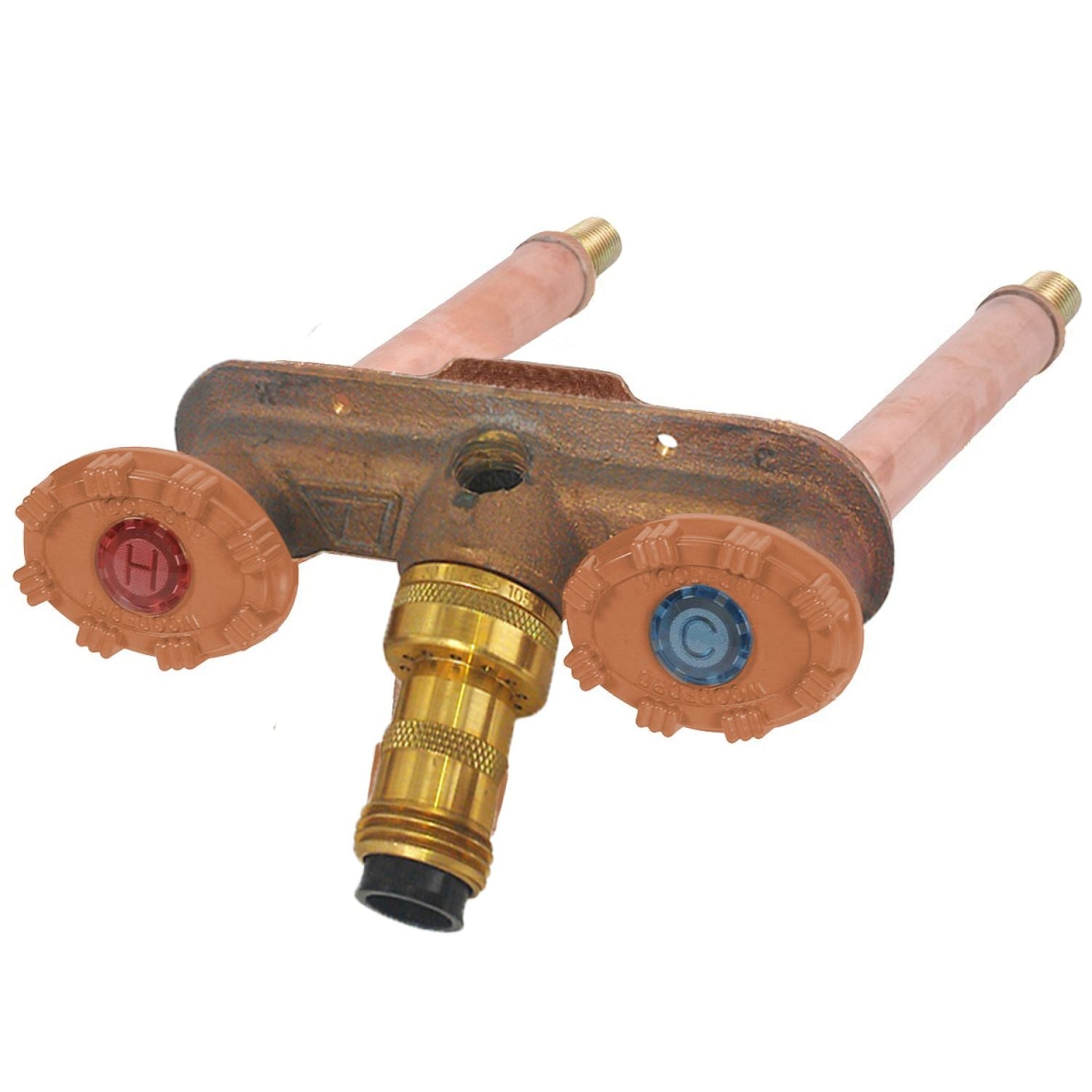

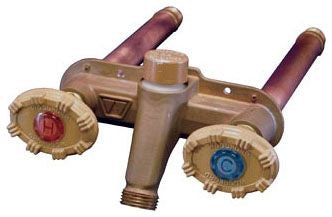

Woodford 22CP-10-PH Freezeless Hot and Cold Wall Faucet

Product Description

The Woodford 22CP-10-PH is a horizontal wall faucet designed for both hot and cold water supply. It consists of separate inlet tubes that allow for manual temperature control. The faucet is ideal for irrigation and cleaning tasks. Built-in components include a backflow preventer and a pressure relief valve to enhance safety.

• Features a stainless steel seat and EPDM packing.
• Includes a pressure relief valve to prevent damage in freezing conditions.
• Designed for easy horizontal, in-wall installation.

Product Highlights

This faucet is well-suited for outdoor use, such as garden irrigation and cleaning. It has a robust build with a rough brass body and durable plastic handle.

Product Information

Standard Information

• Brand: Woodford
• Product Type: Hose Bibb

Technical Specifications

• Mount Type: In-wall
• Application: Hot and Cold Irrigation, Cleaning Purpose
• Body Material: Rough Brass
• Handle Material: Plastic
• Actuation Type: Oval Wheel Handle
• Seat Material: Stainless Steel
• Seal/Packing Material: EPDM
• Connection Size: 1/2 x 3/4
• Connection Type: MPT x Female SWT
• End Connection: Male Threaded/Female Soldered x Male Hose Threaded
• Rough-In: 10 Inch
• Wall Thickness: 10 inches
• Stem Length: 11-7/8 inches
• Pressure Rating: 125 PSI
• Temperature Rating: 120 degrees F
• Type: Hot and Cold
• Specialty Faucet Type: Outdoor Shower Faucet
• Self Draining: Yes
• Backflow Protected: Yes
• Anti-Siphon Protected: Yes
• Inclusions/Features: O Size Seat Washer, Built-In Vent Float Style Vacuum Breaker, Pressure Relief Valve
• Applicable Standard: ASSE 1019-C, CSA, UPC, CUPC
