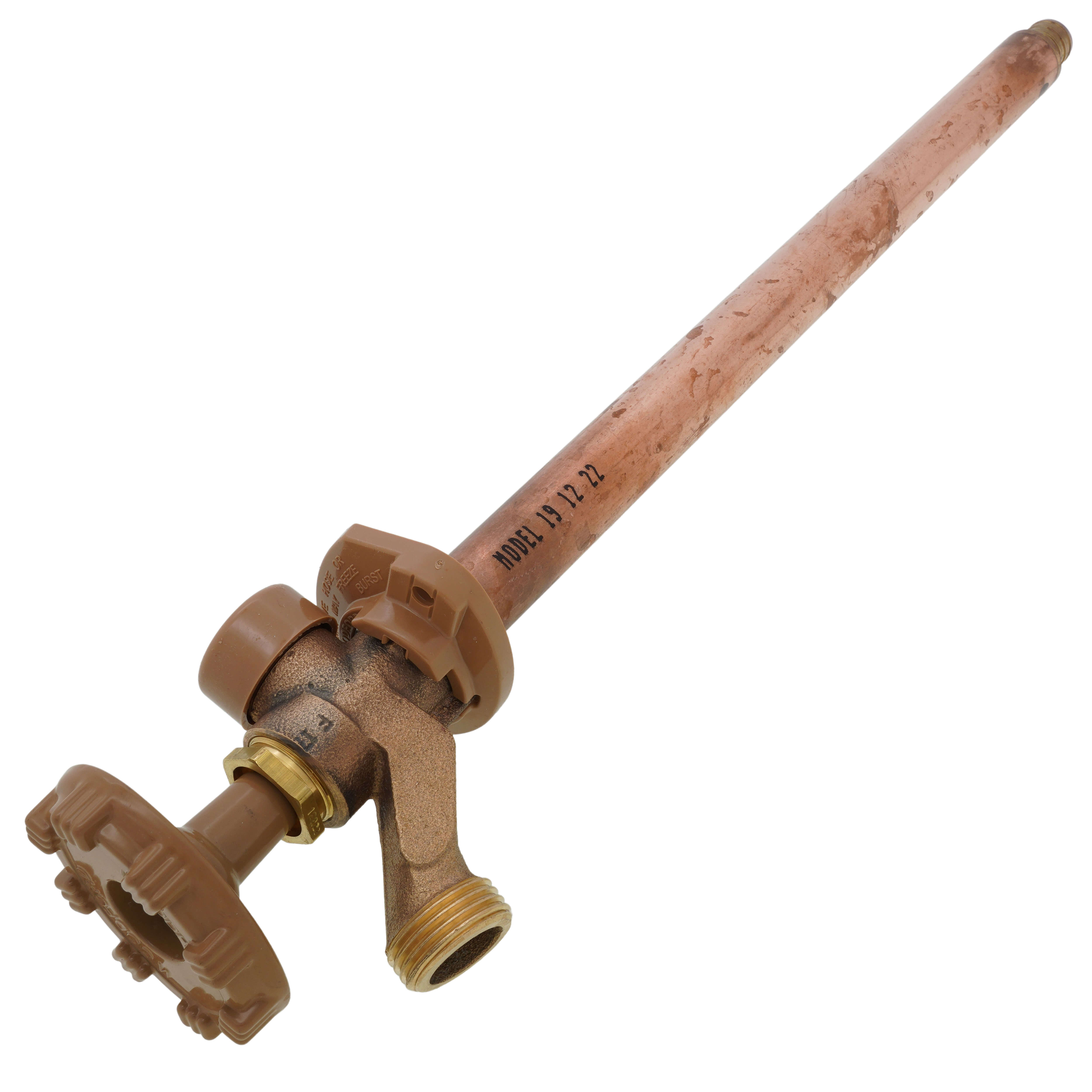

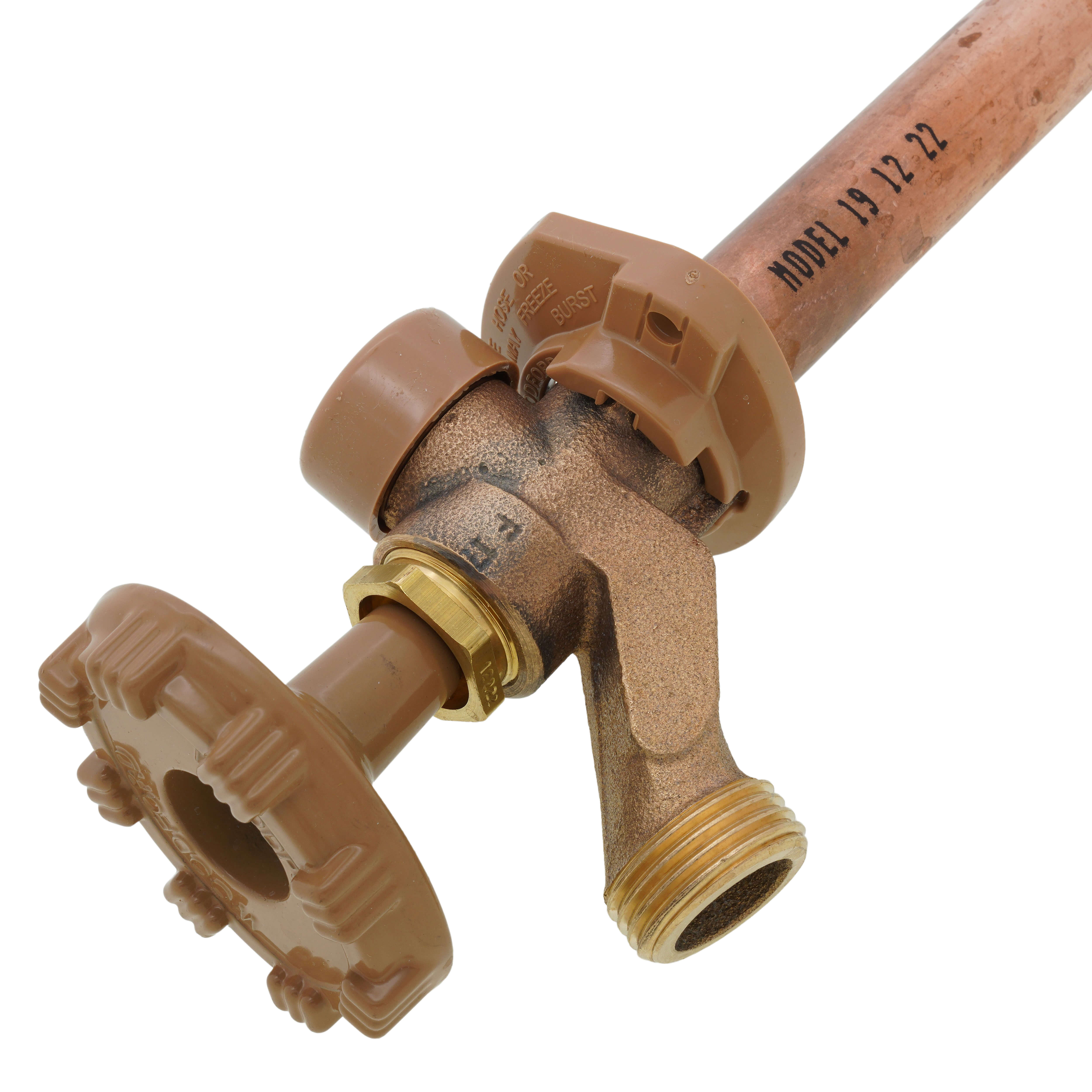

Woodford 19PX3-12 Model 19 3/4 inch PEX Crimp Inlet Anti-Siphon Wall Faucet with Metal Handle 12 inch

Product Description

The WOODFORD 19PX3-12 Model 19 Anti-Siphon Wall Faucet is designed for year-round residential irrigation, offering freezeless operation regardless of outside temperature. This 3/4 inch PEX Crimp Inlet faucet features an integral backflow protection device, safeguarding against up to 125 psi of backpressure, eliminating the need for an additional vacuum breaker. It is suitable for a 12-inch wall thickness.

• Patented resetting pressure relief valve prevents the faucet tube from bursting in freezing conditions even if a hose is unintentionally left on.
• 3/4 inch male hose thread nozzle and stainless steel seat to eliminate wire draw.
• EPDM packing prevents leaking, ensuring reliable performance.

Product Highlights

Freezeless operation with integral backflow protection for residential irrigation.

Product Information

Standard Information

• Brand: WOODFORD
• Manufacturer Part Number: 19PX3-12

Technical Specifications

• Patents: 3,208,715; 3,278,201; 5,590,679; 5,632,303; 6,142,172; 6,532,986 and patents pending
• Certifications: ASSE 1019 - Type C Listed, CSA, cUPC Approved
• Usage Restriction: Not intended for continuous use
• Maximum Pressure: 125 p.s.i.
• Maximum Temperature: 120°F

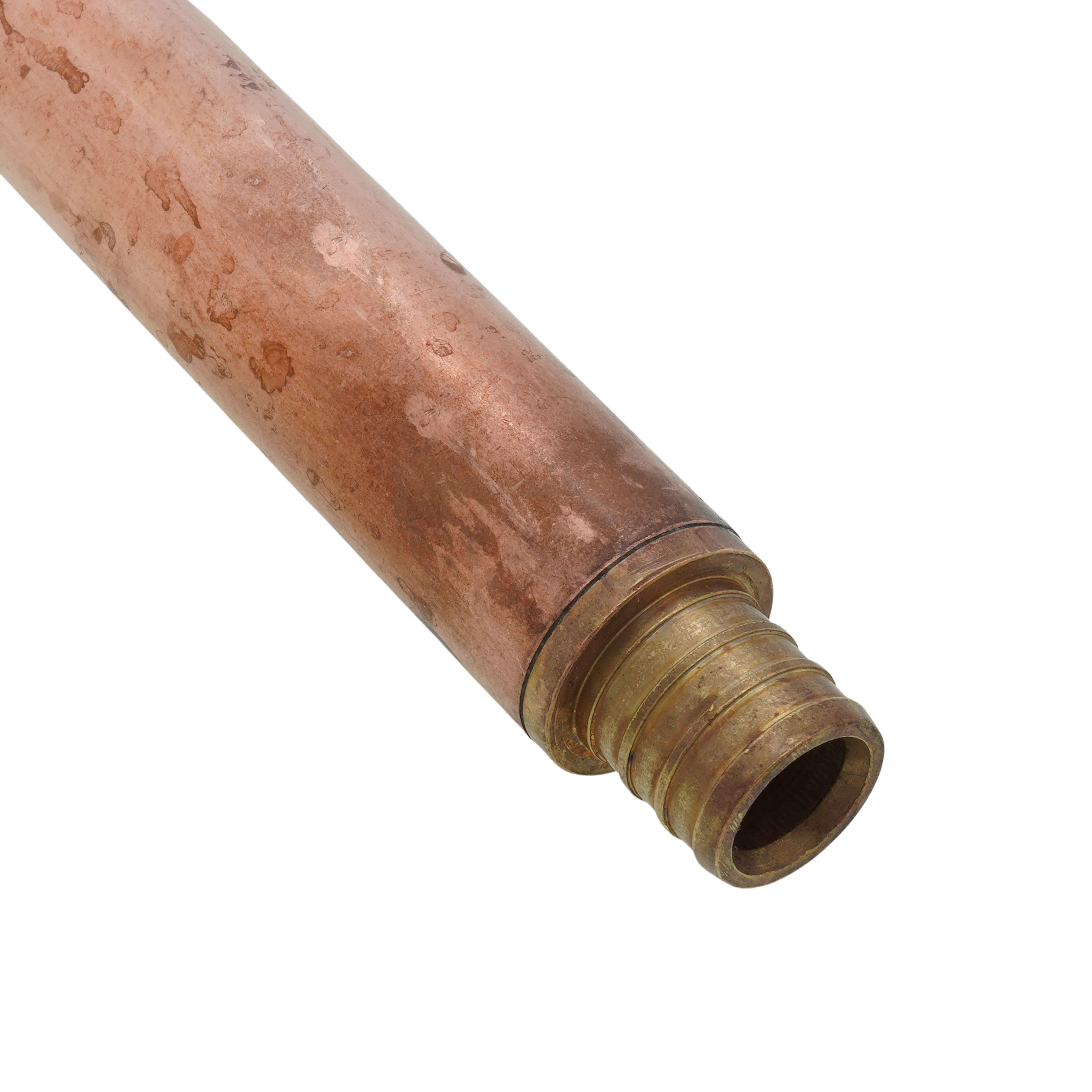

• Inlet Type: PEX Crimp
• Anti-Siphon Protection: Yes
• Wall Thickness: 12"
• Overall Length: 13-1/8"
• Inlet Size: 3/4"
• Faucet Type: Freezeless Wall Faucet
