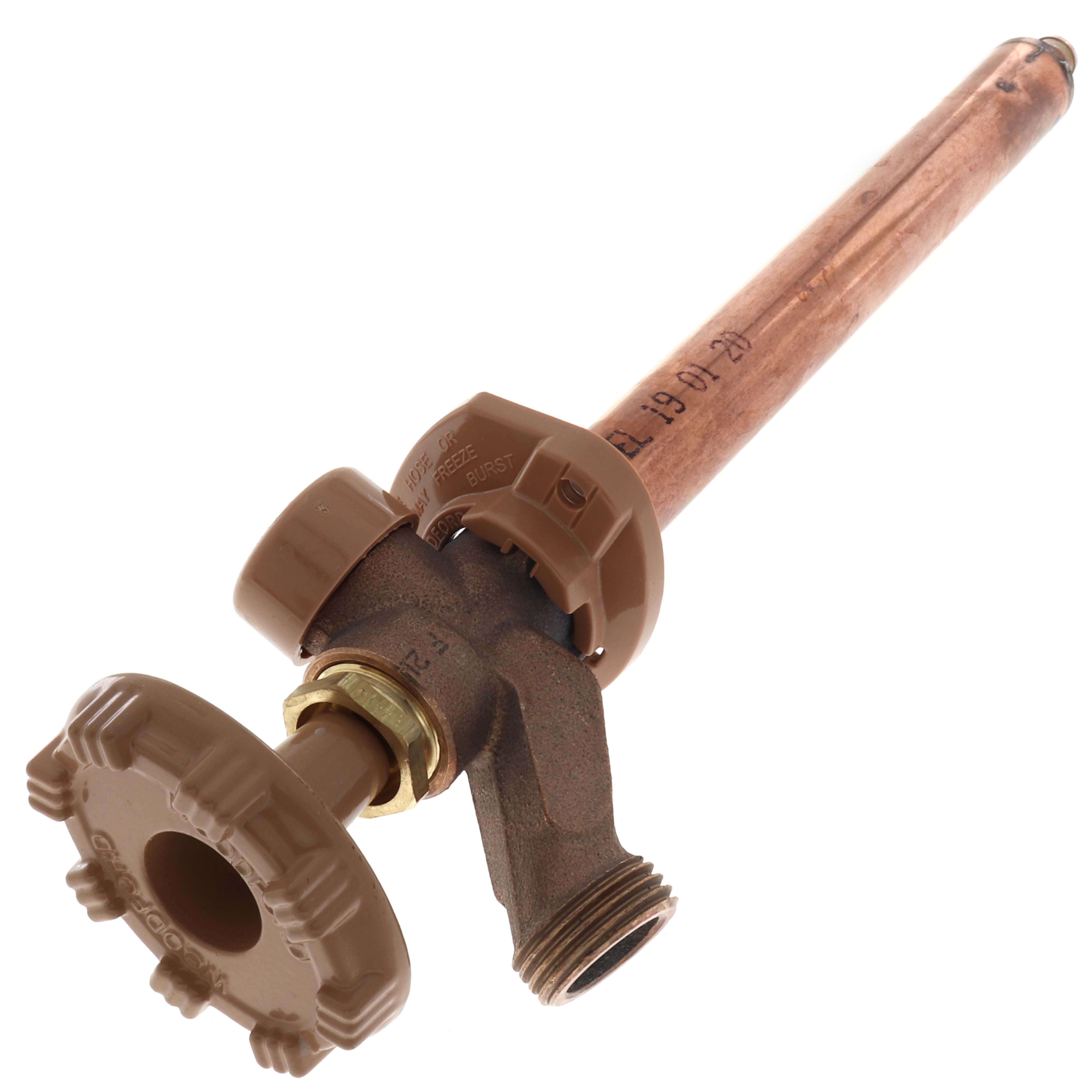

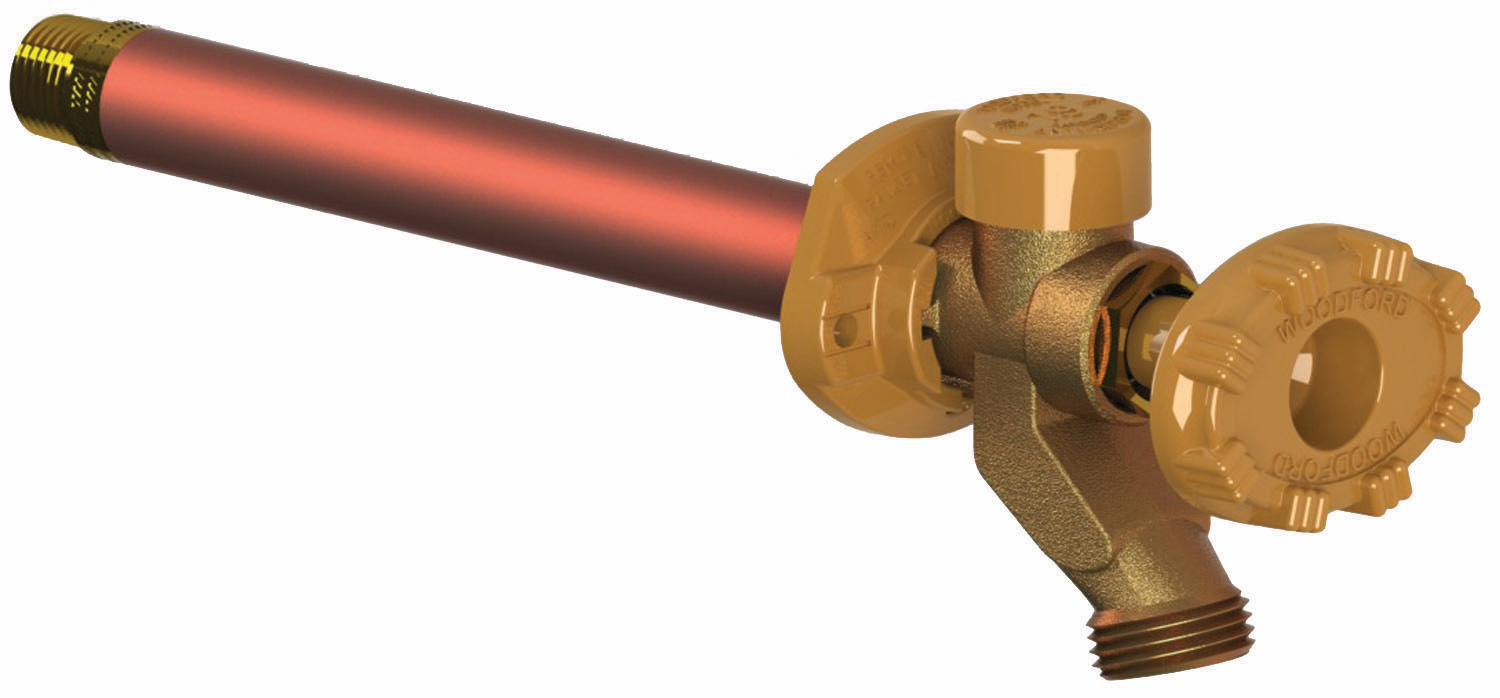

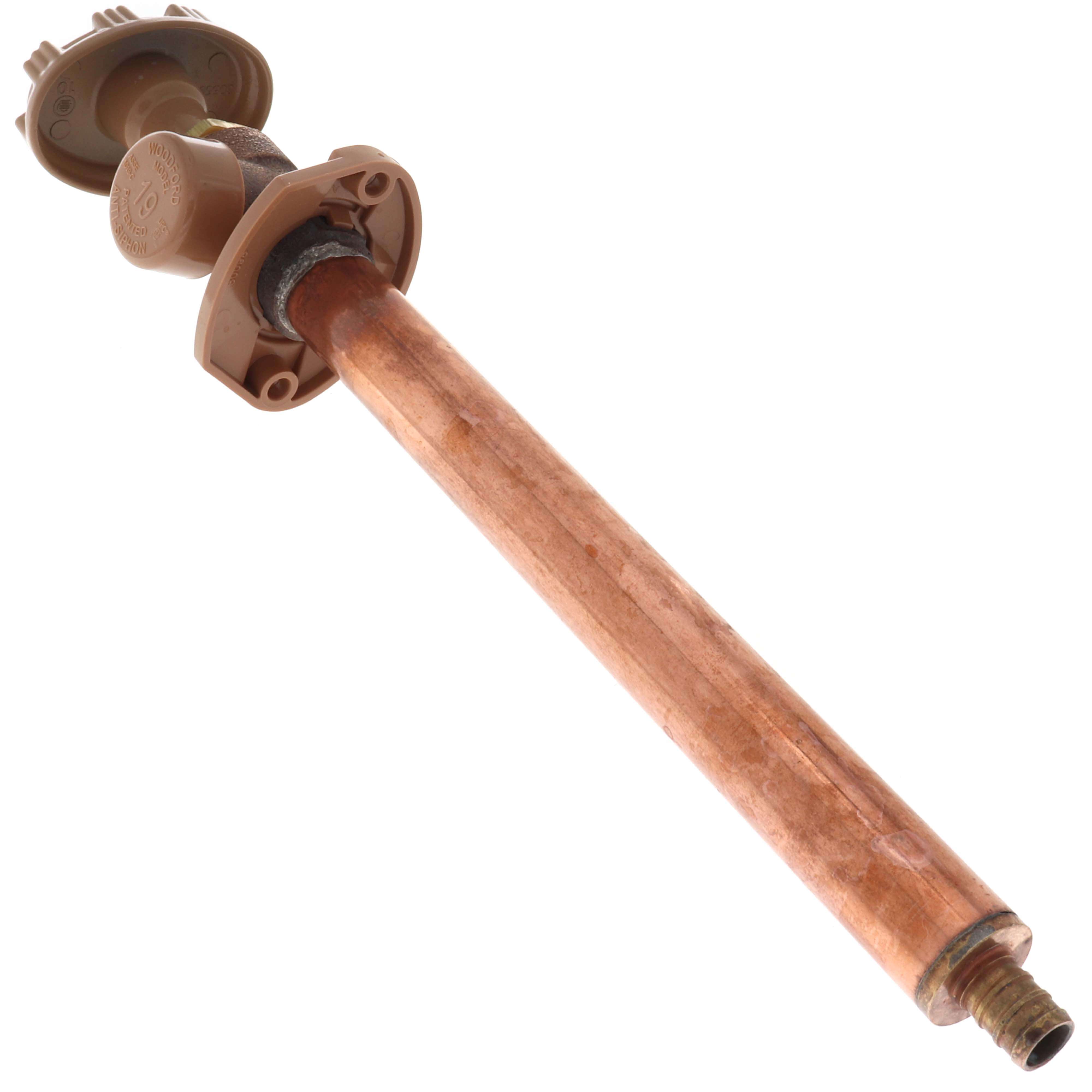

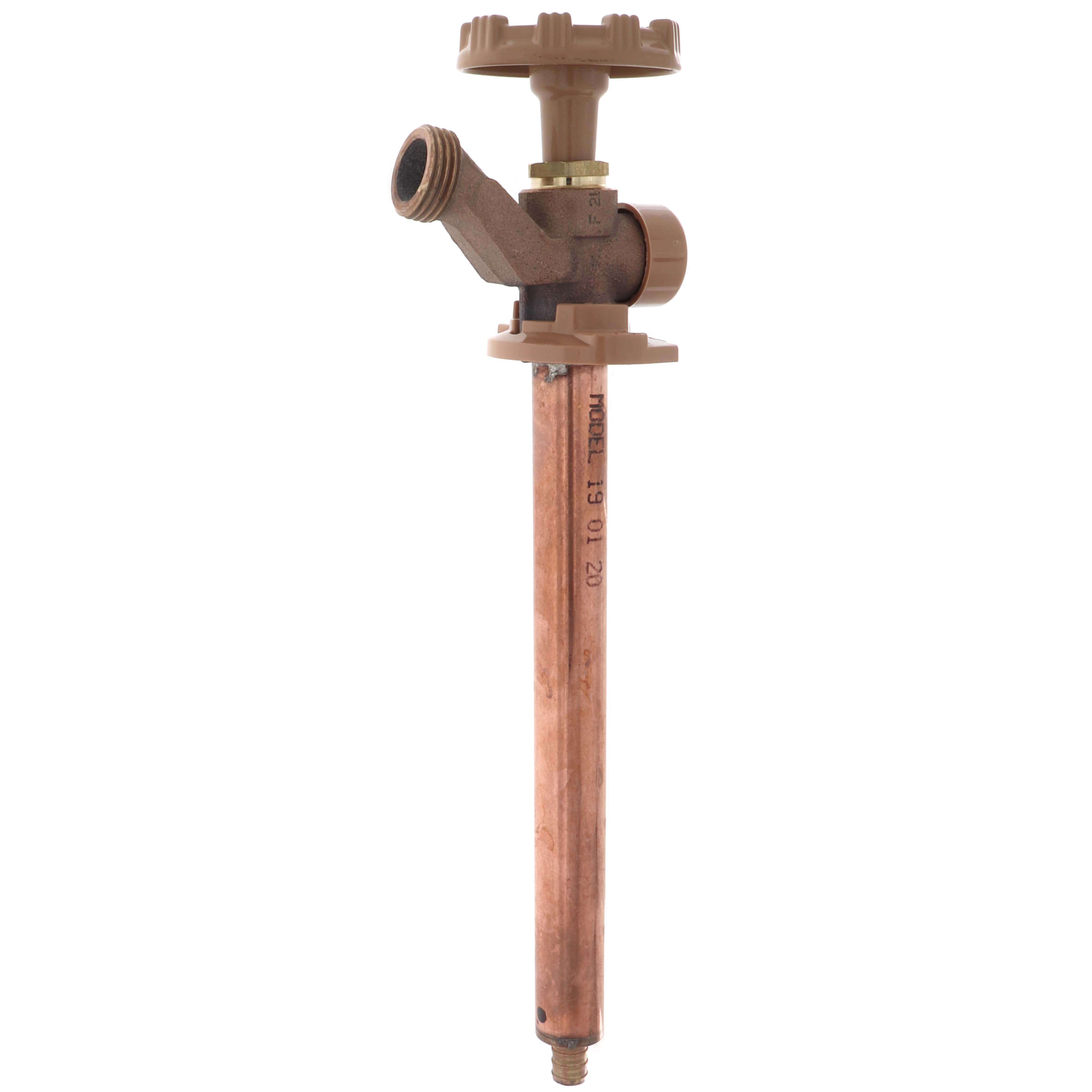

Woodford 19PX-8-BH Model 19 Wall Faucet 8 inches 1/2 inches PEX Crimp Inlet

Product Description

The Woodford 19PX-8-BH Model 19 is intended for irrigation purposes and designed for year-round residential use, regardless of outside temperature. It features an integral backflow protection device, protecting up to 125 psi of backpressure, eliminating the need for an add-on vacuum breaker. It is ASSE 1019 approved for outdoor watering and irrigation, and should not be subjected to more than 12 hours of continuous water pressure.

• 3/4 male hose thread nozzle
• Stainless steel seat eliminates wire draw
• EPDM packing to prevent leaking

Product Highlights

The Woodford Model 19 wall faucet is designed for year-round residential and irrigation purposes. It features integral backflow protection and a stainless steel seat.

Product Information

Standard Information

• Brand: WOODFORD
• Manufacturer Part Number: 19PX-8-BH
• Country of Origin: USA

Technical Specifications

• Size: 1/2"

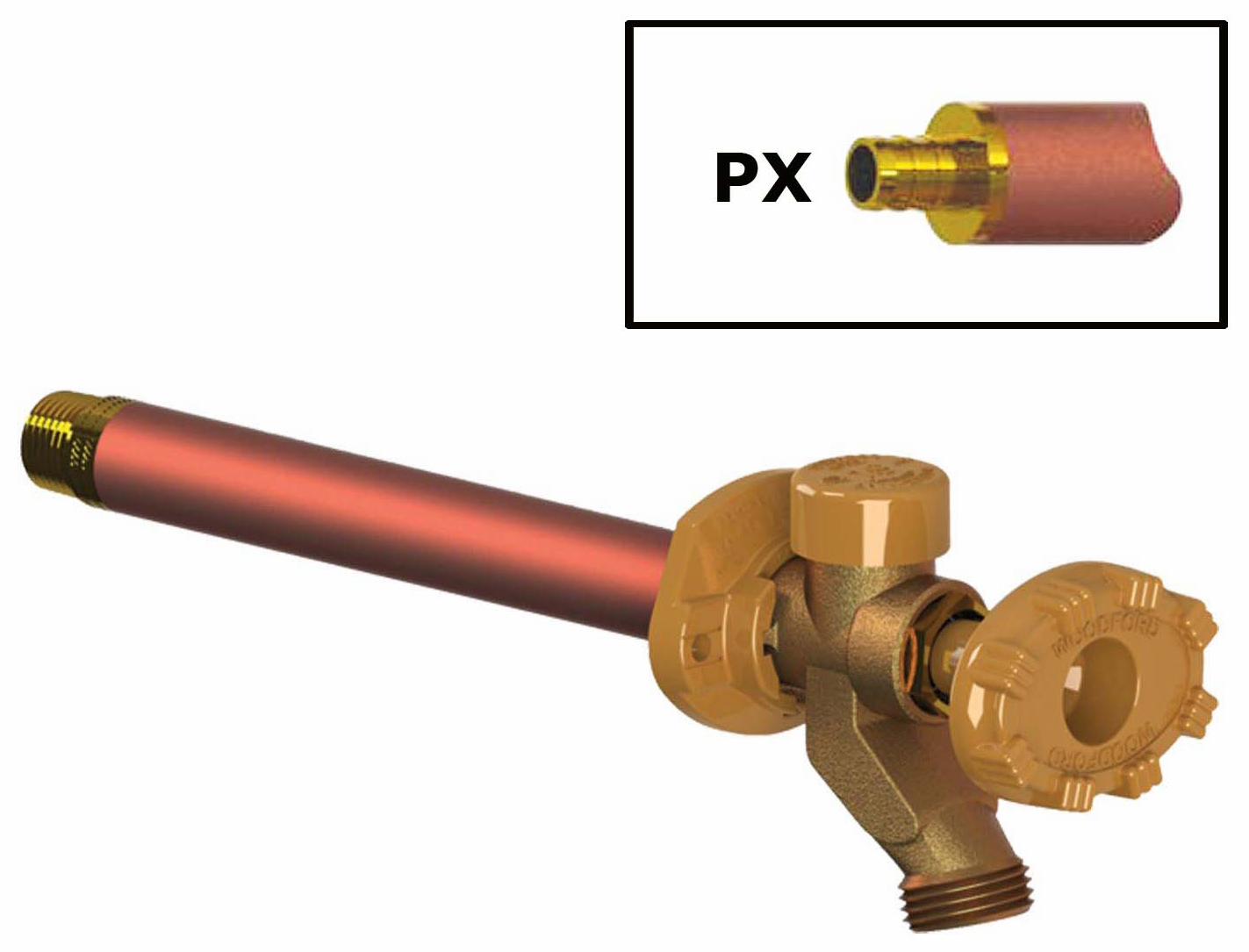

• Inlet Type: PEX Crimp
• Anti-Siphon: Yes
• Max Temp (F): 120°F
• Wall Thickness: 8"
• Max Pressure (PSI): 125
• Freight Class: 60
• Shipping Depth: 15
• Shipping Width: 14
• Shipping Height: 12
• Length (Inches): 8"
• Manufacturer: WCM INDUSTRIES INC
• Brand Name: Woodford
• Part#: WOOD19PX8BH
• MPN: 19PX-8-BH
• UPC: 671090045136
• Min. Order Qty: 1
• Qty. Interval: 1
• Connection Size: 1/2" x 3/4"
• Connection Type: Pex x MHT
• Fitting Length: 8"
• Item Weight: 1.42 lb.
• Item Dimensions: L 12 x W 15 x H 14 (in.)
• Stem Length: 9-7/8"
• Faucet Handle Type: Oval Handle
• Length: 12"
• Material: Stainless Steel
• Mount Type: In-wall
• Number of Handles: Single handle
• Other Info: With Black Handle
• Pressure Rating: 125 PSI
• Product: Hose Bibb
• Style: Anti-Siphon
• Type: Frost Free
• Use: Residential & Irrigation
• Temperature Rating: 120° F
