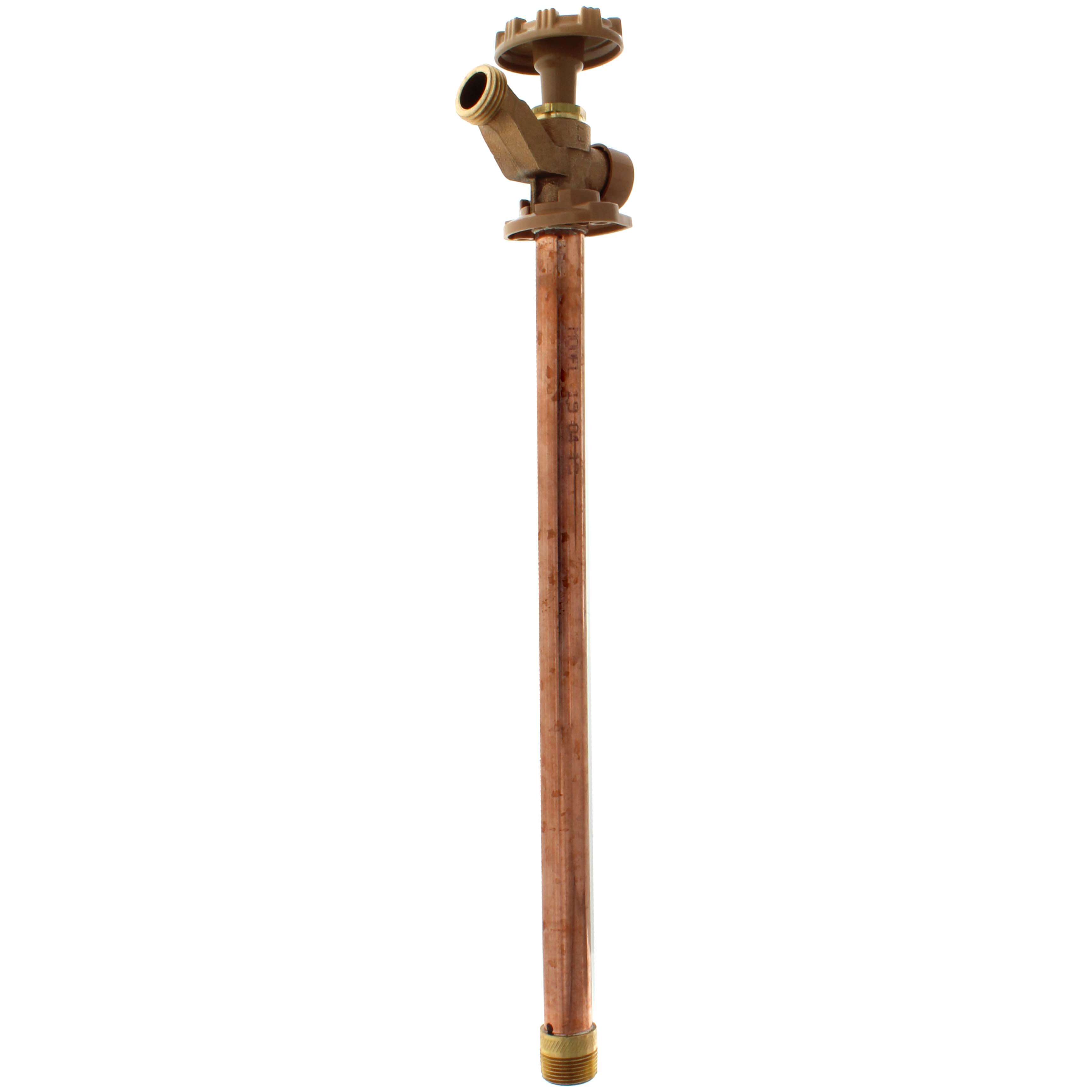

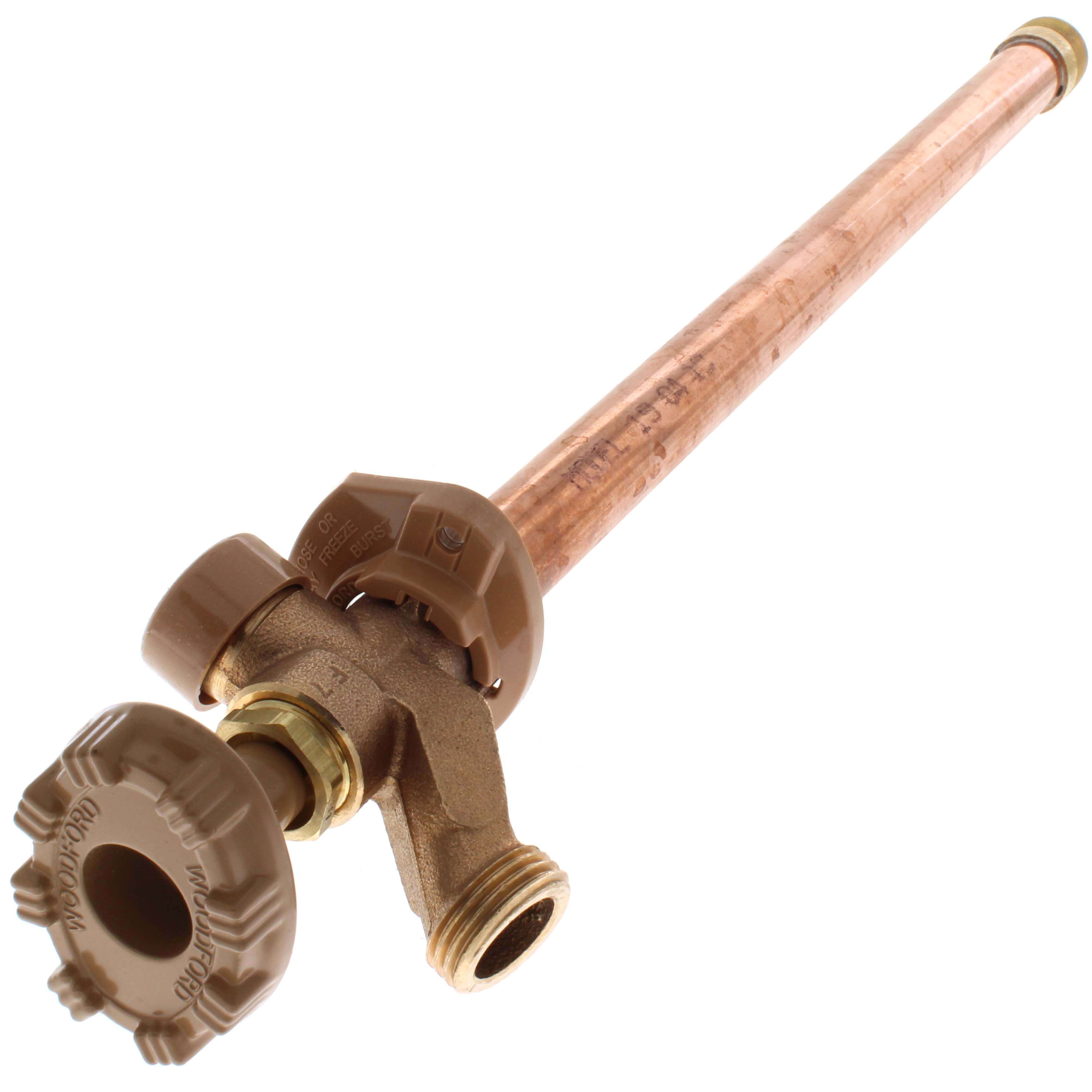

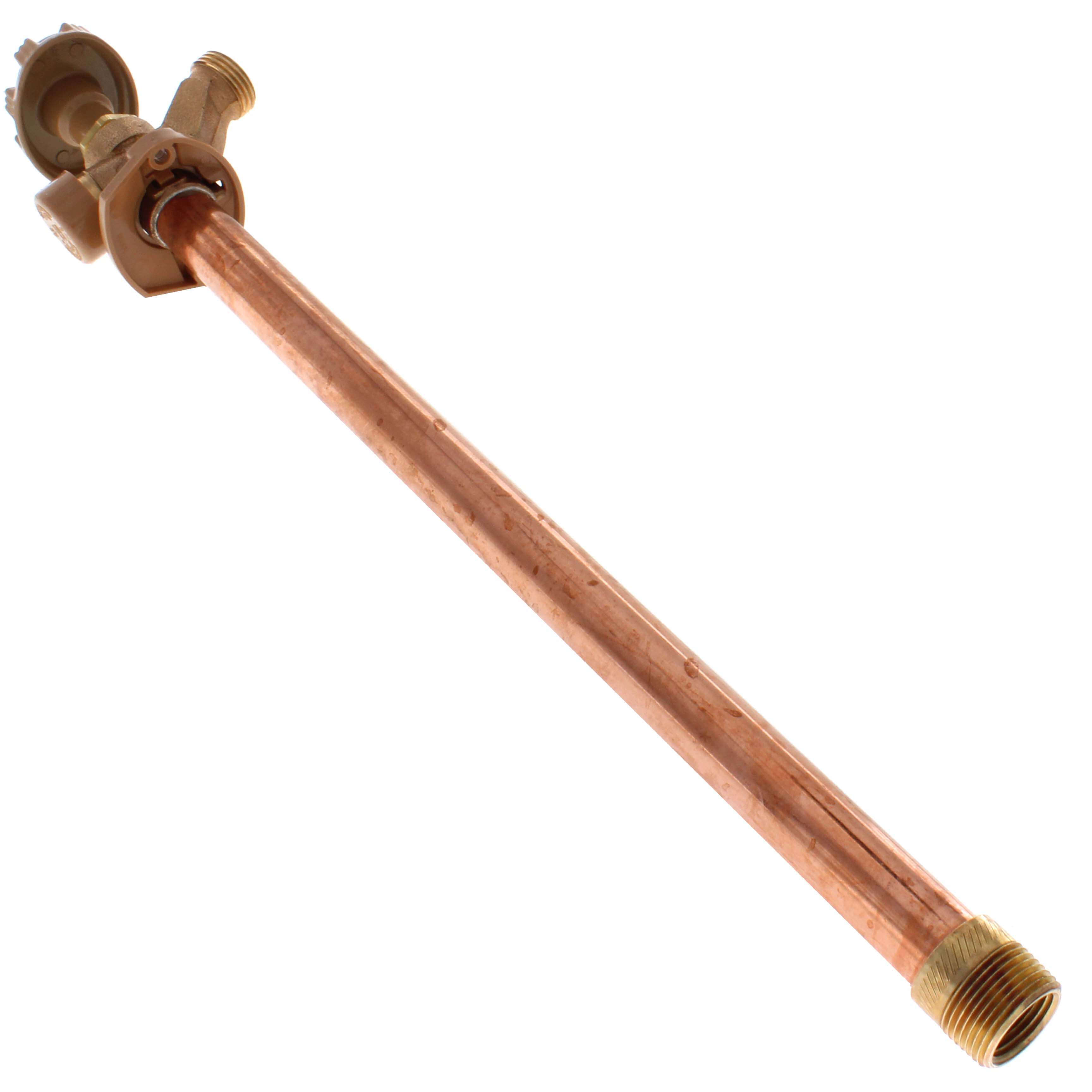

Woodford 19P-14 Model 19 14, 1/2 FPT x 3/4 MPT Inlet Anti-Siphon Wall Faucet w/ Metal Handle

Product Description

The Woodford 19P-14 is a freezeless wall faucet designed for year-round irrigation use. This model features a half-inch female to three-quarter inch male threaded inlet. It includes anti-siphon protection, making it suitable for residential setups regardless of outside temperatures.

• Overall length of product is fifteen and three-eighths inches.
• Integral backflow protection device does not require an add-on vacuum breaker.
• Pressure relief valve prevents faucet tube from bursting in freezing conditions.

Product Highlights

This faucet is ideal for applications where outdoor water access is needed without freezing concerns. It safeguards against backpressure up to one hundred twenty-five psi.

Product Information

Standard Information

• Brand: Woodford
• MPN: 19P-14

Technical Specifications

• Material: Brass
• Inlet Type: FNPT x MNPT
• Outlet Size: Three-quarter inches
• Max Pressure: One hundred twenty-five psi
• Max Temperature: One hundred twenty degrees Fahrenheit
• Application: Residential irrigation
• Specifications Met: ASSE 1019 Type C, CSA Certified, cUPC Approved
