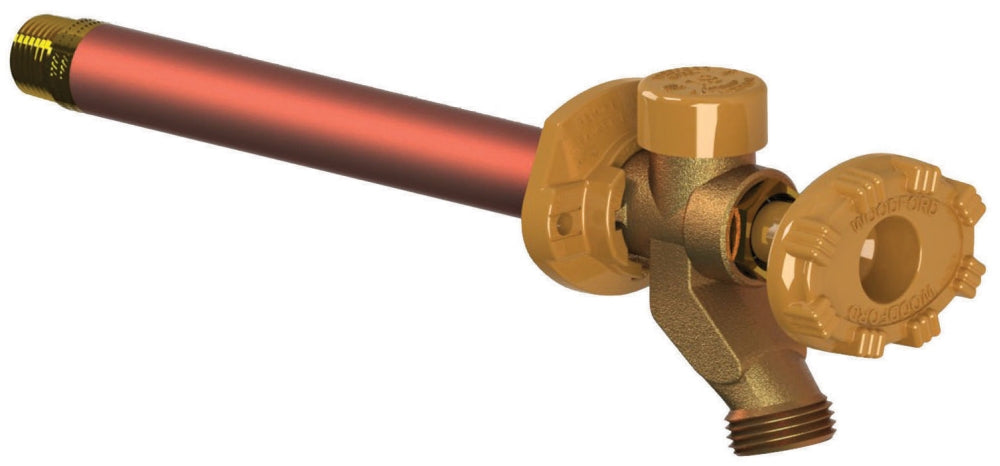

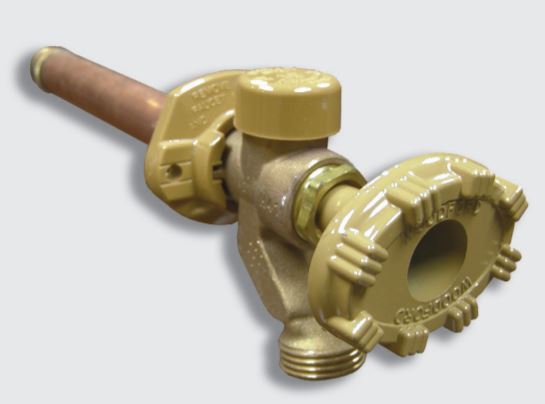

Woodford 19CP-8 Anti-Siphon Freezeless Wall Faucet 1/2 MPT x C 8 Rough-In

Product Description

The Woodford 19CP-8 is a freezeless wall faucet designed for irrigation use. It features a 1/2 inch by 1/2 inch connection with male threaded and female soldered ends. This model includes an integral backflow protection device, which allows it to withstand up to 125 PSI of backpressure.

• Rough-In length of eight inches
• Constructed with stainless steel seat and EPDM packing
• Oval wheel handle for user-friendly operation

Product Highlights

Ideal for year-round residential irrigation and built to prevent freezing, ensuring operational effectiveness in varying temperatures.

Product Information

Standard Information

• Manufacturer: Woodford
• Part Number: 19CP-8

Technical Specifications

• Nominal Size: 1/2 inch x 1/2 inch
• End Connection: Male Threaded x Female Soldered
• Rough-In: 8 inches
• Pressure Rating: 125 PSI
• Seat Material: Stainless Steel
• Packing Material: EPDM
• Handle Material: Powder Coated Die-Cast Aluminum
• Application: Residential Irrigation
• Standards: ASSE 1019-C, CSA, CUPC Certified
• Warranty: 5 years
