Woodford 17W-8-MH Model 17 Anti-Siphon Freezeless Wall Faucet 1/2 In Wirsbo Tube 8 In

Product Description

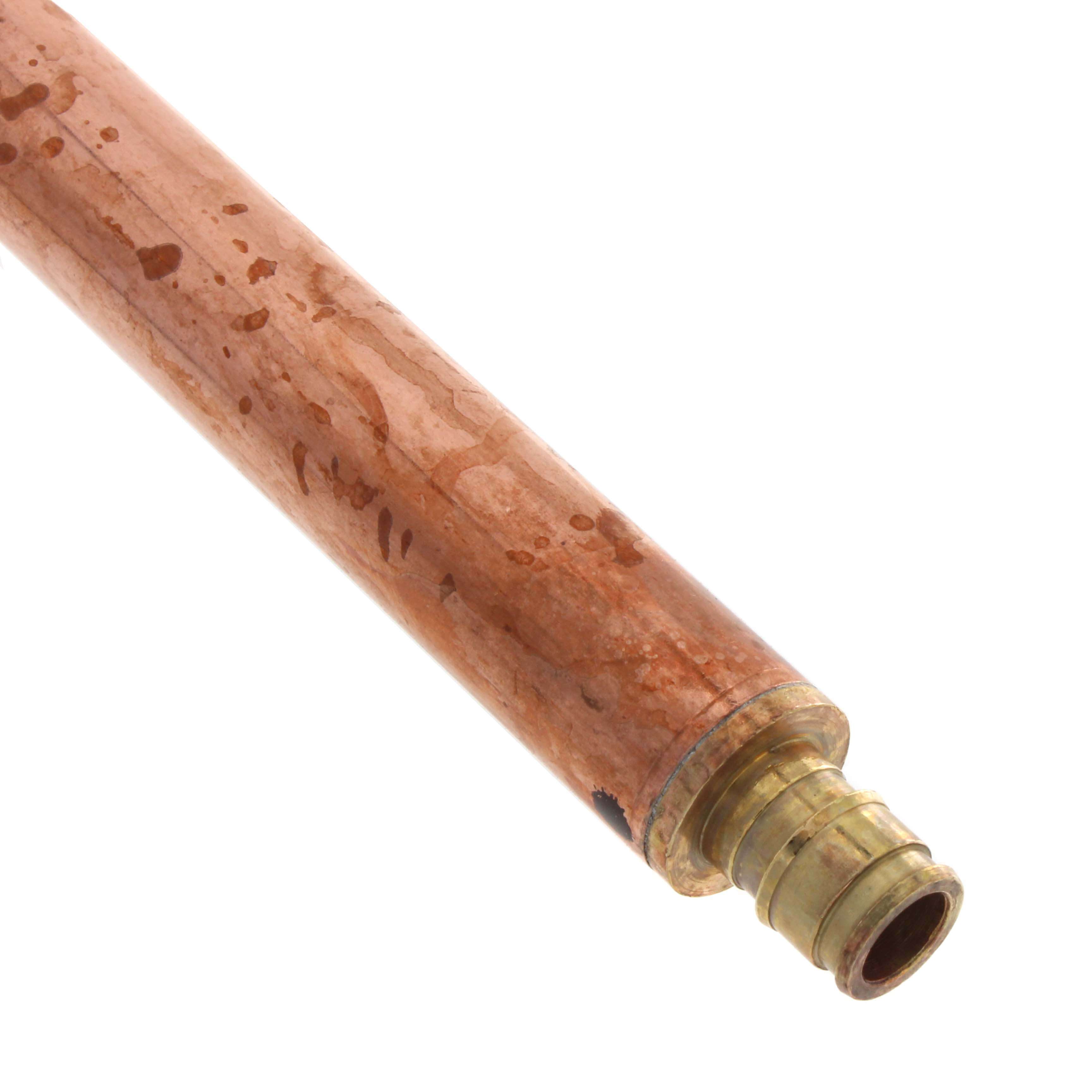

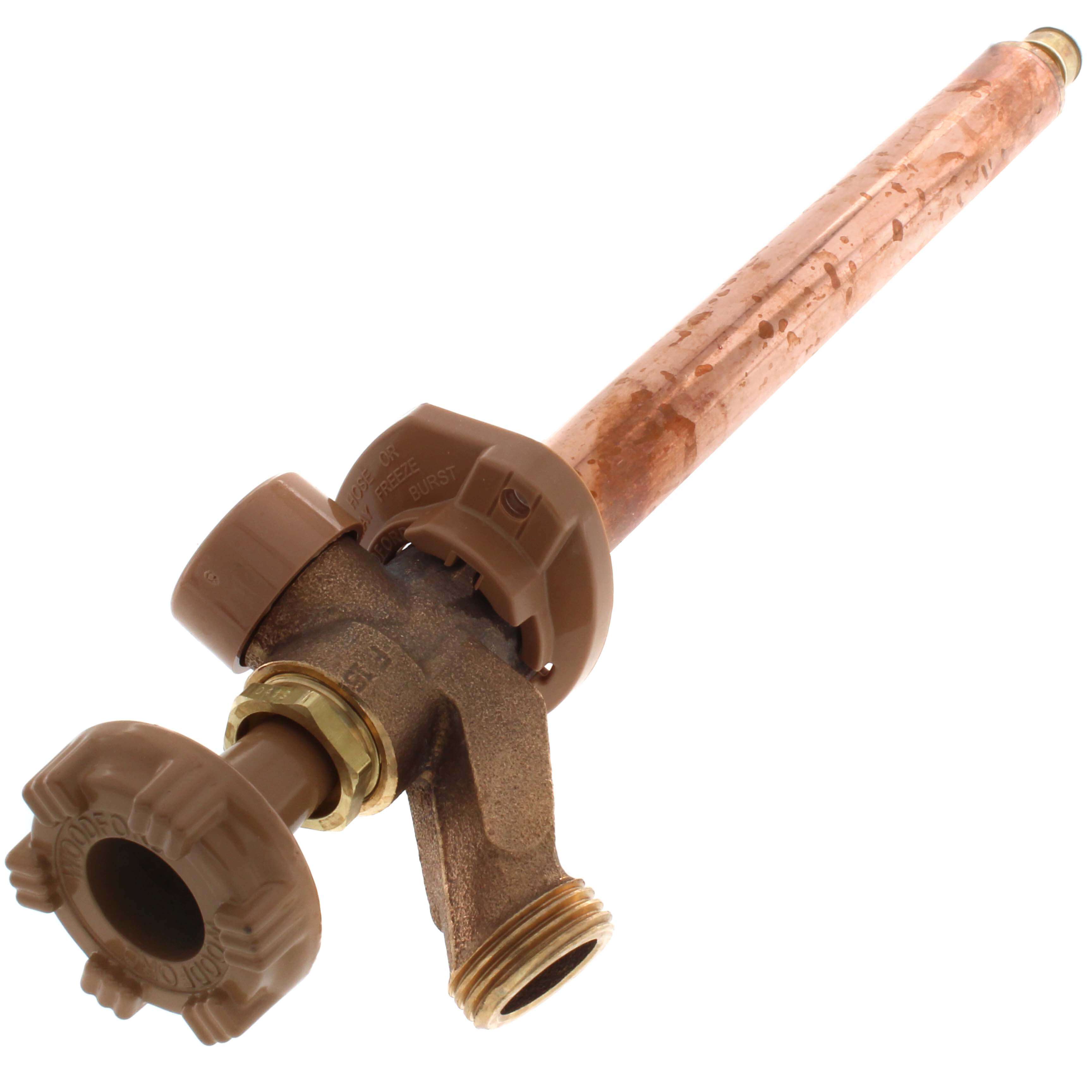

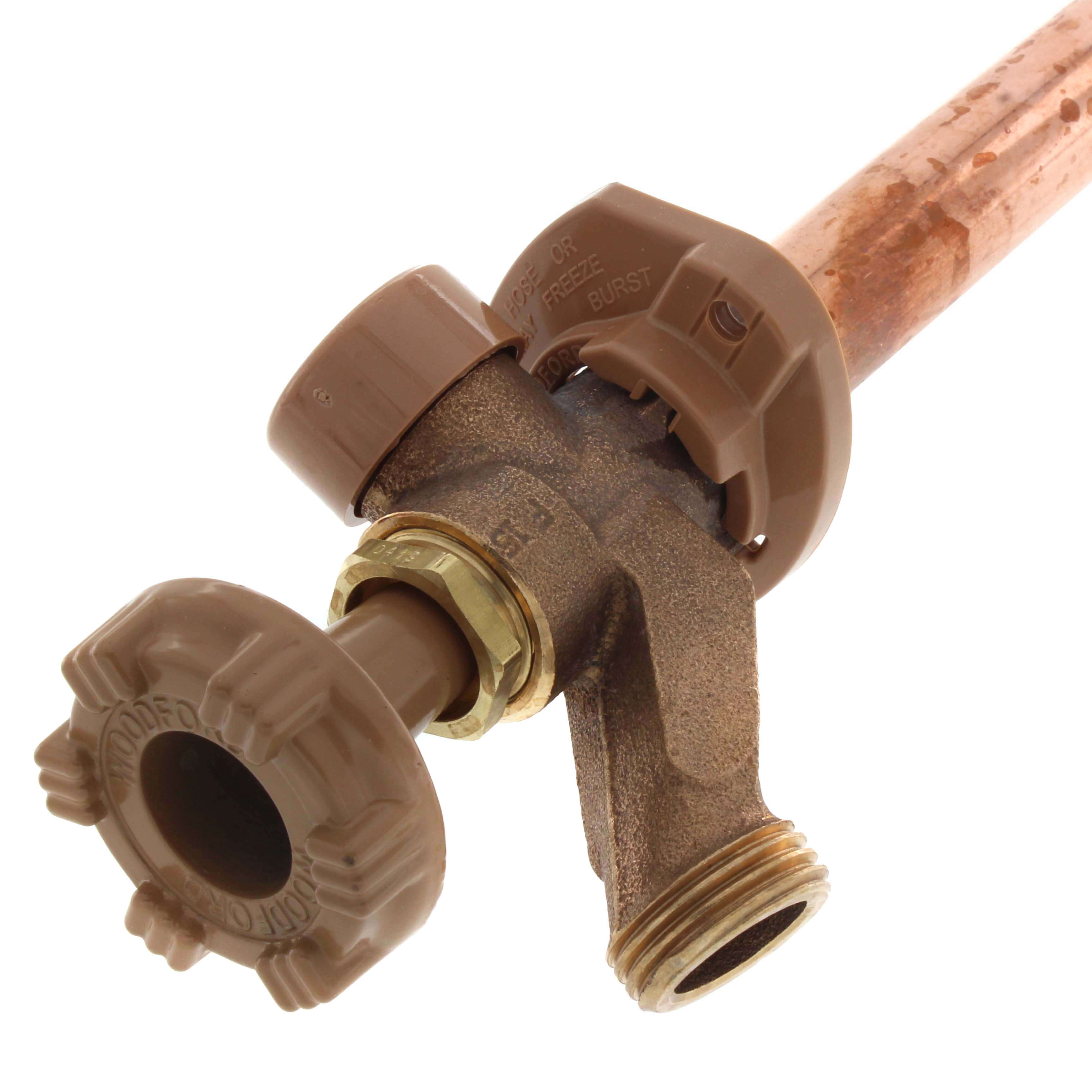

The Woodford 17W-8-MH is a model 17 anti-siphon freezeless wall faucet. This unit features a one-half inch connection and is designed for use with Wirsbo tubing. It is made for an eight-inch thick wall and can withstand water pressure of up to 125 psi.

• Integral backflow protection device
• Freezeless design prevents rupture from freezing
• Adjustable polycarbonate wall flange

Product Highlights

This faucet provides anti-siphon protection and features a stainless steel seat to prevent wire draw. It is suitable for residential irrigation throughout the year regardless of outside temperature.

Product Information

Standard Information

• Brand: Woodford Manufacturing
• Model: 17W-8-MH

Technical Specifications

• Nominal Size: 1/2 in
• Wall Thickness: 8 in
• Pressure Rating: 125 psi
• Max Temperature: 120 deg F
• Type: Anti-Siphon Freezeless
• Inlet Diameter: 15/16 in
• Handle Type: Wheel
• Weight: 1.35 lb
