WOODFORD 17W-8-MH-BP Model 17 Expansion PEX Inlet Anti-Siphon Wall Faucet

Brand: WOODFORD
SKU: 17W-8-MH-BP
Availability: In Stock

Ships same day if ordered by 12 pm

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$62.74
$62.74
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

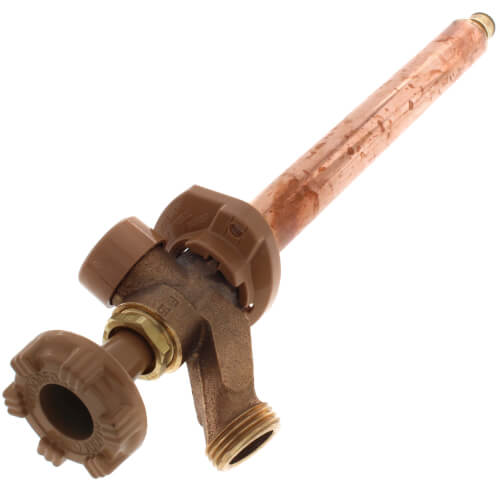

The WOODFORD 17W-8-MH-BP Model 17 is a freezeless wall faucet ideal for year-round residential irrigation. This faucet is designed to prevent ruptures caused by freezing when shut off and the hose is removed. It integrates a backflow protection device which safeguards up to 125 psi of backpressure. This eliminates the need for an add-on vacuum breaker while providing anti-siphon protection.

  • Features a 3/4 inch male hose thread nozzle
  • Includes a stainless steel seat to eliminate wire draw
  • Uses EPDM packing to prevent leaking

Product Highlights

This wall faucet is suitable for irrigation, ensuring reliable use in various residential applications.

Product Information

Standard Information

  • Brand: WOODFORD
  • MPN: 17W-8-MH-BP

Technical Specifications

  • Wall Thickness: 8 inches

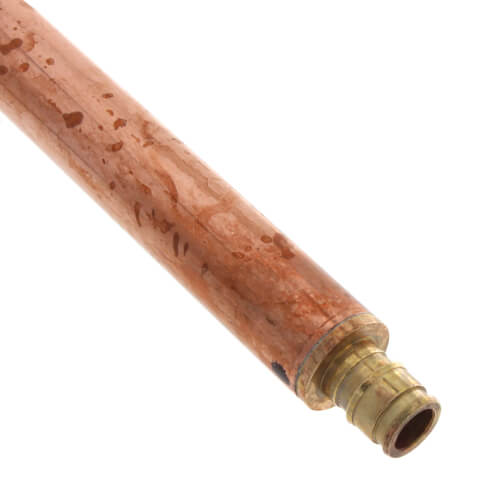

  • Connection Type: ProPEX
  • Length: 9-1/2 inches
  • Size: 1/2 inch
  • Max Pressure: 125 psi
  • Max Temp: 120 degrees F
  • Anti-Siphon: Yes
  • ASSE Standards: ASSE 1019 Type C
  • Collection: Model 17
  • End Connection 1: Barbed
  • End Connection 2: MGHT
  • Handle Material: Powder-Coated Die Cast Aluminum
  • Installation Type: Wall Mount
  • Material: Brass
  • Valve Operator: Hand Wheel
  • Valve Seat Material: Stainless Steel
