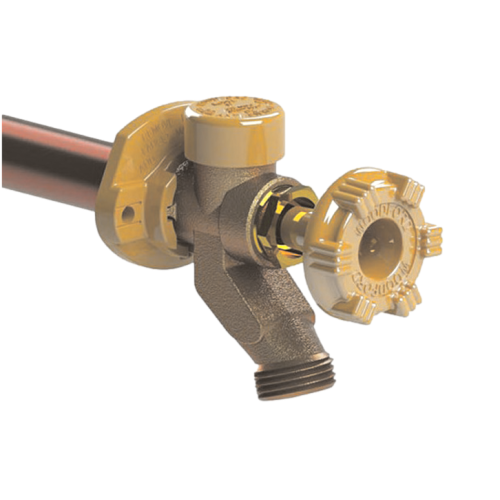

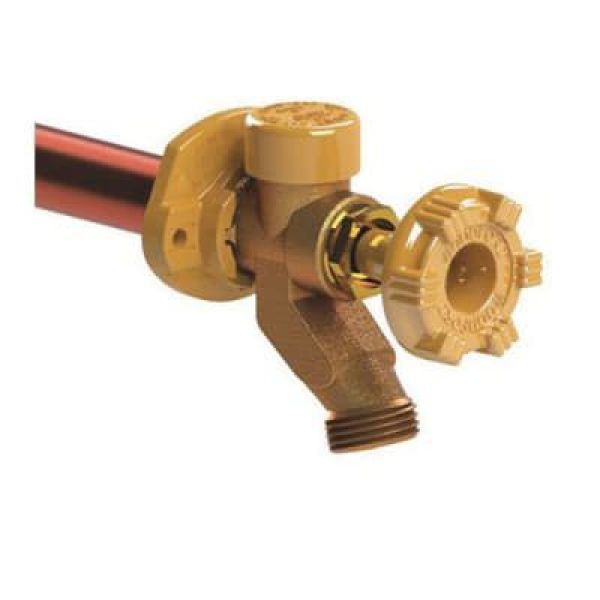

Woodford 17PX3-8-MH Model 17 Wall Faucet 8-in PEX

Product Description

The Woodford 17PX3-8-MH Model 17 is a freezeless anti-siphon protected outdoor wall faucet designed for year-round residential irrigation. This faucet will not rupture from freezing when the valve is shut off and the hose is removed. It contains an integral backflow protection device which protects up to 125 PSI of backpressure.

• Freezeless wall faucet
• Anti-siphon protection
• 3/4" male hose thread nozzle

Product Highlights

Ideal for residential irrigation, the Woodford Model 17 wall faucet offers freezeless and anti-siphon protection with a durable design.

Product Information

Standard Information

• Brand: WOODFORD
• Manufacturer Part Number: 17PX3-8-MH

Technical Specifications

• Thru-Wall Length: 8-in
• Inlet: 3/4 PX3
• MAX PRESSURE: 125 p.s.i.
• MAX TEMPERATURE: 120 deg F
• ASSE 1019: Type C Listed
• CSA: cUPC Approved
• Manufacturer Part Number: 17PX3-8-MH
• UPC: 671090013845
• Actuator Type: Round Wheel Handle
• Brand: WOODFORD
• Connection Type: PEX
• Handle Material: Aluminum
• Lead Free Contains Lead: Lead-Free
• Model: 17
• Nominal Size: 3/4 in
• Packing Material: EPDM
• Pressure Rating: 125 psi
• Seat Material: Stainless Steel
• Standards/Approvals: ASSE 1019 Type C Certified|CSA Certified|cUPC Listed
• Temperature Rating: 120 deg F
• Inlet Style: 3/4" Crimp PEX
• Length: 8 in.
