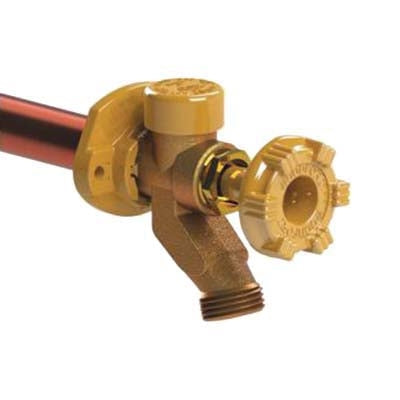

Woodford 17PX-8-MH-BP Anti-Siphon Freezeless Wall Faucet 8 Inch PEX Tube Inlet

Product Description

The Woodford 17PX-8-MH-BP is an anti-siphon freezeless wall faucet. It features an eight-inch wall thickness and a half-inch PEX tube inlet. This faucet is designed for residential irrigation, ensuring no freezing occurs when the valve is shut and the hose is removed.

• Durable construction to withstand freezing temperatures
• Integral backflow protection, rated for up to 125 psi
• Equipped with a powder-coated, die-cast aluminum handle

Product Highlights

This faucet incorporates a stainless steel seat, EPDM packing, and adjustable polycarbonate wall flange for reliable operation.

Product Information

Standard Information

• Brand: Woodford
• Manufacturer: Woodford Manufacturing

Technical Specifications

• Type: Anti-Siphon Freezeless
• Model: 17PX
• Inlet Size: 1/2 inch
• Wall Thickness: 8 inches
• Pressure Rating: 125 psi
• Temperature Rating: 120 degrees F
• Dimensions: 15/16 inch diameter inlet
• Connection Type: PEX
