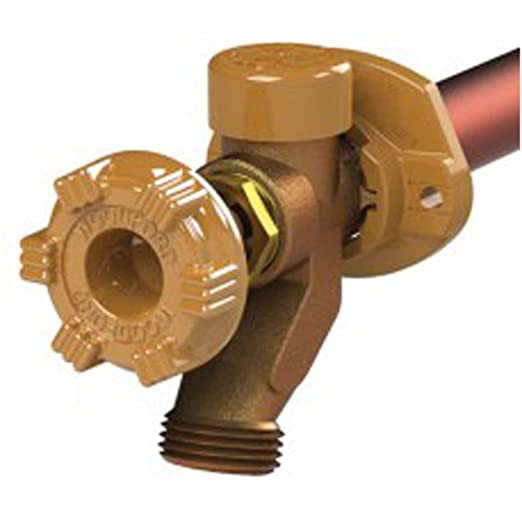

Woodford 17PX-6-PH Model 17 Wall Faucet 6 Inch

Product Description

The WOODFORD 17PX-6-PH Model 17 Wall Faucet features a 1/2 PX inlet and a 6-inch rough-in. Designed for residential water applications, it ensures a reliable and consistent water supply. The faucet includes an adjustable packing nut and full circle threads on the valve body and retainer.

• FREEZELESS WALL TYPE
• Residential Water Application
• Adjustable Packing Nut

Product Highlights

This Woodford wall faucet is ideal for residential use, providing a dependable water source with robust construction.

Product Information

Standard Information

• Brand: WOODFORD
• Manufacturer Part Number: 17PX-6-PH

Technical Specifications

• APPLICABLE STANDARD: ASSE 1019 TYPE C, BOCA-ES, IAPMO
• END CONNECTION: 1/2 INCH PEX X 1/2 INCH PEX X 3/4 INCH MHT
• ACTUATION TYPE: HANDWHEEL
• ROUGH-IN: 6 INCH
• TEMPERATURE RATING: MAXIMUM 120 DEG F
• PRESSURE RATING: MAXIMUM 125 PSI
• NOMINAL SIZE: 1/2 INCH X 3/4 INCH
• HANDLE MATERIAL: POLYCARBONATE
• SEAT MATERIAL: STAINLESS STEEL
• SEAL/PACKING MATERIAL: NON-ST. IMPREGNATED PACKING
