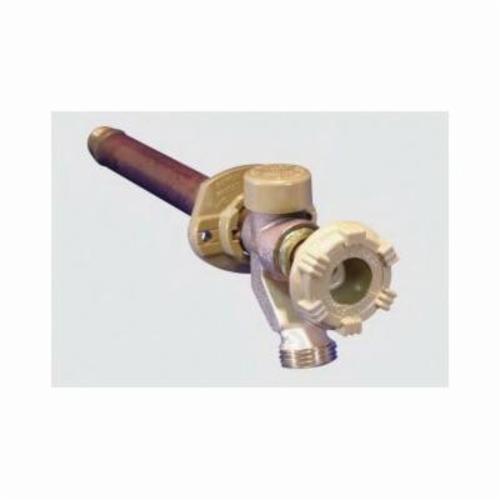

Woodford 17PX-12 Anti-Siphon Freezeless Wall Faucet 1/2 in PEX Tube 12 in THK Wall

Product Description

The Woodford 17PX-12 is an Anti-Siphon Freezeless Wall Faucet designed for irrigation purposes. This faucet features a 1/2 inch PEX tube connection and is suitable for walls with a thickness of 12 inches. It effectively prevents backflow and protects against freezing temperatures.

• Anti-siphon protection included
• Standard 3/4 inch male hose thread nozzle
• Pressure rated at 125 psi

Product Highlights

This model features a stainless steel seat, EPDM packing to prevent leaks, and an adjustable polycarbonate wall flange.

Product Information

Standard Information

• Brand: Woodford
• Part #: M1522

Technical Specifications

• Type: Anti-Siphon Freezeless
• Application: For irrigation purposes
• Dimensions: 15/16 inch Dia Inlet
• End Style: PEX Tube
• Handle Type: Wheel
• Mfg Standards/Approvals: ASSE 1019, CSA Certified, cUPC Certified, UPC Certified
• Nominal Size: 1/2 inch
• Pressure Rating: 125 psi
• Temperature Rating: 120 degrees Fahrenheit
• Wall Thickness: 12 inches
• Warranty: Limited
