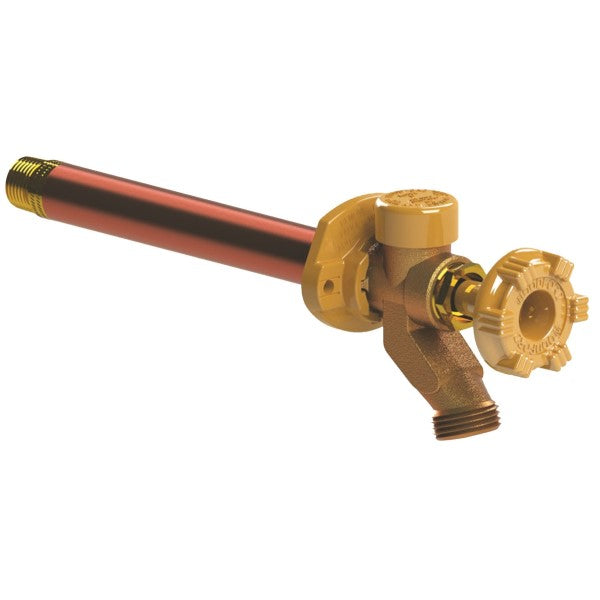

Woodford 17P-8 Anti-Siphon Freezeless Wall Faucet, 1/2 x 3/4 in, FNPT x MNPT, 8 in THK Wall, 125 psi

Product Description

The Woodford 17P-8 Anti-Siphon Freezeless Wall Faucet is designed for irrigation purposes. This valve features a half inch by three fourths inch FNPT x MNPT connection and is built to handle pressures up to one hundred twenty-five psi. The faucet is suitable for use in thick walls measuring eight inches.

• Anti-siphon protection
• Stainless steel seat to eliminate wire draw
• EPDM packing to prevent leaking

Product Highlights

This faucet is ideal for outdoor applications, especially where freezing temperatures are a concern. It must be installed with a downward pitch toward the nozzle to prevent water retention, which could cause freezing and bursting.

Product Information

Standard Information

• Brand: Woodford
• Model: 17P-8

Technical Specifications

• Application: For irrigation purposes
• Dimensions: 1-1/16 inches Diameter Inlet
• Domestic/Import: Domestic
• End Style: FNPT x MNPT
• Handle Style: Wheel
• Nominal Size: 1/2 x 3/4 inches
• Pressure Rating: 125 psi
• Temperature Rating: 120 degrees Fahrenheit
• Type: Anti-Siphon Freezeless
• Wall Thickness: 8 inches
• Warranty: Limited
