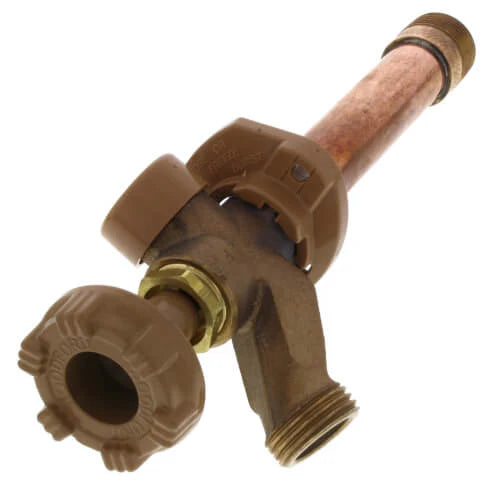

Woodford 17P-4-MH Model 17 4 1/2 FPT x 3/4 MPT Inlet Anti-Siphon Wall Faucet w/ Metal Handle

Product Description

The Woodford 17P-4-MH is a freezeless wall faucet designed for year-round residential irrigation. This faucet is built to withstand freezing without damage when the valve is closed and the hose is disconnected. It features an integral anti-siphon device that prevents backflow, ensuring compliance with plumbing codes. The product has a maximum pressure rating of one hundred twenty-five psi, making it suitable for various irrigation systems.

• Overall length is five and three-eighths inches.
• Includes a stainless steel seat to reduce wear.
• EPDM packing guarantees a leak-free connection.

Product Highlights

This model is ideal for outdoor use in climates with freezing temperatures. Its robust construction and backflow protection make it a reliable choice for irrigation needs.

Product Information

Standard Information

• Application: Residential irrigation
• Inlet Type: FNPT x MNPT

Technical Specifications

• Max Pressure: 125 psi
• Max Temperature: 120 degrees F
• Inlet Size: 1/2 x 3/4 inches
• Outlet Size: 3/4 inches
• Material: Brass
• Weight: 1.13 lbs
• Shipping Dimensions: 13.75 x 3.5 x 2.75 inches
