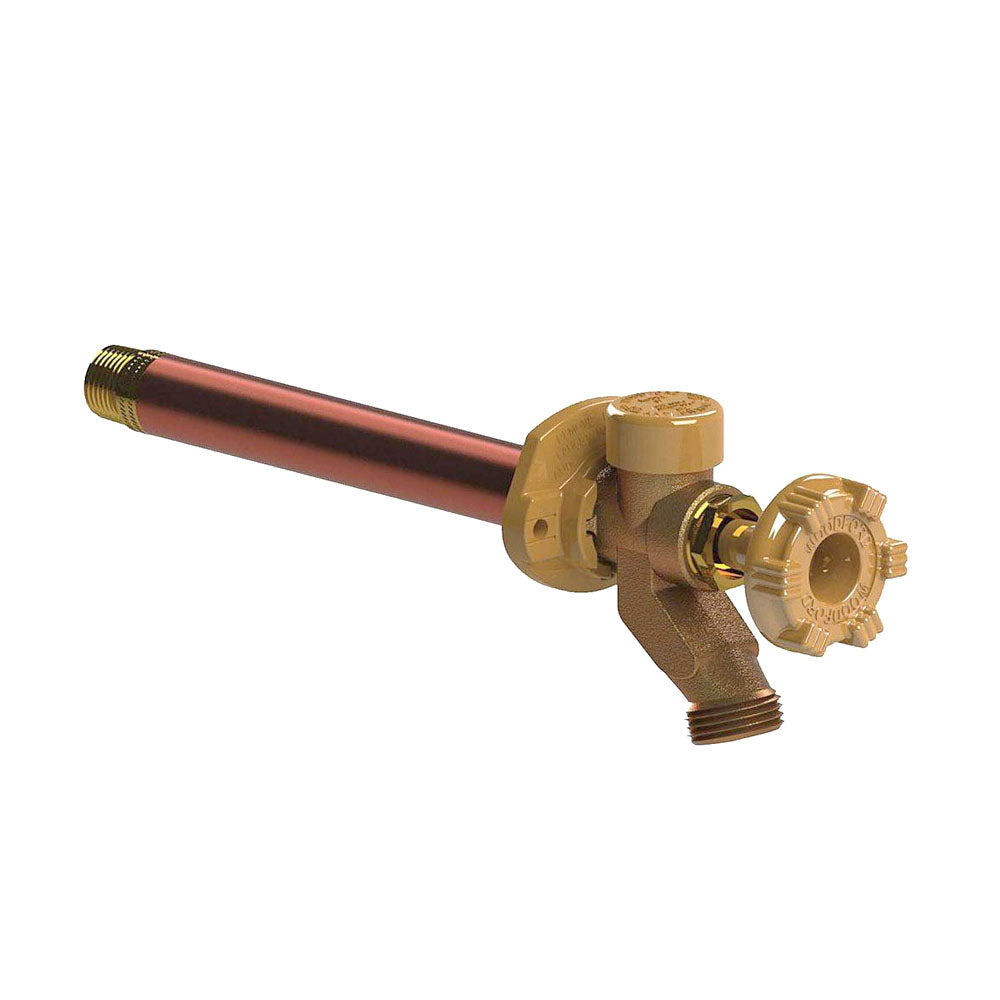

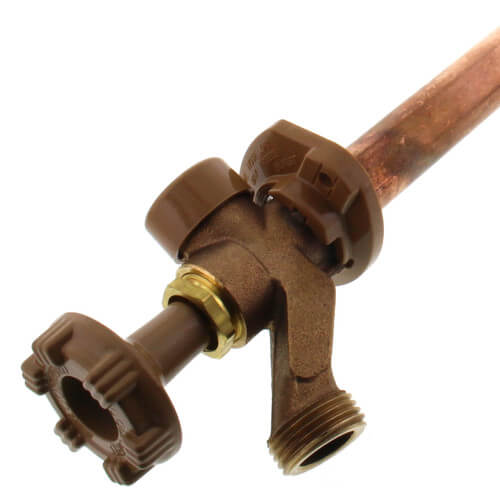

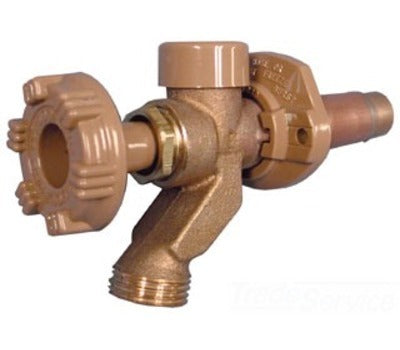

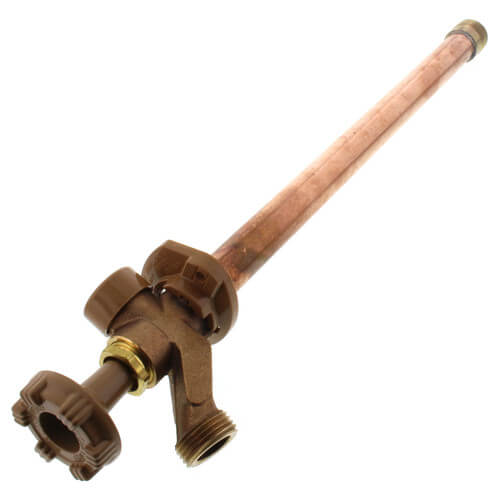

Woodford 17P-12-MH Model 17 Wall Faucet 12 Inlet Anti-Siphon

Product Description

The Woodford 17P-12-MH is a freeze-less model 17 anti-siphon wall faucet designed for year-round residential irrigation purposes. This faucet will not rupture from freezing when the valve is shut off and the hose is removed. It features an integral backflow protection device that supports up to 125 PSI of backpressure, eliminating the need for an add-on vacuum breaker.

• Freezeless design
• Integral backflow protection
• Stainless steel seat to prevent leaks

Product Highlights

This model is equipped with a powder-coated die-cast aluminum handle and utilizes EPDM rubber packing to prevent leaking. Full-circle operating threads ensure a secure fit, while a brass construction provides durability. It is designed for wall thicknesses of 12 inches plus the 1-7/8 inch inlet, bringing the overall length to 13-7/8 inches.

Product Information

Standard Information

• Brand: Woodford
• MPN: 17P-12-MH

Technical Specifications

• Size: 1/2 x 12 inches
• Type: Freezeless Wall Faucet
• Inlet Size: 1/2 FPT x 3/4 MPT
• Outlet Size: 3/4 inches MHT
• Material: Brass
• Maximum Pressure Rating: 125 PSI
• Maximum Temperature Rating: 120 degrees Fahrenheit
• Special Features: Anti-Siphon Protection
