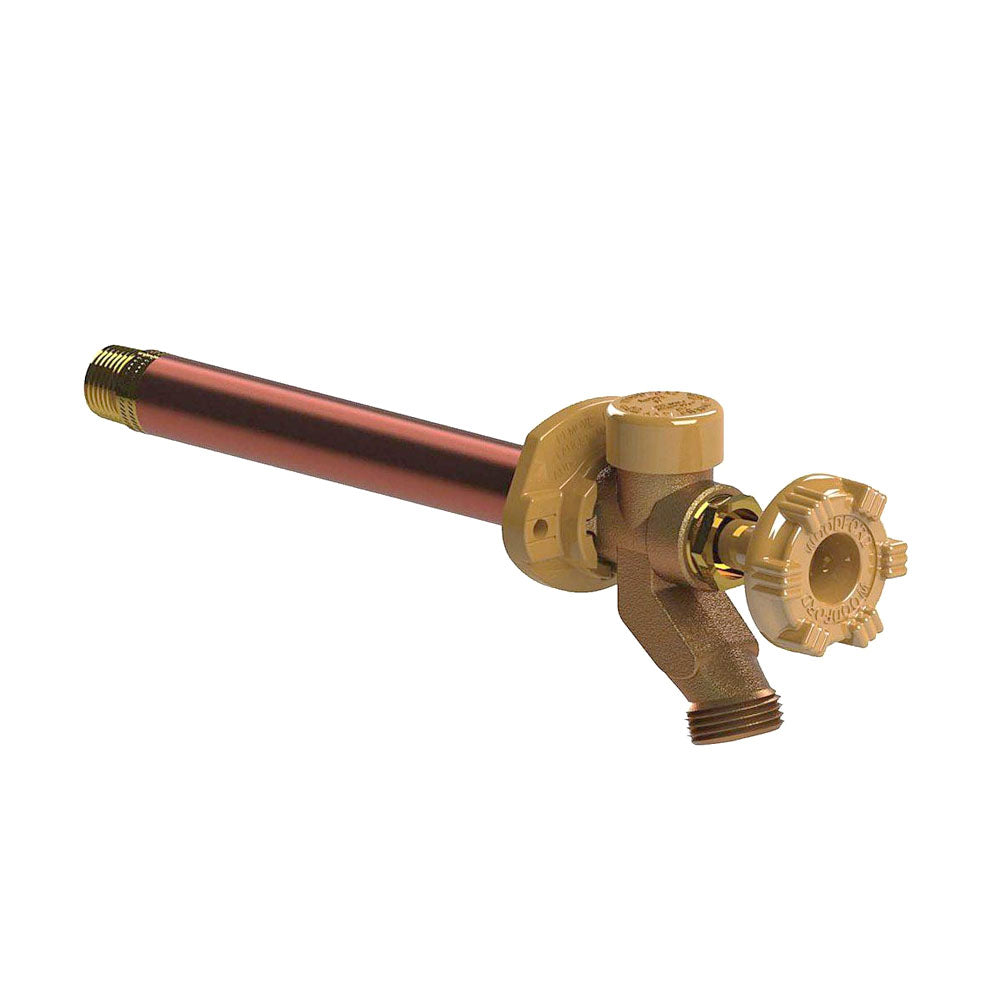

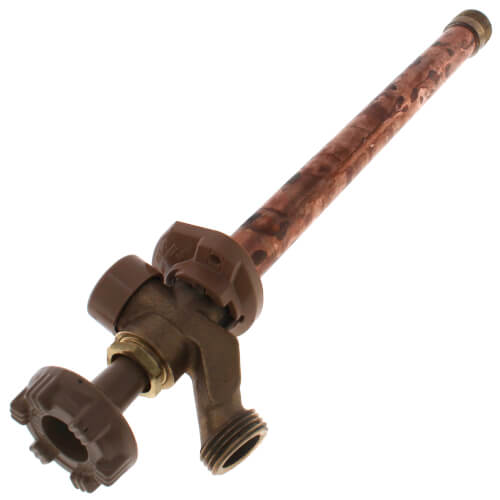

Woodford 17P-10-MH Model 17 Wall Faucet with Anti-Siphon Protection for Irrigation

Product Description

The Woodford Model 17 outdoor wall faucet, MPN 17P-10-MH, is designed for year-round residential irrigation. This freezeless faucet prevents ruptures due to freezing when the valve is shut off and the hose is removed. The anti-siphon design includes an integral backflow protection device, which supports up to 125 PSI of backpressure without requiring an additional vacuum breaker.

• Freezeless design
• Anti-siphon protection
• Integral backflow device

Product Highlights

This faucet is ideal for residential use, providing reliable year-round irrigation. The stainless steel seat eliminates wire draw, and the EPDM rubber packing prevents leaking. The brass construction ensures durability, and the powder-coated, die-cast aluminum handle is designed for strength.

Product Information

Standard Information

• Brand: Woodford Manufacturing
• MPN: 17P-10-MH
• Type: Freezeless Wall Faucet
• Application: Residential Irrigation

Technical Specifications

• Inlet Size: 1/2 x 3/4 inches
• Inlet Type: FPT x MPT
• Outlet Size: 3/4 inches
• Outlet Type: Male Hose Thread
• Maximum Pressure Rating: 125 PSI
• Maximum Temperature Rating: 120°F
• Material: Brass
• Size: 10 inches
