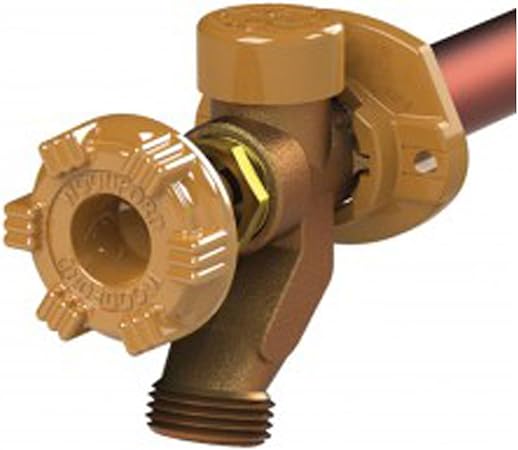

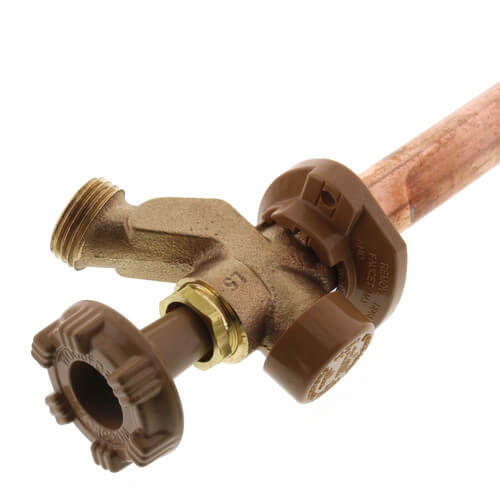

Woodford 17CP Model 17 10 inches Wall Faucet 1/2 inches MPT x Sweat Inlet

Product Description

The WOODFORD 17CP Model 17 is designed for year-round residential irrigation, regardless of outside temperature. This freezeless faucet will not rupture from freezing when the valve is shut off and the hose is removed. It contains an integral backflow protection device which protects up to 125 psi of backpressure, eliminating the need for an add-on vacuum breaker.

• 1/2" Copper Sweat Fitting : K, L, or M Inside
• 3/4” male hose thread nozzle
• Stainless steel seat eliminates wire draw

Product Highlights

The Model 17 wall faucet features EPDM packing to prevent leaking, full circle operating threads, and a powder-coated, die-cast aluminum handle. Adjustable polycarbonate wall flange. Max temperature of 120 ° F.

Product Information

Standard Information

• Brand: WOODFORD
• Manufacturer Part Number: 17CP
• Country of Origin: USA

Technical Specifications

• Wall Thickness: 10"
• Product Type: Wall Hydrant
• Size: 1/2"
• Length (Inches): 11-1/4"
• Inlet Type: Sweat x MNPT
• Max Pressure (PSI): 125
• Max Temp (F): 120 °F
• Anti-Siphon: Yes
• Outlet Size: 3/4"
• Outlet Type: Garden Hose Thread
• Lead Free: No
• Application: Residential
• Recommended Uses For Product: Outdoor
• Mounting Type: Wall Mount
• Finish Type: Powder Coated
• Material: Aluminum
• Number of Handles: 1
• Included Components: faucet-parts-and-attachments
• Hole Count: 1
• Style: Classic
• Model Name: 17CP-10-MH
• Model Number: 17CP-10-MH
• UPC: 671090014095
• Global Trade Identification Number: 00671090014095
• Item Type Name: 17CP-10-MH
• Unit Count: 1.0 Count
• Spout Reach: 10 Inches
• Hose Length: 10 Inches
