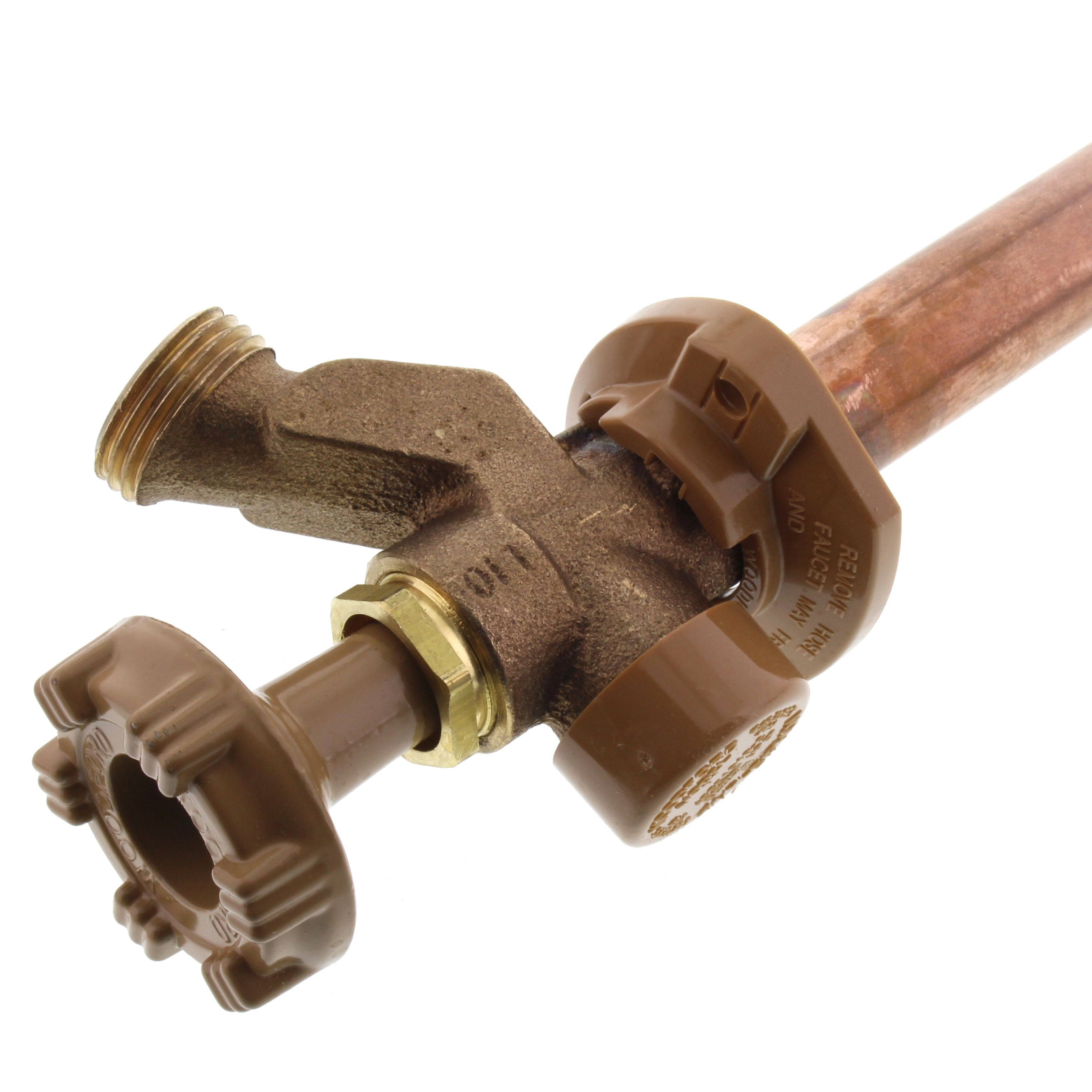

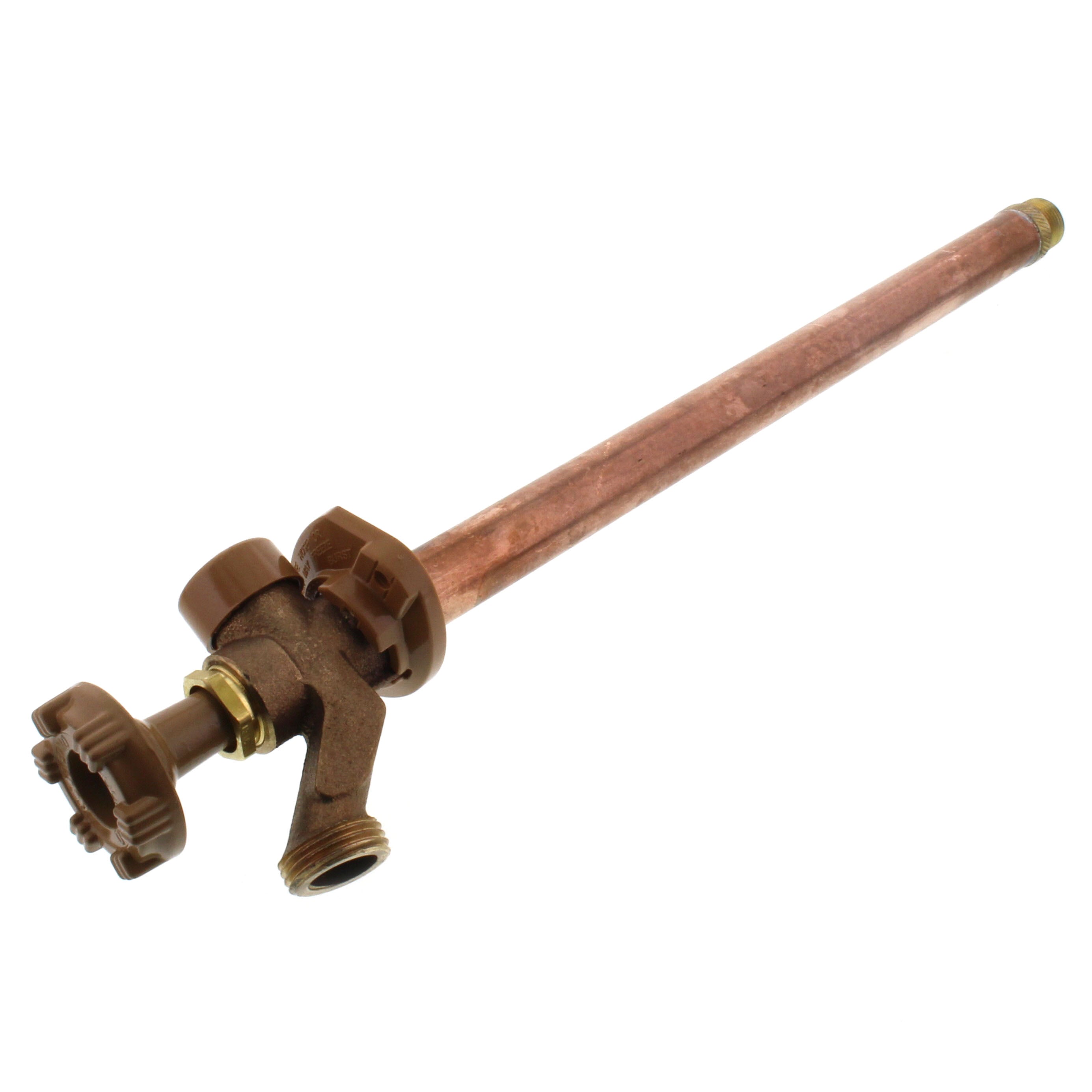

Woodford 17CP-24-MH Model 17 Anti-Siphon Wall Faucet 24 inch 1/2 inch Metal Handle

Product Description

The WOODFORD 17CP-24-MH Model 17 Anti-Siphon Freezeless Wall Faucet is designed for year-round residential irrigation and outdoor watering. This faucet features anti-siphon protection and an integral backflow prevention device, protecting up to 125 psi of backpressure, eliminating the need for an add-on vacuum breaker. It is engineered to prevent rupturing from freezing when the valve is shut off and the hose is removed, even in cold temperatures. It is suitable for a 24-inch wall thickness and has a 1/2-inch nominal size.

• Anti-siphon protection and integral backflow prevention device protect up to 125 PSI.
• Freezeless design prevents rupturing from freezing when valve is shut off and hose removed.
• Designed for year-round residential irrigation and outdoor watering applications.

Product Highlights

Offers anti-siphon protection and freezeless operation for residential irrigation, featuring a metal handle and 1/2 inch nominal size.

Product Information

Standard Information

• Brand: WOODFORD
• Manufacturer Part Number: 17CP-24-MH
• Country of Origin: US

Technical Specifications

• Nominal Size: 1/2 inch
• Lead Free: No

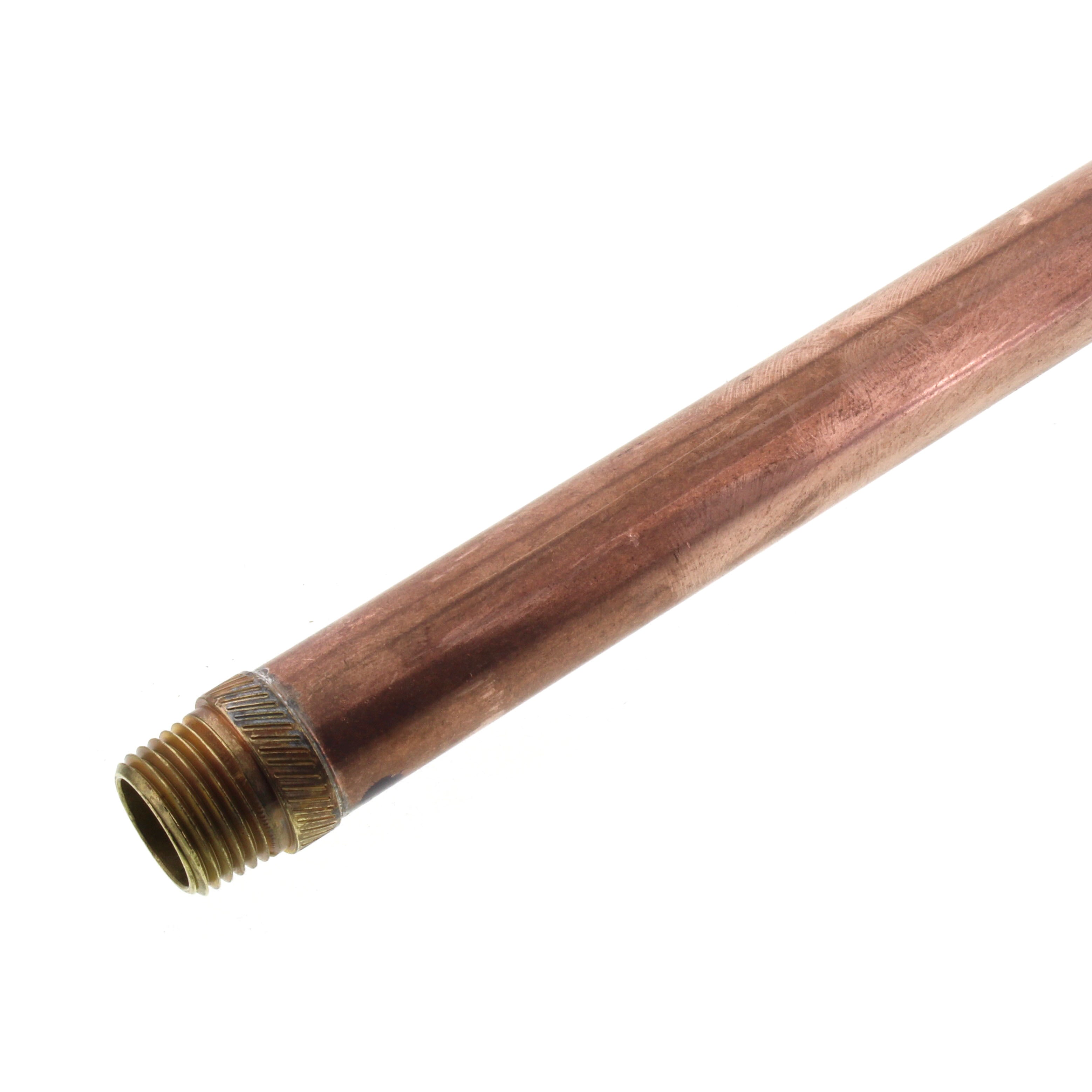

• Inlet Type: Sweat x MNPT
• Anti-Siphon: Yes
• Application: Residential
• Outlet Type: Garden Hose Thread
• Max Temperature: 120°F
• Product Type: Wall Hydrant
• Wall Thickness: 24 inch
• Max Pressure: 125 psi
• End Style: Combination MNPT x Female C
• Inlet Diameter: 15/16 inch
• Handle Type: Wheel
• Series: Model 17
• Type: Anti-Siphon Freezeless
• Certifications: ASSE 1019 Type C Listed, CSA, cUPC Approved
• Domestic/Import: Domestic
