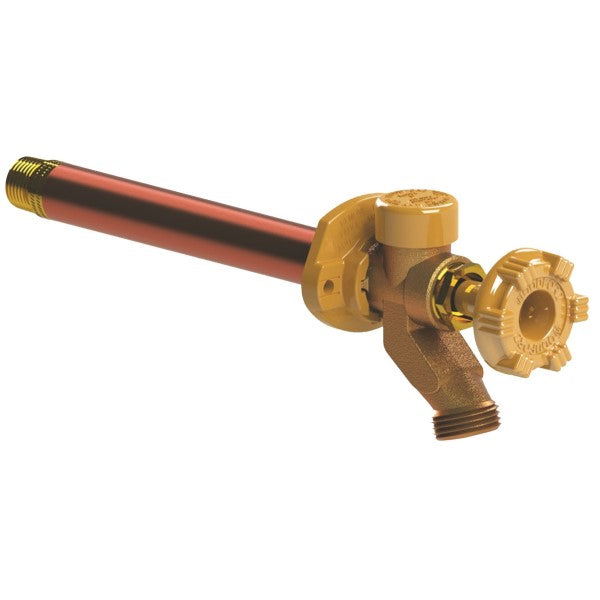

Woodford 17CP-14 Anti-Siphon Freezeless Wall Faucet, 1/2 in, MNPT x Female C, 14 in THK Wall, 125 psi

Product Description

The Woodford 17CP-14 is an anti-siphon freezeless wall faucet designed for irrigation purposes. It features a one-half inch nominal size with MNPT x female connections and is ideal for installation in areas where freezing temperatures can be a concern.

• 3/4 inch male hose thread nozzle
• Stainless steel seat to eliminate wire draw
• EPDM packing to prevent leaks

Product Highlights

This faucet must be installed with a downward pitch towards the nozzle. Hose removal in freezing weather is necessary to prevent freezing and bursting.

Product Information

Standard Information

• Brand: Woodford
• Part Number: M1500

Technical Specifications

• Application: For irrigation purposes
• Dimensions: 15/16 inch Dia Inlet
• Domestic/Import: Domestic
• End Style: MNPT x Female C
• Handle Style: Wheel
• Mfg Standards/Approvals: ASSE 1019 Type C Listed | CSA Certified | cUPC Listed
• Nominal Size: 1/2 inch
• Pressure Rating: 125 psi
• Temperature Rating: 120 degrees F
• Type: Anti-Siphon Freezeless
• Wall Thickness: 14 inches
• Warranty: Limited
