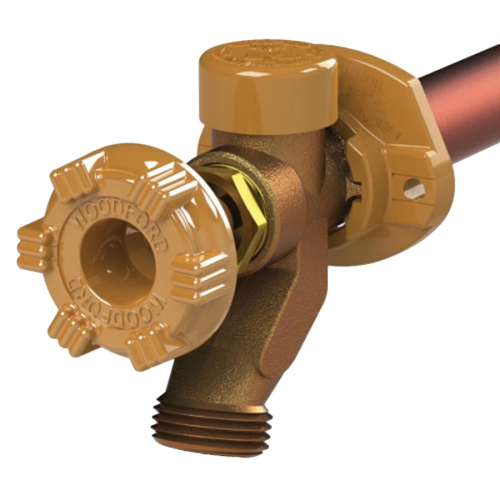

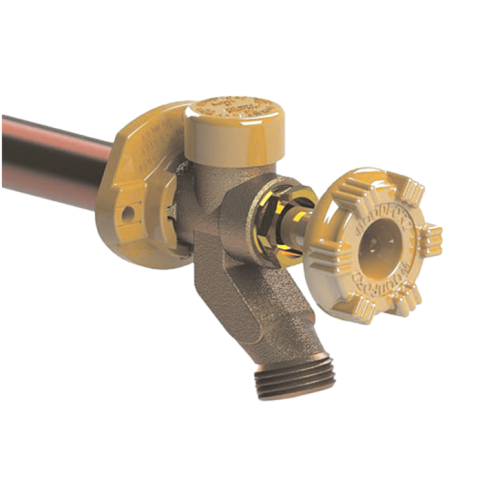

Woodford 17C-24-MH Model 17 Freezeless Wall Faucet 24 Inch

Product Description

The Woodford 17C-24-MH Residential Wall Faucet is a freezeless wall faucet that provides a water supply for outside tasks throughout the year, even in freezing conditions. It is suitable for rinsing, cleaning, and gardening. The integral back flow protection device eliminates the need for an add-on vacuum breaker. This faucet has a rough-in mounting depth of 24".

• Features a 3/4" male hose thread nozzle
• Stainless steel seat eliminates wire draw
• Full circle operating threads on valve body and retainer

Product Highlights

The Woodford 17C-24-MH is designed for year-round residential irrigation, preventing ruptures from freezing. It includes integral backflow protection and is made in the USA.

Product Information

Standard Information

• Brand: WOODFORD
• Manufacturer Part Number: 17C-24-MH
• Country of Origin: USA

Technical Specifications

• Brand: Woodford
• Mounting Type: Wall Mount
• Material: Aluminum, Copper
• Number of Handles: 1
• Included Components: Handle
• Part Number: 17C-24-MH
• Item model number: 17C-24-MH
• Item Package Quantity: 1
• Inlet Style: 1/2" & 3/4" Copper SWT
• Length: 24 in
• Model: 17
• Inlet Size: C Inlet
• Manufacturer: Woodford
• Inlet C: Copper Sweat Fitting 1/2” K, L or M Inside 3/4” M Only Outside
• Domestic/Import: Domestic
• End Style: Combination C
• Handle Type: Wheel
• Nominal Size: 1/2 or 3/4 in
• Pressure Rating: 125 psi
• Series: Model 17
• Temperature Rating: 120 deg F
• Type: Anti-Siphon Freezeless
• Wall Thickness: 24 in
