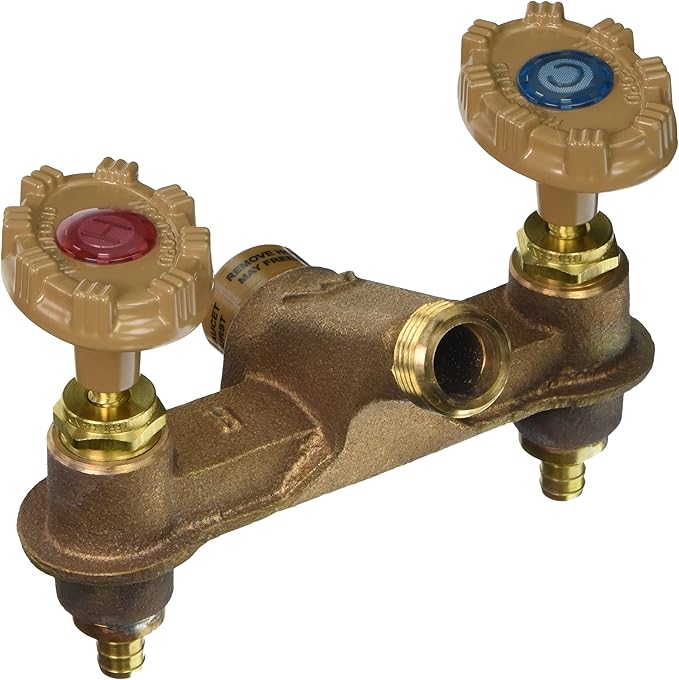

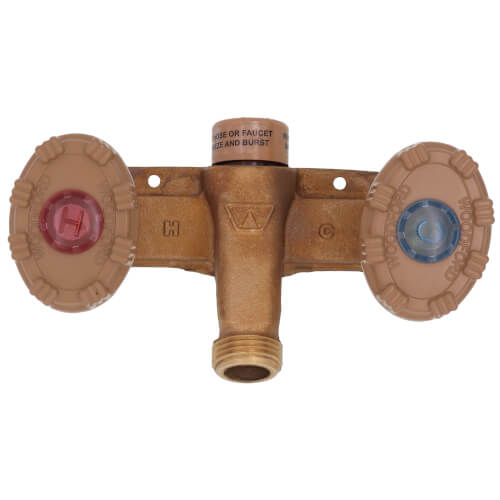

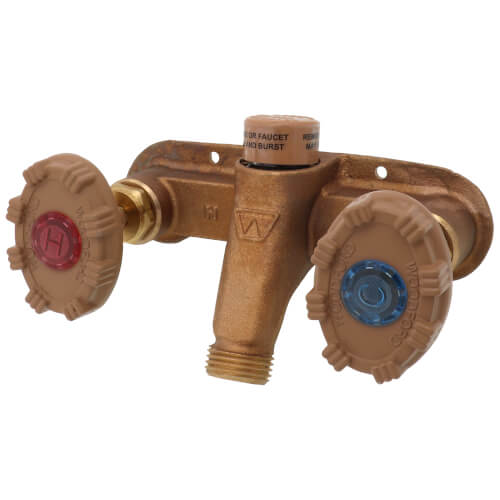

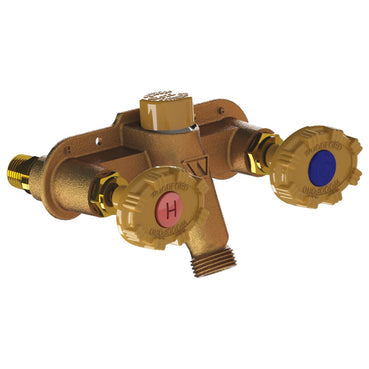

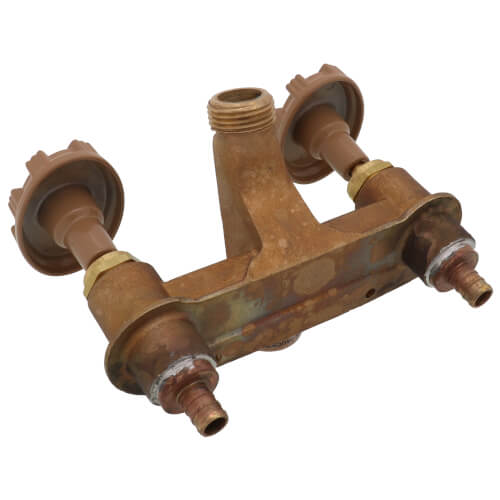

Woodford 122PX Model 122 1/2 inches PEX Inlet Horizontal Hot & Cold Anti-Siphon Wall Faucet

Product Description

The Woodford 122PX Model 122 provides hot and cold water service in areas where freezing is not expected. This model is suitable for both exterior and interior applications in residential structures. It features separate hot and cold inlets with operating handles for manual temperature control, making it ideal for irrigation use.

• 3/4 inch male hose nozzle for easy connection
• EPDM packing with adjustable packing nut for leak prevention
• Available with five inlet options for installation flexibility

Product Highlights

The Woodford 122PX Model allows for effective temperature management, enhancing the irrigation process.

Product Information

Standard Information

• Brand: Woodford
• Model: 122PX

Technical Specifications

• Size: 1/2 inches x 1/2 inches
• Inlet Type: PEX
• Max Pressure: 125 PSI
• Max Temperature: 120°F
• Mount Type: Horizontal
• Lead Free: No
• Outlet Type: Garden Hose Thread
• Outlet Size: 1/2 inches
• Mounting Type: Wall Mount
• Material: Aluminum
• Number of Handles: 1
• Included Components: Handle
• Special Feature: PEX inlets for connection to types B and C PEX tubing
• Style: Model 122PX hot and cold faucet
• Spout Height: 2 inches
• Spout Reach: 8.5 inches
• Handle Location: Center
• Spout Design: Traditional straight spout
• Anti-siphon: Yes, with integral check and atmospheric vent
• Hose Nozzle: 3/4 inch male
• Packing: EPDM packing with adjustable packing nut
• Solder: No lead solder on all solder joints
• Seat Washer: Standard 'O' size
• Handles: Powder coated die-cast aluminum oval handles
