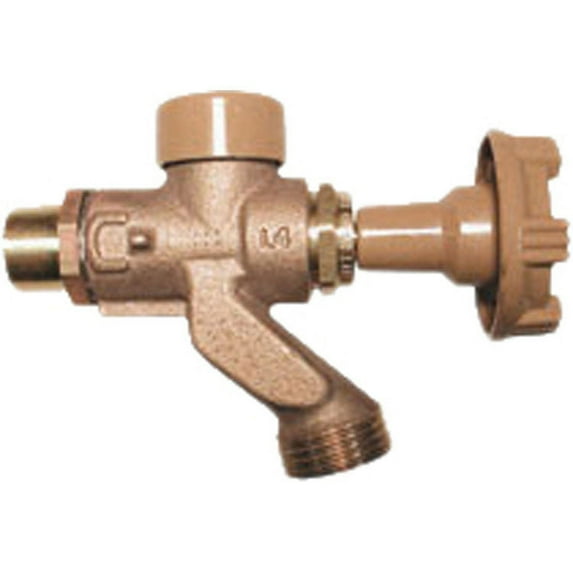

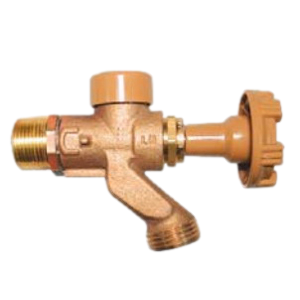

Woodford 101P Model 101 Anti-Siphon Wall Faucet 3/4 inches MPT x 1/2 inches FPT

Product Description

The WOODFORD 101P is a Model 101 anti-siphon protected wall faucet designed with the classic Woodford look for irrigation purposes in mild climate areas. It utilizes Woodford atmospheric vent and patented check to provide anti-siphon protection. This feature eliminates the need for an add-on vacuum breaker that restricts flow.

• IAPMO Listed
• 3/4” male hose thread nozzle
• EPDM packing with adjustable packing nut

Product Highlights

The Woodford 101P is designed for irrigation purposes in mild climate areas. It has anti-siphon protection with integral check and atmospheric vent. It is ASSE Standard 1019-Type C approved and UPC / IAPMO listed.

Product Information

Standard Information

• Brand: WOODFORD
• Manufacturer Part Number: 101P

Technical Specifications

• Size [Features]: 1/2" x 3/4"
• Lead Free [Features]: No
• Inlet Type [Features]: FNPT x MNPT
• Outlet Size [Features]: 3/4"
• Outlet Type [Features]: Garden Hose Thread
• Max Temp (F) [Features]: 120°F
• Max Pressure (PSI) [Features]: 125
• Shipping Depth [Dimensions]: 4.45
• Shipping Width [Dimensions]: 4.25
• Shipping Height [Dimensions]: 4.2
• Type: Freezeless
• Nominal Size: 3/4 x 1/2 Inch
• End Style: MPT x FPT
• Pressure Rating: 125 psi
• Handle Style: Die Cast Aluminum Wheel
• Length: 8 Inch
• Temperature Rating: 120 deg F
• Material: Brass
• Includes: Wall Flange
• Manufacturer Part Number: 101P
• Inlet Style: 3/4" MPT & 1/2" FPT
• Model: 101
• Spout type: Wall-Mounted
• Brand: Woodford
• Features: Anti-Scald
