Wiring SHC1026 Cord Connector 0.50-0.63 Inch

Product Description

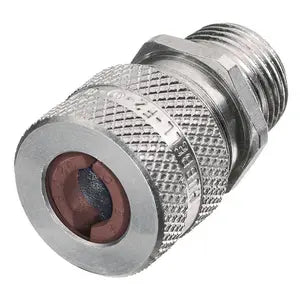

The WIRING SHC1026 cord connector is a straight male type with a 1/2 Inch NPT thread size. Constructed from machined aluminum, it accommodates cord sizes from 0.5 to 0.63 inches. It is suitable for hazardous locations and has a temperature rating of -30 to 225 Deg F. The enclosure is NEMA 4/4X/12/13, IP66 rated.

• Straight Male Type
• 1/2 Inch NPT Thread Size
• Machined Aluminum Material

Product Highlights

Durable aluminum cord connector with knurled finish for easy handling. Lightweight design and UL listing maintained by hand tightening.

Product Information

Standard Information

• Brand: WIRING
• Manufacturer Part Number: SHC1026

Technical Specifications

• Type: Straight Male
• Thread Size: 1/2 Inch NPT
• Material: Machined Aluminum
• Cord Size: 0.5 to 0.63 Inch
• Size: 1.38 Inch Dia x 2.05 Inch L
• Approval: UL 514B, CSA
• Application: Hazardous Location
• Temperature Rating: -30 to 225 Deg F
• Enclosure: NEMA 4/4X/12/13, IP66
• Catalog Number: SHC1026
• Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
• EU RoHS Indicator: Yes
• Item Type: Cord Connectors
• Material - Mounting Hardware: Locknut or Tapped Opening
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Performance: Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
• Series: Standard Duty Series
• UPC: 783585200262
• Hub Size: 1/2 "
• Conductor Range: 0.5-0.63 in (12.7-15.9 mm)
• Number of Conductors: Single
• Industry Standard(s): UL Listed
• Nema Rating: NEMA Type 4, 4X, 12 and 13
