Product Description

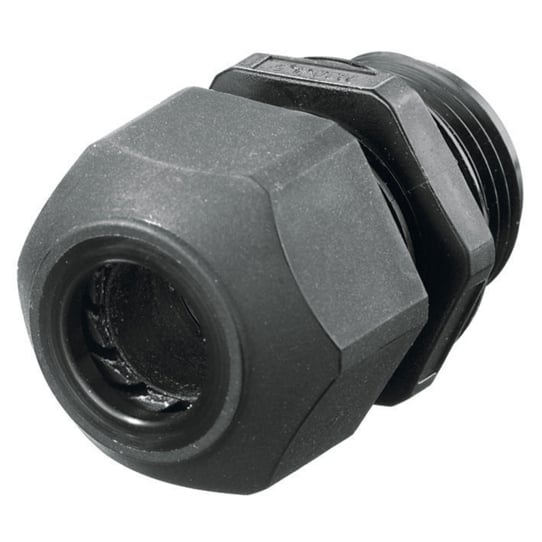

The WIRING SEC75BA cord connector is a straight male type with a 3/4 Inch NPT thread size. Constructed from black nylon, it accommodates cord sizes from 0.45 to 0.71 inches. It is suitable for hazardous locations and is UL 514B and CSA approved. The connector's dimensions are 1.42 inches in diameter x 2 inches in length.
- Straight Male Type
- 3/4 Inch NPT Thread Size
- Suitable for Hazardous Locations
Product Highlights
This nylon cord connector features a straight male design with a 3/4 Inch NPT thread, suitable for hazardous locations.
Product Information
Standard Information
-
Brand: WIRING
-
Manufacturer Part Number: SEC75BA
-
Country of Origin: United States
Technical Specifications
-
Type: Straight Male
-
Thread Size: 3/4 Inch NPT
-
Material: Black Nylon
-
Cord Size: 0.45 to 0.71 Inch
-
Size: 1.42 Inch Dia x 2 Inch L
-
Approval: UL 514B, CSA
-
Application: Hazardous Location
-
Temperature Rating: -22 Deg F to 225 Deg F (-30 Deg C to 107 Deg C)
-
Catalog Number: SEC75BA
-
Manufacturer: Hubbell Wiring Device-Kellems
-
Brand: Hubbell Wiring Device - Kellems
-
Country of Origin: United States
-
Made in USA: Yes
-
Conductor Range: 0.45-0.71 in (11.4-18.0 mm)
-
Finish: Smooth
-
Mounting: Locknut Or Tapped Opening
-
Number of Conductors: Single
-
Special Features: Standard Product
-
Standard: UL Listed
-
UPC: 783585018164
-
GTIN: 00783585018164
-
Item Type: Connector
-
Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
