Wiring L630c hubw l630c nema l6-30c connector

Product Description

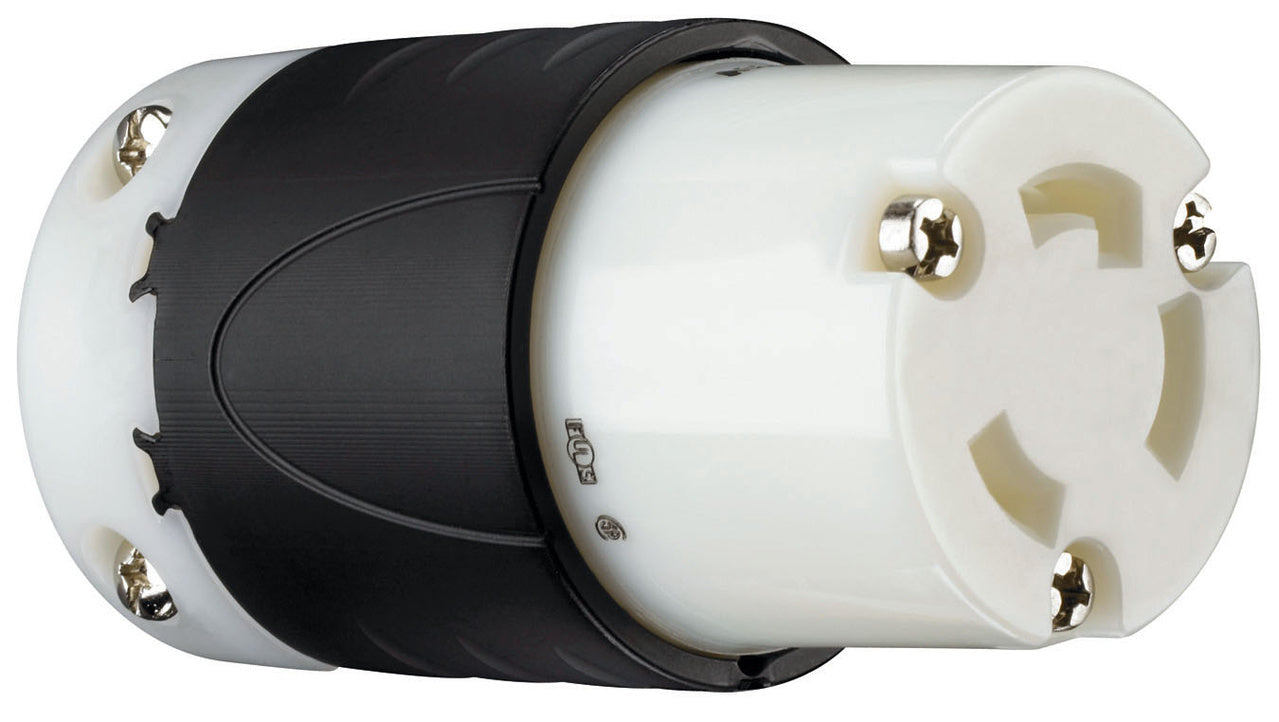

The WIRING L630C is a locking device connector with a NEMA L6-30R configuration. Rated at 250 Volt AC and 30 Amp, this connector features a nylon construction and is suitable for cords sized 0.3 to 0.95 inches. It is designed with 2 poles and 3 wires, and includes grounding.

• Locking Device Connector
• NEMA L6-30R Configuration
• 250 Volt AC Voltage Rating

Product Highlights

This connector is UL 498 and CSA C22.2 approved and RoHS compliant, ensuring safety and environmental standards are met. Its durable construction and reliable performance make it suitable for various industrial applications.

Product Information

Standard Information

• Brand: WIRING
• Manufacturer Part Number: L630C
• Country of Origin: Mexico

Technical Specifications

• Configuration: NEMA L6-30R
• Voltage Rating: 250 Volt AC
• Current Rating: 30 Amp
• Number of Poles: 2
• Number of Wires: 3
• Ground Type: Grounding
• Material: Nylon
• Cord Size: 0.3 to 0.95 Inch
• Approval: UL 498, CSA C22.2
• RoHS Compliant: True
• Enclosure Rating: NEMA 1, IP20
• Contact Material: Brass
• Operating Temperature: -40 to 60 Deg C
• Applicable Standard: Federal Specification WC-596
• Type: Connector
• Application Sector: Industrial
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Corrosion Resistant: Yes
• Standard: UL 498, FEDSPEC
• UPC Number: 785007263015
• Amperage: 30 A
• Flanged: No
• Connector Style: Locking
• Indoor/Outdoor: Indoor
• NEMA Configuration Code: L6-30R
• Terminal Accommodation: #4 AWG
• Voltage: 250.0 V
• cULus ListingNumber: 146159
• cULus Listed: Yes
• Product Environmental Profile: Yes
