Product Description

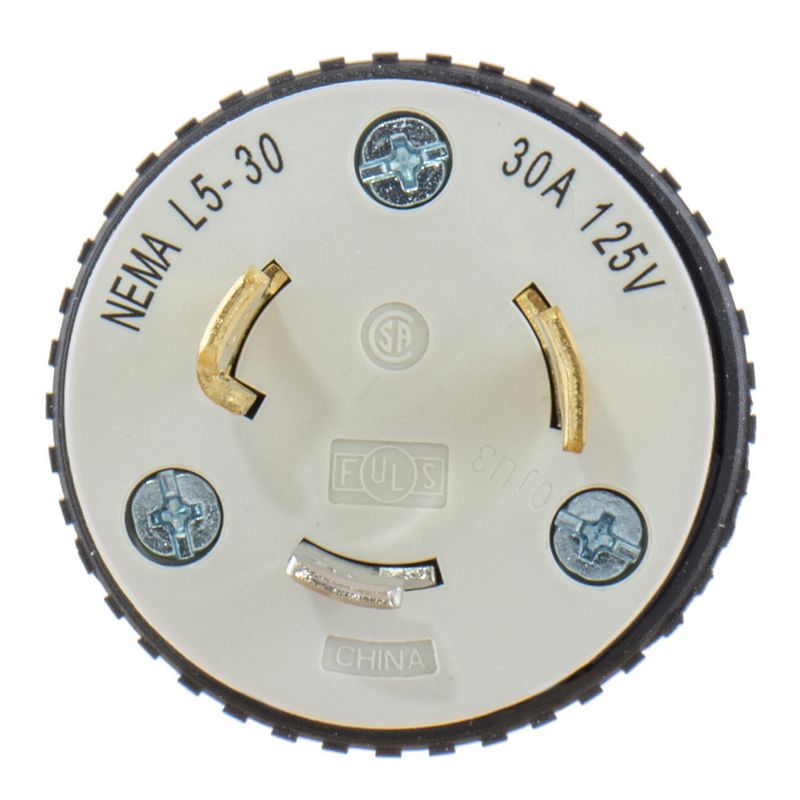

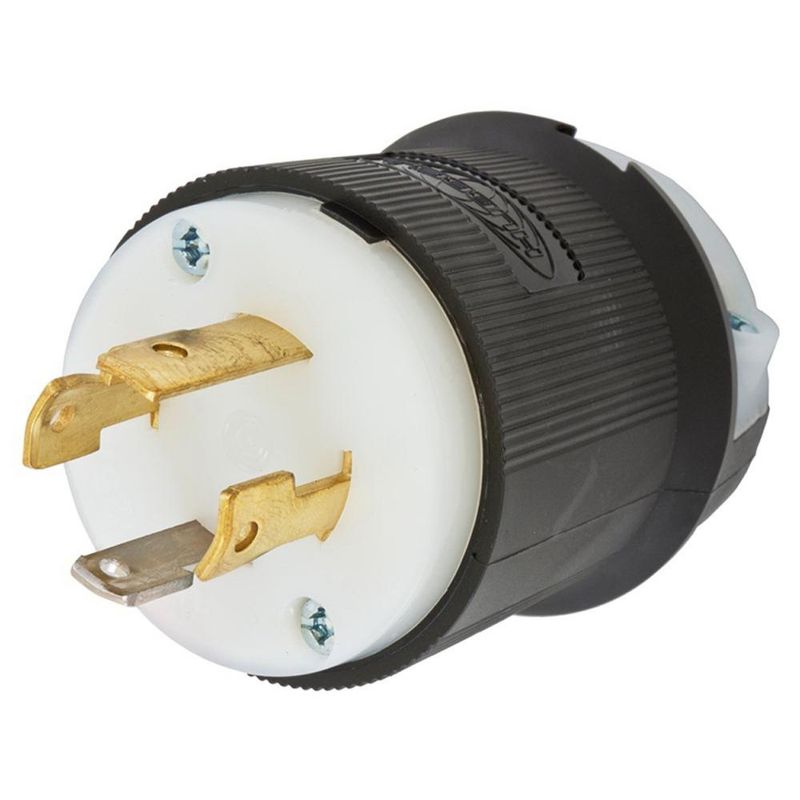

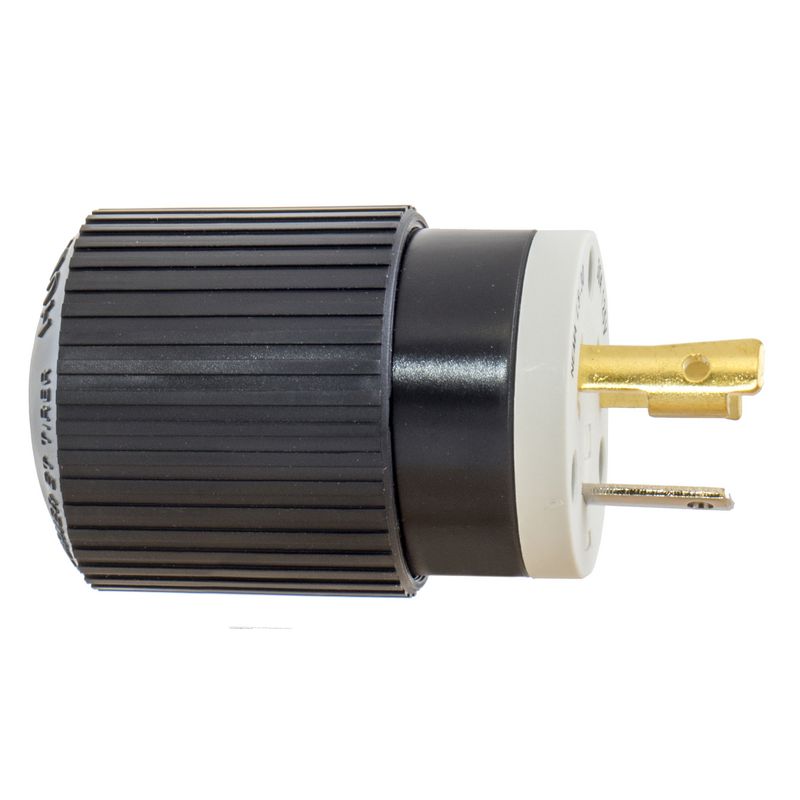

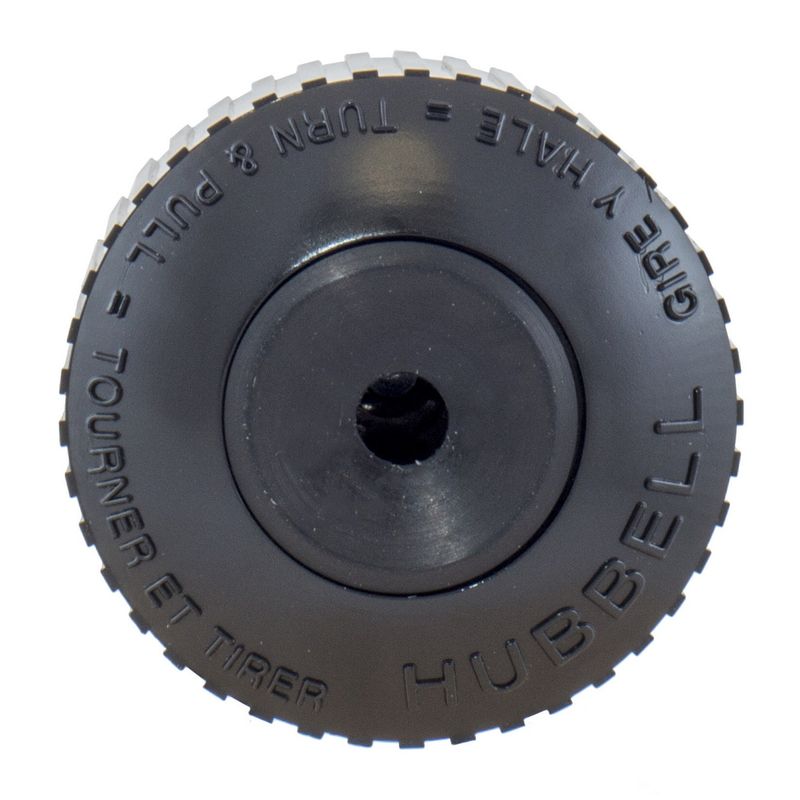

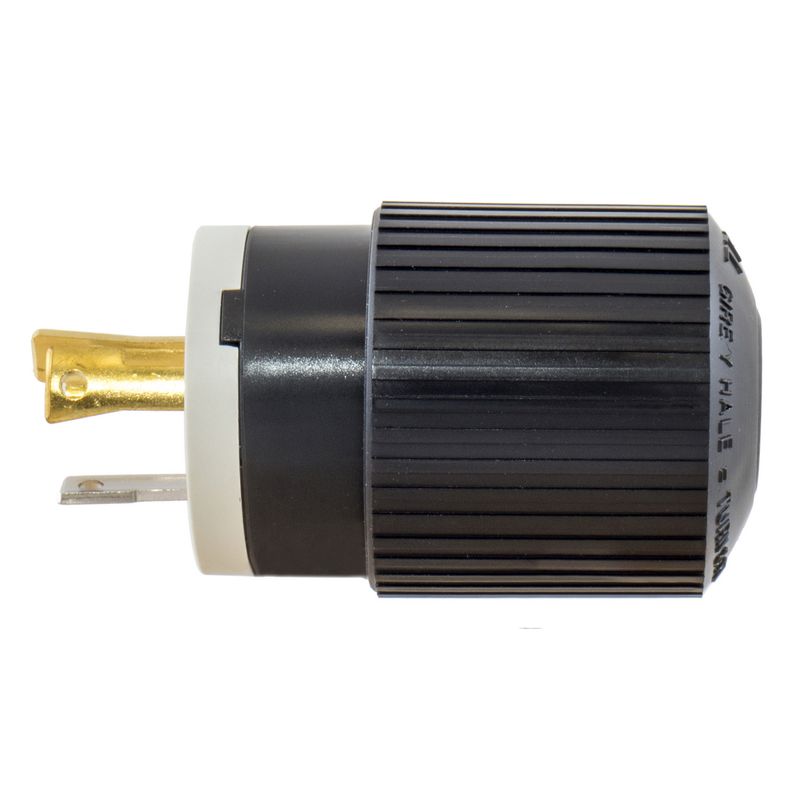

The WIRING L530P is a locking device plug with a NEMA L5-30P configuration. Rated at 125V and 30A, this plug features a nylon construction and is suitable for industrial and commercial applications. It is designed with quick-thread assembly screws and cord-grip screws that come backed-out, ready-to-wire.
- Locking Device Plug
- NEMA L5-30P Configuration
- 125 Volt Voltage Rating
Product Highlights
NEMA L5-30P configured plug with nylon construction, 125V and 30A ratings, and industrial-strength brass alloy blades.
Product Information
Standard Information
-
Brand: WIRING
-
Manufacturer Part Number: L530P
-
Country of Origin: Mexico
Technical Specifications
-
Configuration: NEMA L5-30P
-
Voltage Rating: 125 Volt
-
Current Rating: 30 Amp
-
Number of Poles: 2
-
Number of Wires: 3
-
Ground Type: Grounding
-
Material: Nylon
-
Cord Size: 0.3 to 0.95 Inch
-
Approval: UL 498, CSA C22.2
-
RoHS Compliant: True
-
Enclosure Rating: NEMA 1
-
Temperature Rating: -40 to 60 Deg C
-
Applicable Standard: Federal Specification WC-596
-
Type: Plug
-
Application Sector: Industrial
-
Product Line: Pass & Seymour
-
Locking: Yes
-
Standard: UL 498, FEDSPEC
-
UPC Number: 785007253047
-
Product Length US: 2.58 in
-
Product Width US: 2.2 in
-
cULus ListingNumber: 146159
-
cULus Listed: Yes
-
Amperage: 30 A
-
Flanged: No
-
Connector Style: Locking
-
Indoor/Outdoor: Indoor
-
NEMA Configuration Code: L5-30P
-
Terminal Accommodation: #4 AWG
-
Voltage: 125.0 V
-
Phase: 1
-
Wire Size: #12 AWG to #8 AWG
-
Dielectric Strength: Withstands 3500 Volt
-
Cord Type: All Listed Portables
-
NEMA Configuration: NEMA L5-30P
-
Contact Material: Brass
-
Brand Name: Hubbell Wiring
-
Manufacturer Part Number: L530P
-
Commodity Code: Plugs,Conn,Inlets,Outlets,Lampholdr
-
Size: Standard Sized Product
-
Amperage Rating: 30 A
-
Country of Origin: China
-
Mounting: Cord
-
Manufacturer Name: Hubbell Wiring Device-Kellems
-
Application: Industrial/Commercial
-
Height: 2.2 inch
-
Width: 2.3 inch
-
Connection: Screwed Terminal
-
Environmental Conditions: Indoor Dry Unless Protected By Additional Means
-
UNSPSC: 39121402
-
Conductor Size: 18-8 AWG
-
Sub Brand: Twist-Lock Devices
