Wiring L520r Hubw Nema L5-20r Receptacle 125 Volt

Product Description

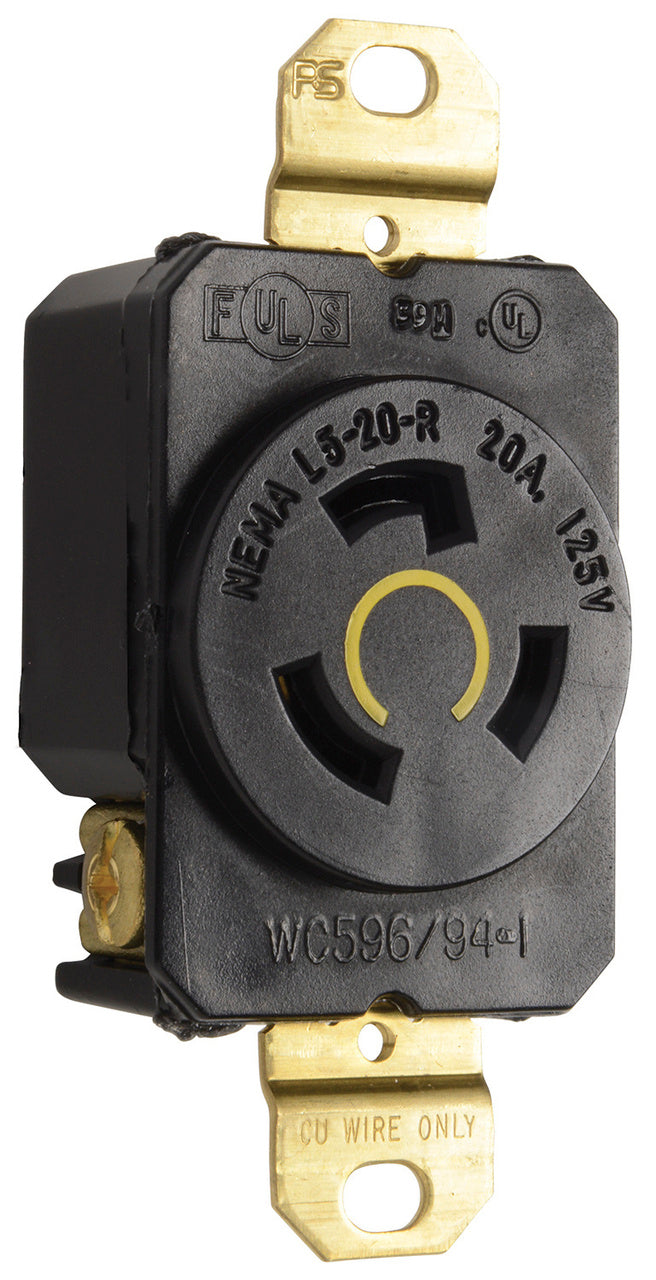

The WIRING L520R is a locking device receptacle with a NEMA L5-20R configuration. Rated at 125V and 20A, it features a grounding design with 2 poles and 3 wires. Constructed with a nylon cover and polyester base, this receptacle is suitable for industrial applications with back wiring.

• Locking Device Receptacle
• NEMA L5-20R Configuration
• UL and CSA Approved

Product Highlights

NEMA L5-20R configured locking receptacle with nylon and polyester construction. UL and CSA approved for safety.

Product Information

Standard Information

• Brand: WIRING
• Manufacturer Part Number: L520R
• Country of Origin: Mexico

Technical Specifications

• Configuration: NEMA L5-20R
• Voltage Rating: 125 Volt
• Current Rating: 20 Amp
• Number of Poles: 2
• Number of Wires: 3
• Ground Type: Grounding
• Face Outer Diameter: 1.562 Inch
• Material: Nylon (Cover), Polyester (Base)
• Approval: UL, CSA
• Wire Size: 12 to 10 AWG
• Product Length/Depth: 1.44 in
• Product Height: 3.68 in
• Product Width: 1.71 in
• Compliances: Federal Specifications Classification W-C375 RoHS Compliant
• Certifications: UL Listed CSA certified NOM
• Product Type: Locking receptacle
• Special features: Severe duty locking plug
• Type: Locking receptacle
• Amperage Rating: 20A
• Contact material: Brass
• Application: Industrial
• Device grade: Commercial
• Wiring method: Back
• Number of poles: Two-pole
• Operating temperature: -40 to 70 °C (-40 to 158 °F)
• Allowable wire size: #14-8 AWG Copper, or Copper-Clad Aluminum
• NEMA configuration: L5-20
• Design type: Single receptacle
• Face/body material: Nylon
• Receptacle type: Single
• Finish: Matte
• Application Sector: Commercial, Industrial
• Product Line: Pass & Seymour
• Brass Mounting Strap: Yes
• Wall Plate Included: No
• Number of Receptacles: 1
• Outlet Type: Locking
• Standard: UL 498
• Product Depth US: 1.19 in
• Product Height US: 2.29 in
• Product Width US: 1.61 in
• cULus ListingNumber: 140596
• cULus Listed: Yes
• Amperage: 20 A
• Connection Location: Back and Side
• Wire Connection Type: Internal Pressure Plates, Screw Terminals
• Indoor/Outdoor: Indoor
• NEMA Configuration Code: L5-20R
• Operating Temperature Max: 75 °C
• Operating Temperature Min: -40 °C
• Voltage: 125.0 V
