Wiring IG4700A Hubw Ig4700a Nema L5-15r Org Rcpt

Product Description

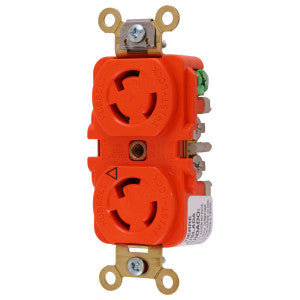

The WIRING IG4700A is a duplex locking receptacle with a L5-15R configuration. Rated at 125 VAC and 15 Ampere, it features isolated grounding and a durable nylon face. Designed for flush mounting, this receptacle meets UL 94/498 and CSA C22.2 standards, ensuring safe and reliable performance in heavy duty industrial applications.

• Locking Receptacle
• Duplex Locking
• Isolated Grounding
• Nylon Face

Product Highlights

Duplex locking receptacle with isolated grounding and nylon face, designed for flush mounting and rated at 125 VAC and 15 Ampere.

Product Information

Standard Information

• Brand: WIRING
• Manufacturer Part Number: IG4700A
• Country of Origin: US - United States

Technical Specifications

• Type: Duplex Locking
• Configuration: L5-15R
• Voltage Rating: 125 VAC
• Current Rating: 15 Ampere
• Number of Poles: 2
• Number of Wires: 3
• Ground Type: Isolated Grounding
• Material: Nylon Face
• Mounting: Flush Mount
• Approval: UL 94/498, CSA C22.2
• Standard: Listed to UL 498
• Application: Heavy Duty Industrial
• Amperage Rating: 15A
• AWG Range: 18 - 10 AWG
• Dielectric Strength: Withstands 2,000V Minimum
