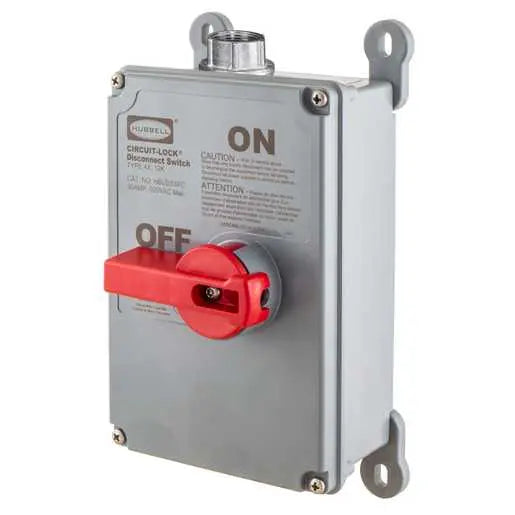

Wiring HBLDS3VFD Disconnect Sw 30A

Product Description

The WIRING HBLDS3VFD is an enclosed disconnect switch, non-fusible type, designed for variable frequency drive applications. It has a voltage rating of 120/240/480/600 VAC and a current rating of 30 Ampere. The switch features a non-metallic enclosure and is suitable for NEMA 4/4X/12/IP69 environments. It is UL and CSA approved and can operate in temperatures from -40 to 75 Deg C.

• Enclosed Disconnect Switch
• Non-Fusible Type
• Suitable for Variable Frequency Drive applications

Product Highlights

This disconnect switch is ideal for industrial applications requiring a robust and reliable disconnect solution.

Product Information

Standard Information

• Brand: WIRING
• Manufacturer Part Number: HBLDS3VFD
• Country of Origin: PL

Technical Specifications

• Type: Non-Fusible
• Voltage Rating: 600 V
• Current Rating: 30 A
• Power Rating: 1 HP at 120 VAC, 7.5 HP at 240 VAC, 15 HP at 480/600 VAC
• Circuit Configuration: 3 Phase
• Number of Poles: 3
• Enclosure Material: Non-Metallic
• Enclosure Type: NEMA 4/4X/12/IP69
• Hub Size: 3/4 Inch
• Mounting: Adjustable Feet
• Approval: UL, CSA
• Operating Temperature: -40 to 75 Deg C
• Used With: Variable Frequency Drive
• Application: Labelless
• Catalog Number: HBLDS3VFD
• Mounting Method: External fully adjustable feet
• Series: Non-Fused
• Style: Heavy Duty
• Dielectric Strength: Withstands 3000V AC minimum
• Industry Standard(s): UL Listed
• Enclosure Rating: NEMA 4X
• IP Rating: IP66
• Maximum Current: 30 A
• Maximum Operating Temperature: 75 °C
• Minimum Operating Temperature: -40 °C
• Mounting Type: Surface Mount
• Primary Type: Disconnect
• Temperature Operating Range: -40 to 75 C
• Terminal Type: Screw
• Brand: Hubbell Wiring Device-Kellems
• Actuator Type: Lever
• Frequency Rating: 60 Hz
• Horsepower: 15 hp
• Manufacturer Name: Hubbell
• Material: Composite
• Phase: 3
• Short Circuit Current Rating: 65 kA
