Wiring HBLDS3SSR Hubw Hblds3ssr 30A Sloped Disc Sw

Product Description

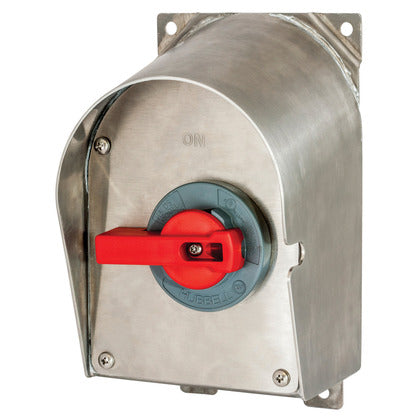

The WIRING HBLDS3SSR is an enclosure disconnect switch, non-fusible, with a voltage rating of 600 V and a current rating of 30 Ampere. It features a lockable rotary handle and a stainless steel enclosure with NEMA 4/4X/12, IP69 enclosure type. This switch is suitable for 3-Phase circuits.

• Enclosure Disconnect Switch
• Non-Fusible
• Lockable Rotary Handle

Product Highlights

This disconnect switch is designed for durability and safety, featuring a stainless steel enclosure and a lockable handle.

Product Information

Standard Information

• Brand: WIRING
• Manufacturer Part Number: HBLDS3SSR

Technical Specifications

• Type: Non-Fusible
• Voltage Rating: 600 V
• Current Rating: 30 Ampere
• Power Rating: 1 HP at 120 VAC, 7.5 HP at 240 VAC, 15 HP at 480/600 VAC
• Circuit Configuration: 3-Phase
• Number of Poles: 3
• Operator Type: Lockable Rotary Handle
• Enclosure Material: Stainless Steel
• Enclosure Type: NEMA 4/4X/12, IP69
• Hub Size: 3/4 Inch
• Approval: UL, CSA, NSF
• Temperature Rating: -40 to 75 Deg C
• Amperage Rating: 30 A
• Short Circuit Current Rating: 65 kA
• Terminal Type: Screw
• IP/NEMA Rating: NEMA 4X
• Phase: 3 ph
• Mounting Type: Threaded
